Precision T20 (7443 / 7440) Sealed Glass LED Replacement Solution

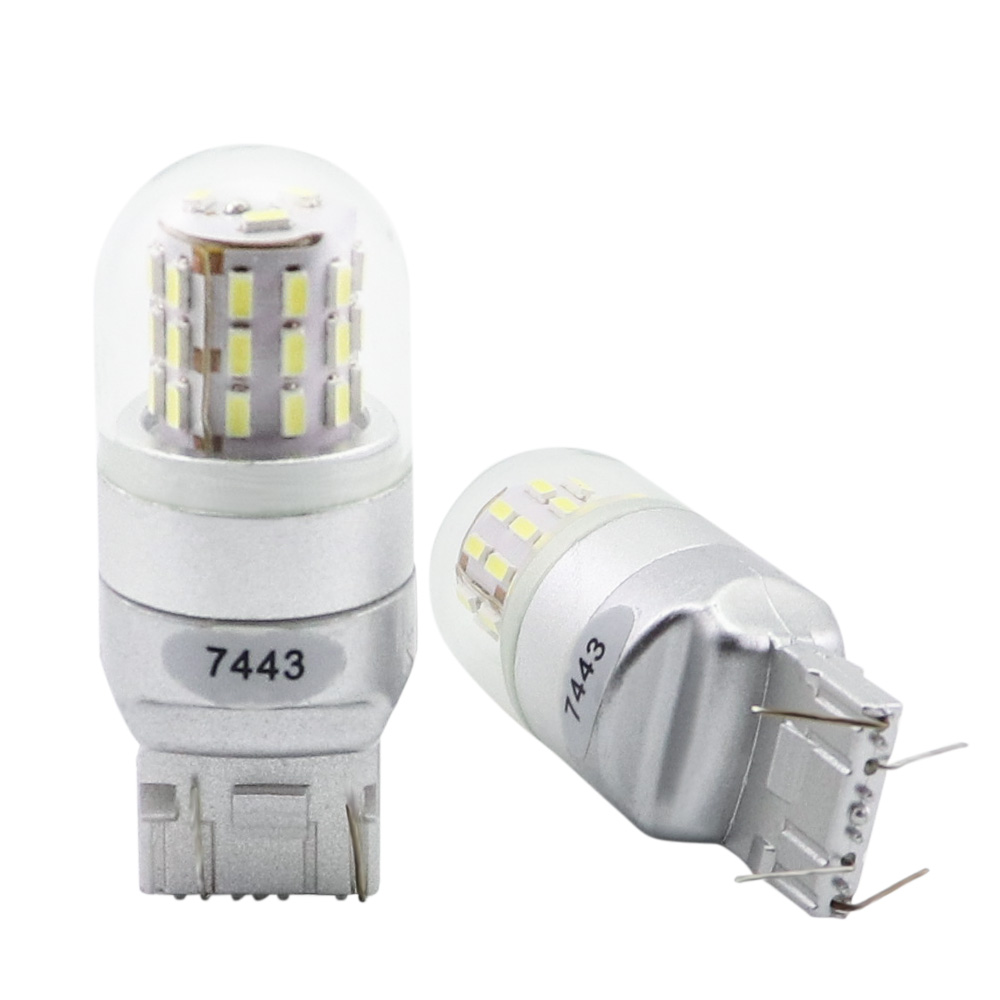

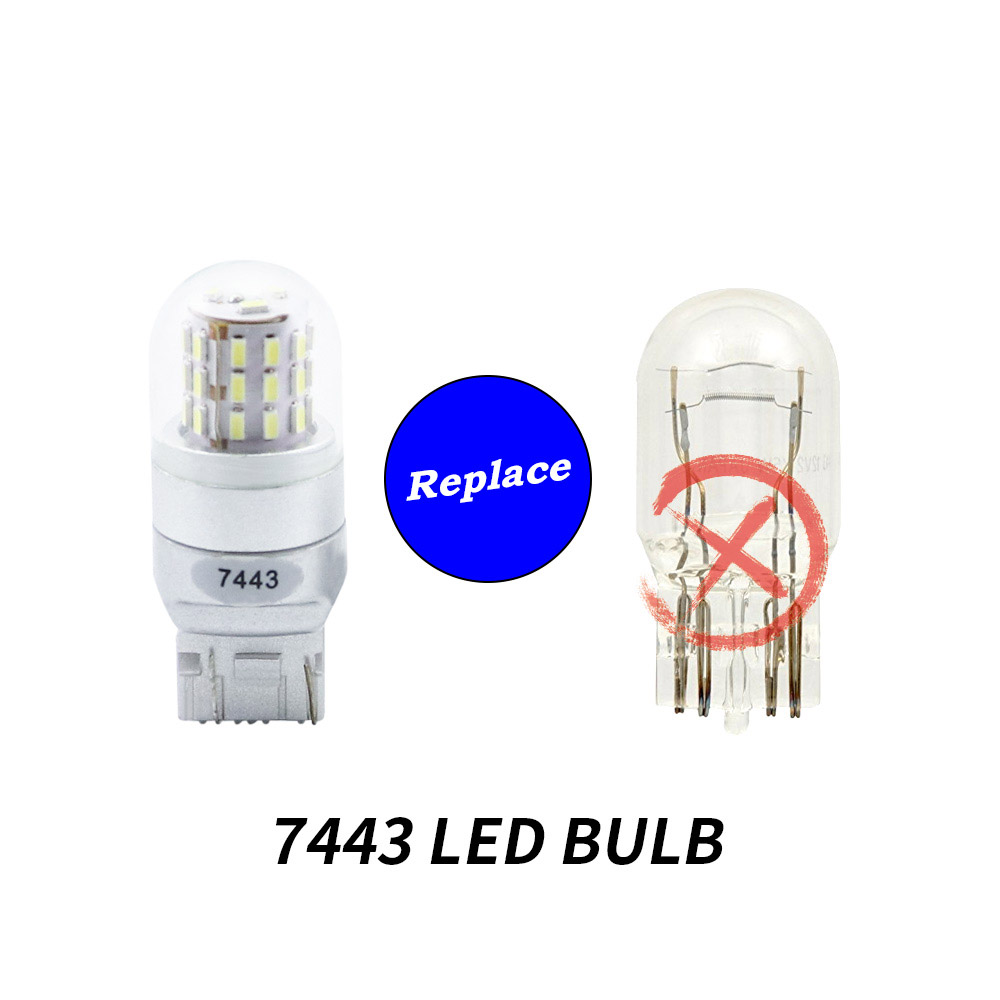

The MIDCARS T20-39L series is engineered as an industrial-grade, long-life LED replacement for traditional W21W (7440) single-filament and W21/5W (7443) dual-filament incandescent bulbs. Featuring an array of 39 high-density SMD 3014 emitters enveloped in a protective, crystal-clear glass enclosure, this lamp achieves complete 360-degree radial luminous distribution while isolating electrical and optical components from moisture, road grime, and harsh environmental contaminants.
Operating across an ultra-reliable discrete 10–30V DC operating window, the T20-39L safely accommodates voltage fluctuations common to heavy-duty 24V commercial trucks, trailers, delivery fleets, motorcycles, and 12V passenger cars. Drawing just 0.5W in low-intensity parking/running mode and 3.0W under full brake or signaling activation, it delivers 300 lumens of crisp illumination with exceptional thermal efficiency.
Key Optical & Engineering Advantages
- All-Glass Encapsulation: High-transmission glass dome protects delicate SMD emitter wire bonds from oxidation, atmospheric humidity, and mechanical contact during installation.
- 360-Degree Radial Dispersion: 39 radial SMD 3014 chips replicate the geometric filament focal point of factory incandescent bulbs, maximizing vehicle reflector housing efficiency.
- 10–30V Wide-Voltage Driver: Internal linear constant-current regulation withstands alternator charging surges and load-dump spikes across 12V and 24V platforms.
- True Dual-Intensity Functionality (7443): Distinct contrast between low-output 0.5W running mode and instantaneous 3.0W high-output brake signaling for maximum highway safety.
- Integrated Thermal Management: Solid structural aluminum base conducts thermal load away from emitter junctions, maintaining sustained lumen maintenance.
Comprehensive Technical Specifications
Full dimensional, optical, and electrical properties for global fleet operators and automotive lighting distributors:
- ECE Type Designation: W21/5W (Dual Circuit) / W21W (Single Circuit)
- ANSI Type Designation: 7443 / 7440 / 7441 / 7444 / 992
- Wedge Base Standard: IEC 7004-106 (W3x16q Dual Contact / W3x16d Single Contact)

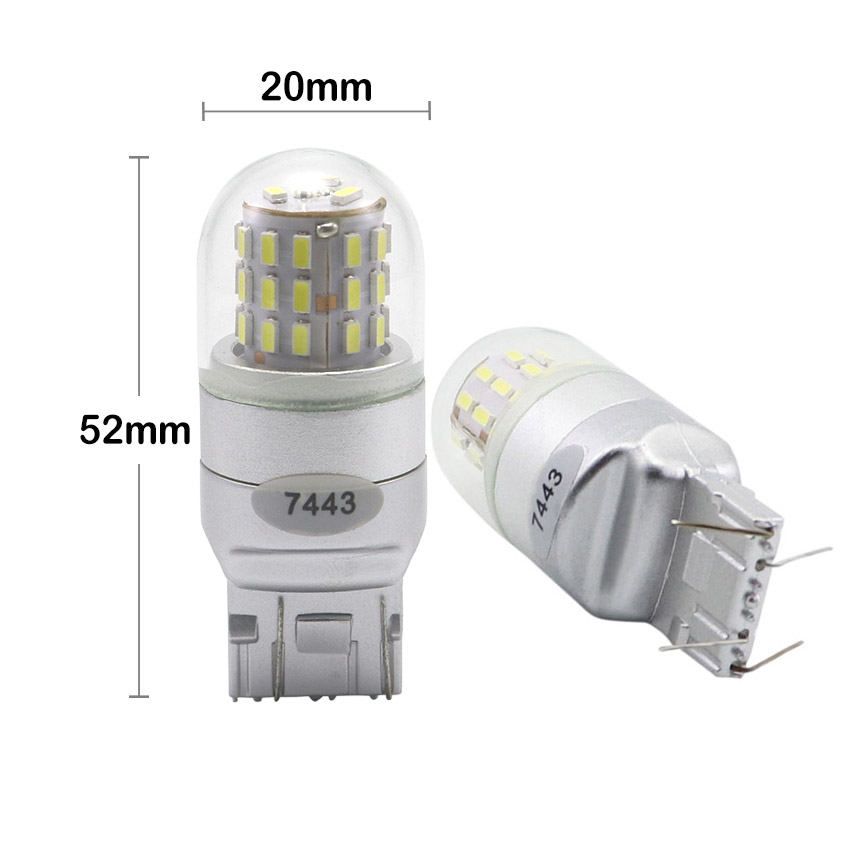

- Max Bulb Dimensions: Diameter 20mm × Overall Length 52mm
- Luminous Output (High / Low): 300 LM (Brake/Signal) / 50 LM (Tail/Parking)
- Operating Temperature Window: -40°C to +85°C
- Polarity Configuration: Standard Polarity Sensitive (Plug and Play Alignment)
Dimensional Blueprint & Multi-Angle Engineering Visuals
Exact structural dimensions and multi-angle assembly details of the T20-39L sealed glass bulb. Click any image below to view high-resolution specifications:

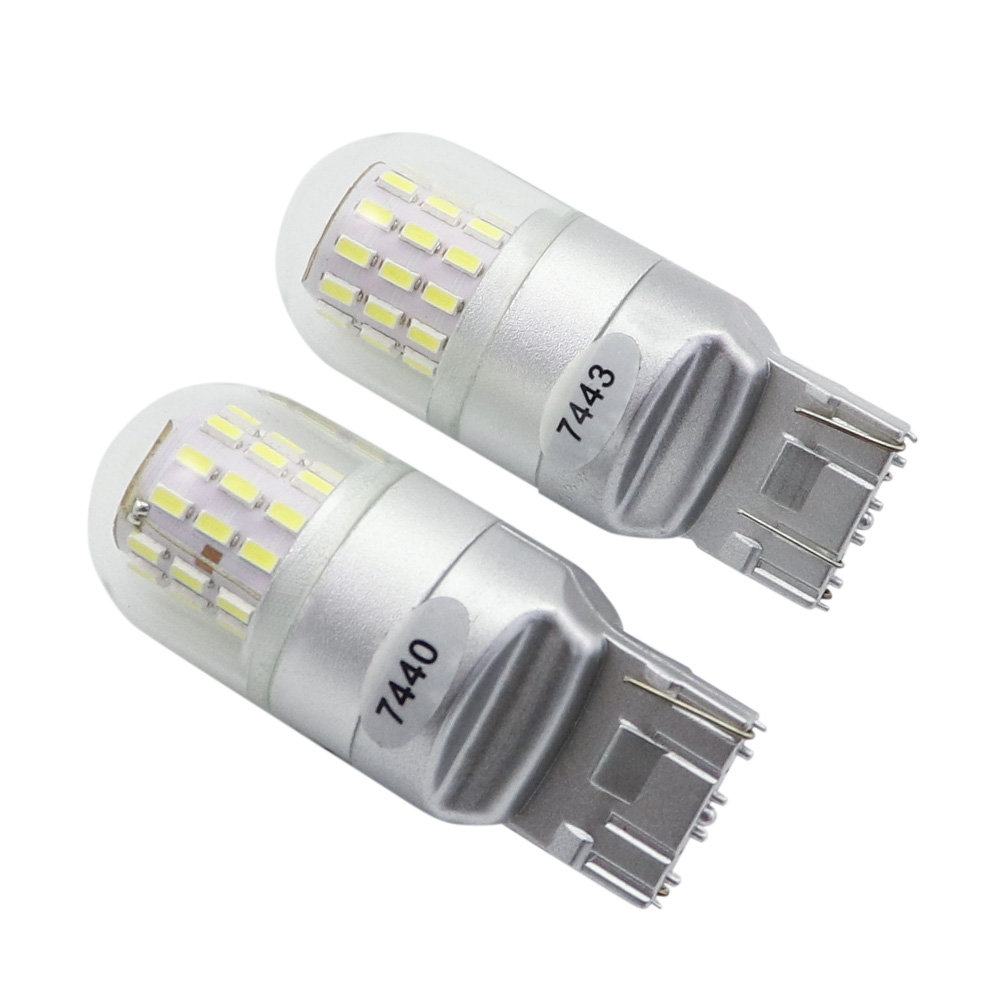

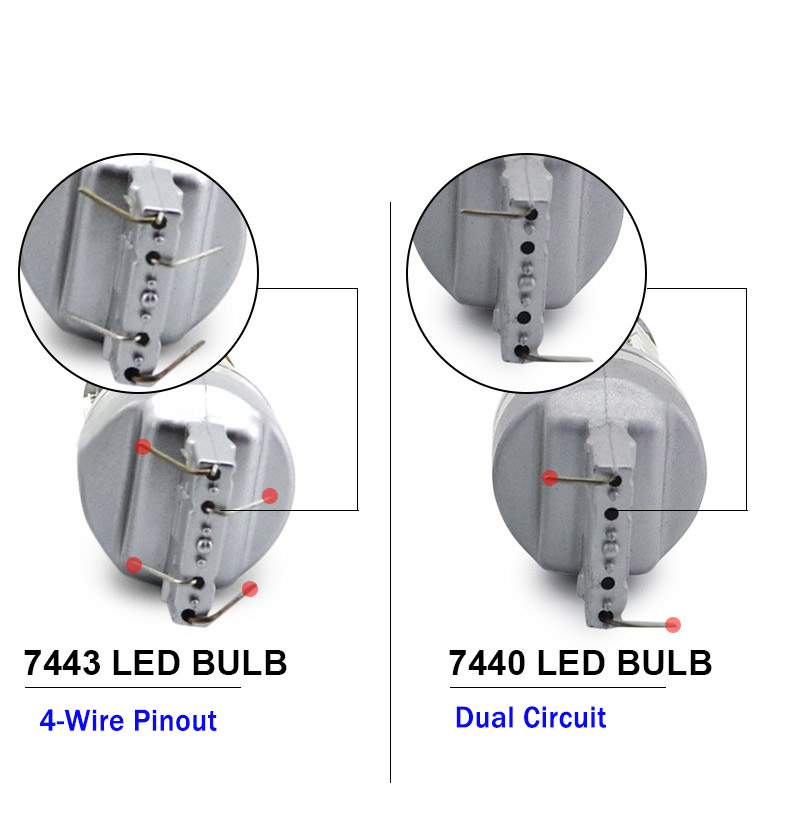

(7443 4-Wire Pinout · 7440 Dual Circuit)
B2B Manufacturing & Private-Label Packaging
MIDCARS provides complete OEM / ODM manufacturing services for automotive aftermarket brands and commercial distributors. Standard unbranded or generic catalog items are available with low evaluation minimums from 5 pairs. For customized retail packaging (color boxes, blister packs, dual-pack clam shells), production MOQ is 5,000 units. Distributors can pre-fund packaging production, which is stored securely in our Dongguan facility and drawn down across ongoing repeat replenishment orders.
The T20-39L is engineered with a high-efficiency solid-state circuit without built-in power-wasting dummy load resistors, maintaining cool operating temperatures and a true 50,000-hour LED lifespan. For vehicles equipped with sensitive CANBus bulb-out detection or flasher relays (when utilized as brake or turn signal lights), installing an external gold aluminum housed load resistor across the high-intensity circuit is recommended:
• 12V Electrical Systems: Connect a 25W 10 Ohm gold aluminum load resistor in parallel with the high-intensity 7443 / 7440 circuit.
• 24V Commercial / Heavy-Duty Vehicles: Connect a 25W 27 Ohm gold aluminum load resistor in parallel with the high-intensity circuit.
Note: Only connect load resistors across the intermittent brake or turn signal circuit; do not wire load resistors directly across continuous tail/running circuits to prevent unnecessary heat buildup.
