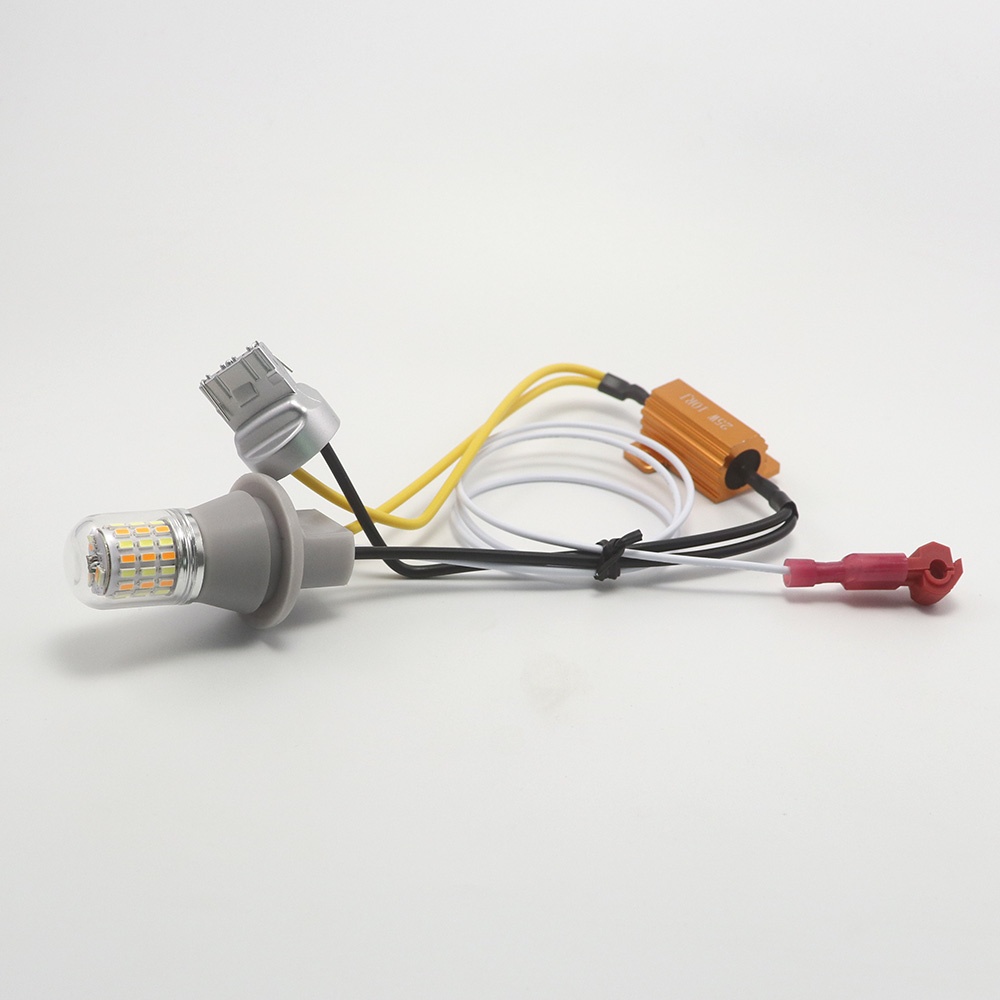

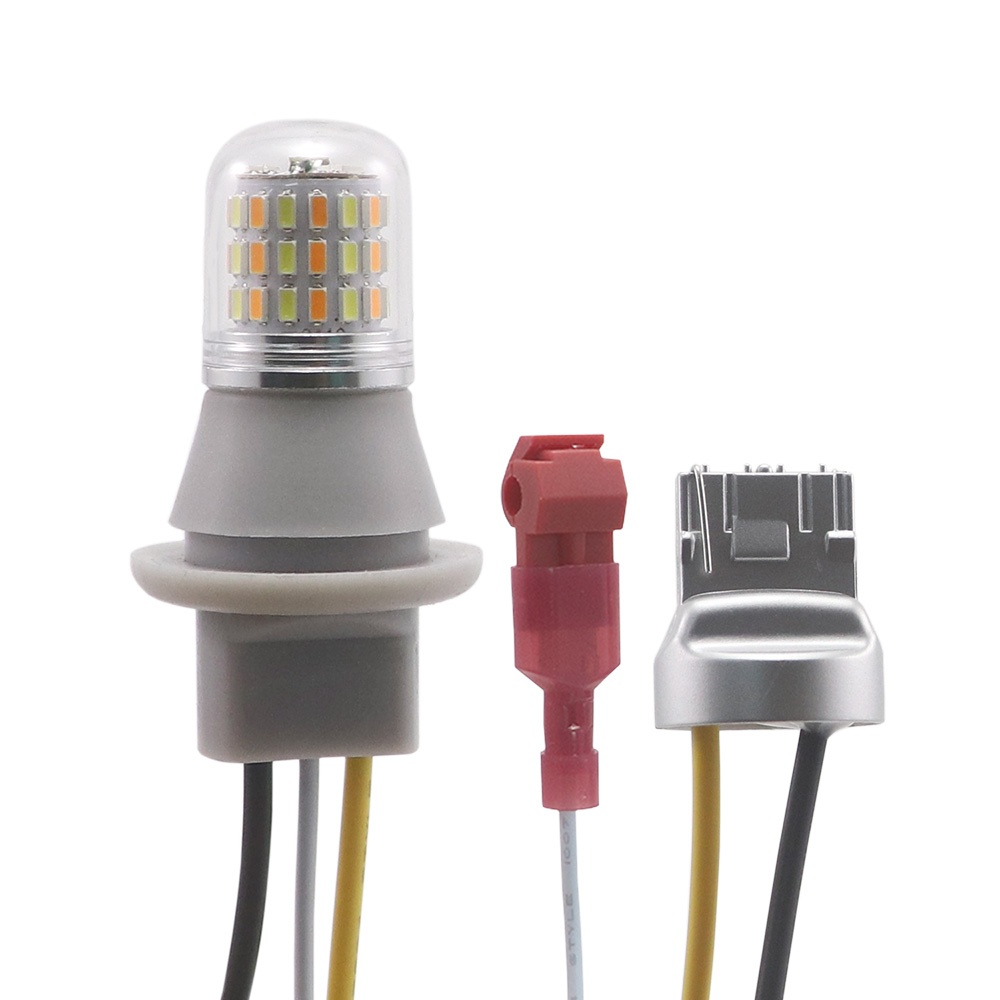

Product Overview: 7440XC-54L14-10R Switchback Dual-Color LED Bulb with Optical PC Cover
The MIDCARS® 7440XC-54L14-10R is a ruggedized, dual-mode automotive LED replacement system engineered with an impact-resistant optical polycarbonate (PC) protective shell. Tailored specifically for Japanese, American, and global vehicles utilizing T20 single-filament wedge sockets, it upgrades factory front turn signals into a synchronized Daytime Running Light (6500K Xenon White) and Turn Signal (Amber Yellow) configuration.

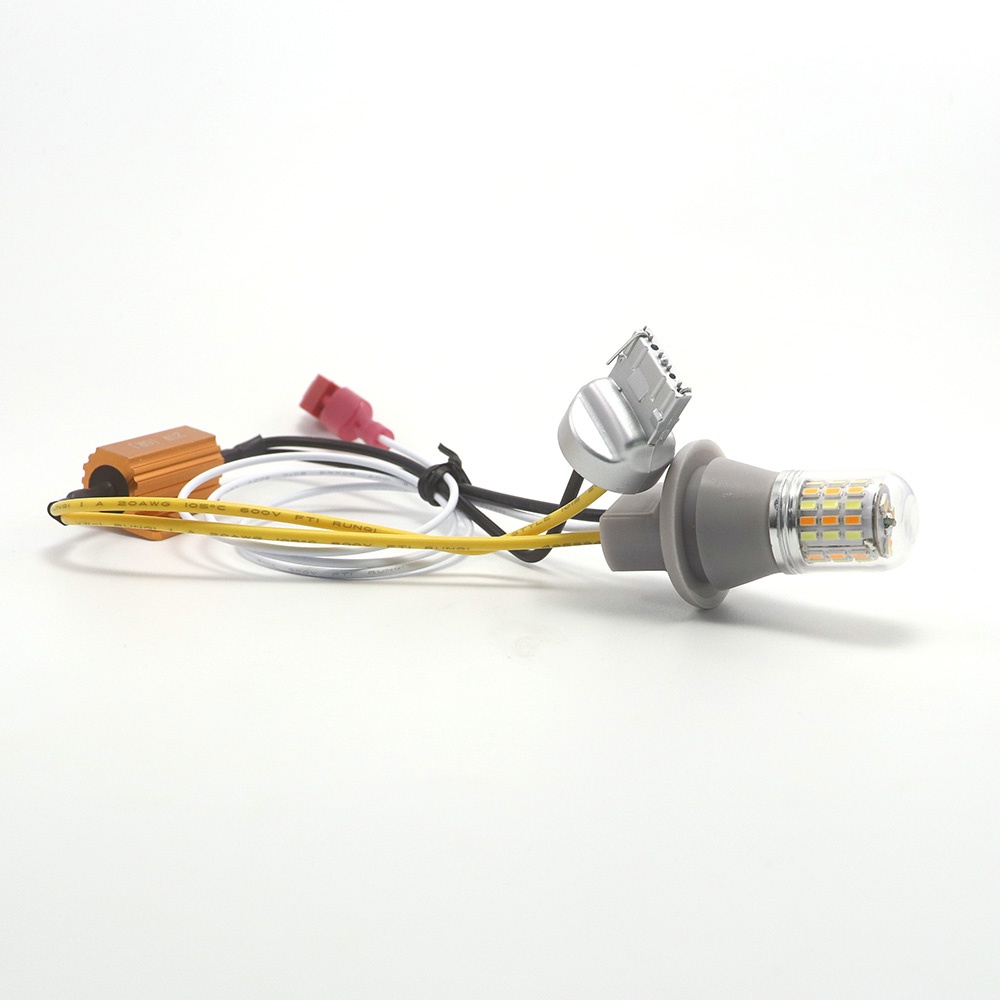

Equipped with 54 pieces of high-density SMD 3014 LEDs enclosed in an anti-UV optical PC cover, this unit offers exceptional physical protection against vibration, engine bay moisture, and road debris while delivering a clean, wide-angle 360° light projection without glare or localized hot spots.
Video Demonstration: Wiring Architecture & Switchback Lighting Effect
* Video demonstrates the live switchback sequence (White DRL automatically cuts off when Amber Turn Signal activates) and external plug-and-play wiring layout.

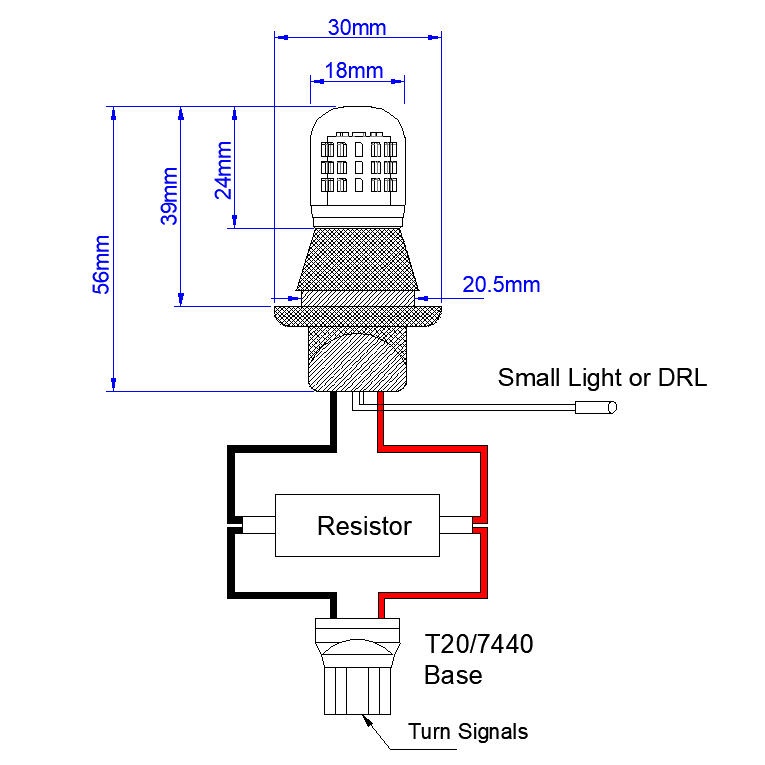

Intelligent Switchback Operating Logic & Wiring
- DRL Status (Driving): When vehicle ignition is engaged or parking lights are powered on, the 6500K Xenon White LEDs remain continuously illuminated.
- Turn Signal Status (Cornering / Lane Change): As soon as the driver hits the turn lever, the internal logic instantly cuts off White light and activates flashing 595-600nm Signal Amber.
- Auto-Reset (After Turn Complete): 1.0 second after turn signal shuts off, the bulb automatically switches back to clean 6500K White DRL mode smoothly.
⚠️ Critical Installation & Safety Guidelines for External Load Resistors

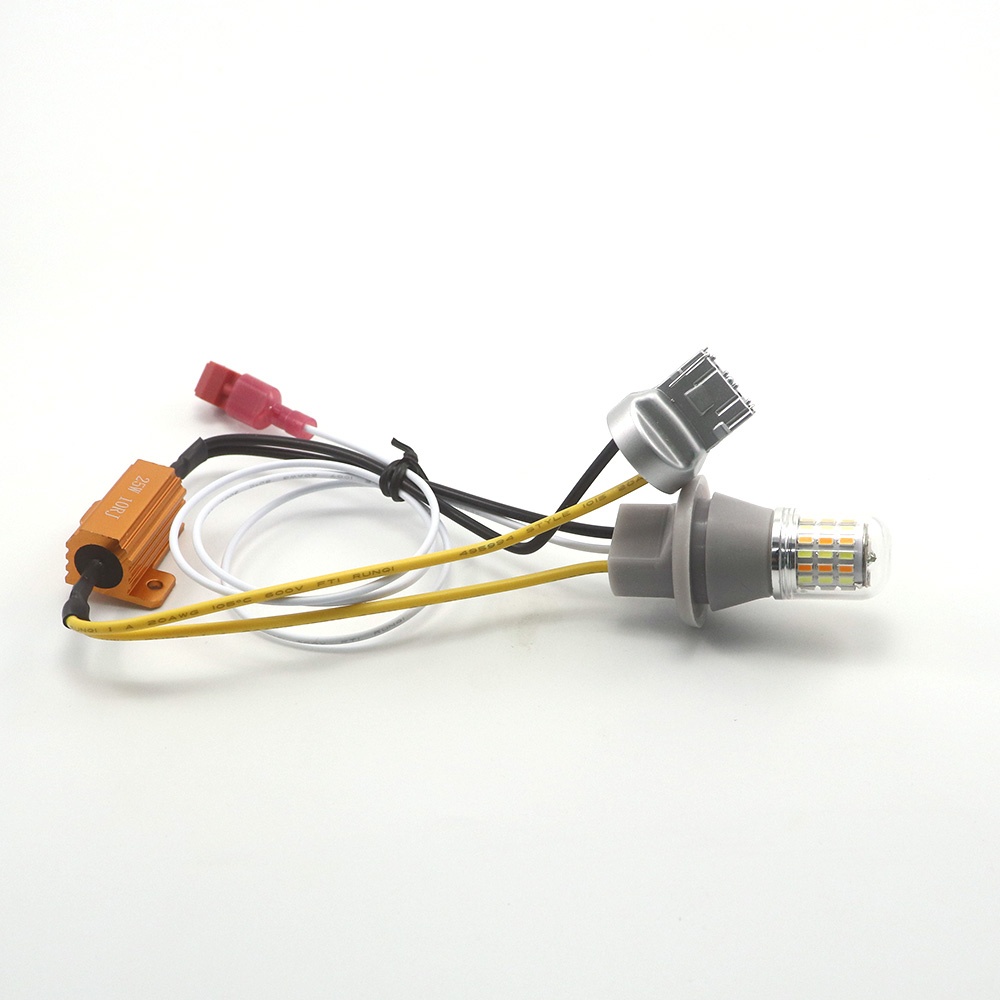

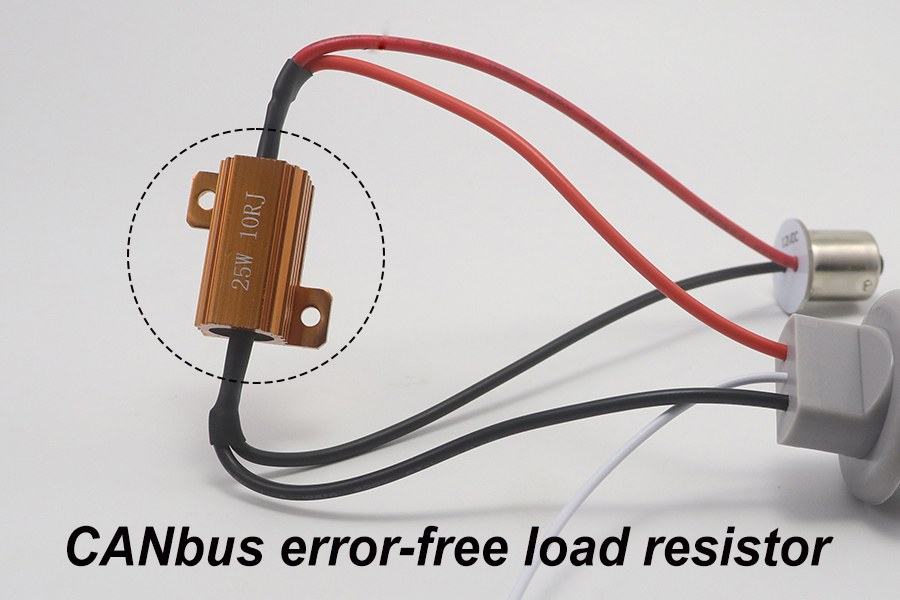

To prevent dashboard bulb-out warnings and rapid hyper-flashing on sensitive vehicle body control modules (BCM / CANBus), each bulb includes an external 10Ω 25W gold aluminum-housed load resistor. Please strictly adhere to the following safety precautions during installation:
- Operating Heat Dissipation & Voltage Rating: The external gold aluminum load resistor dissipates power to simulate incandescent bulb current draw during turn signal flashing. For 12V systems, standard 25W 10 Ohm is supplied. For 24V systems (commercial trucks/buses), a dedicated 25W 27 Ohm gold load resistor is recommended (compact 25W footprint perfectly matches intermittent turn signal duty cycles). Surface temperature rises normally during continuous flashing.
- Mandatory Metal Mounting: ALWAYS mount the golden aluminum resistor housing securely onto flat metallic automotive bodywork or metal sub-frames using screws or thermal zip-ties.
- Plastic & Wire Isolation: NEVER allow the resistor body to touch plastic parts, headlamp acrylic housings, nylon bumper clips, or automotive electrical wiring harnesses to eliminate risk of thermal deformation.

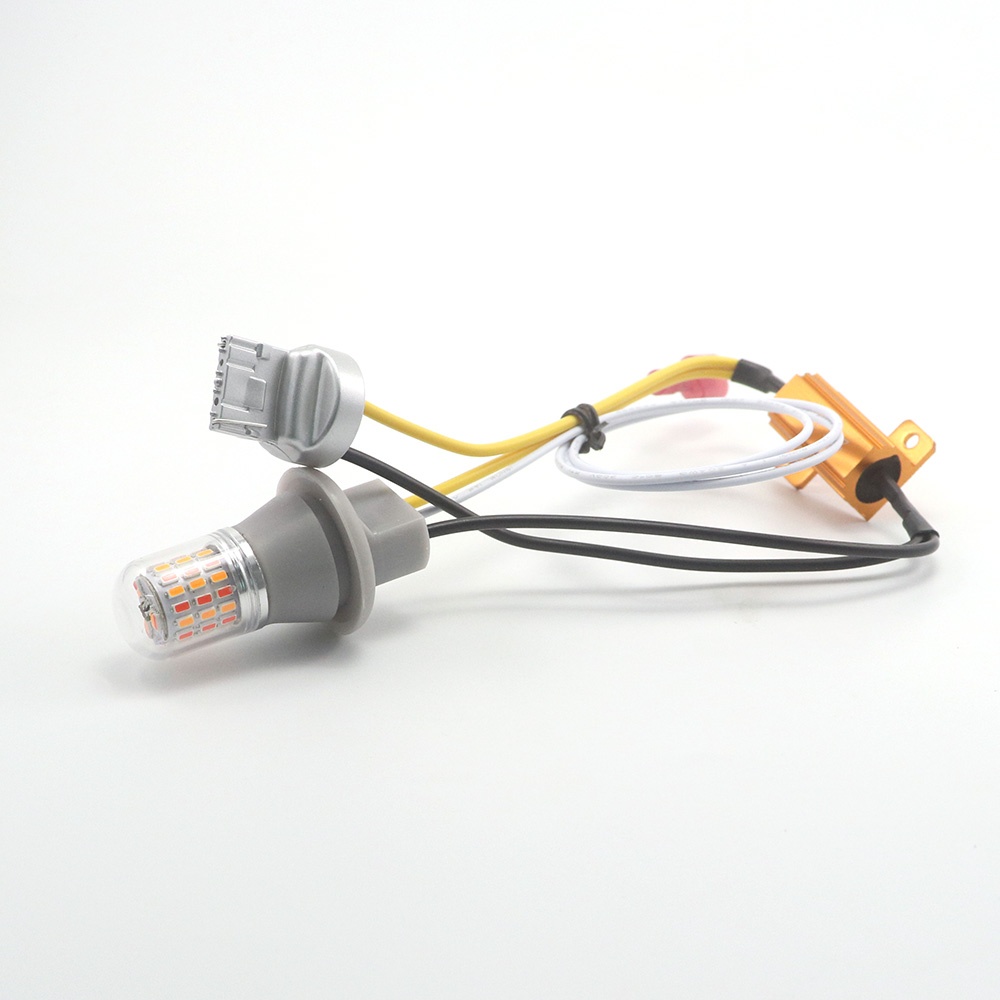

- Plug-and-Play Integration: The resistor harness connects inline between the vehicle socket and the LED bulb base. No wire splicing or factory harness cutting is required.
Primary Vehicle Application Scenarios
B2B OEM / ODM Customization Services (Direct from Factory)
As a certified Tier-1 automotive lighting manufacturer in Dongguan, China with over 10+ years of engineering expertise, MIDCARS® offers comprehensive OEM/ODM manufacturing solutions for global distributors, wholesalers, and private labels:
- Precision Laser Marking: High-resolution laser engraving of your proprietary brand name, part numbering, and certification logos (CE / RoHS / E-Mark) directly onto the aluminum lamp body.
- Custom Retail Packaging: Design and production of branded magnetic retail gift boxes, dual blister packaging, anti-static bulk polybags, or customized master cartons with GTIN/UPC barcoding.
- Electrical & Function Tailoring: Customization of decoder resistance values (6Ω, 8Ω, 10Ω), internal IC delay cutoff timing, custom wire lengths, and waterproof connector types.
- Agile Sampling: 2-3 days for standard stock evaluation samples; 5-7 days for customized branded pre-production samples.
