Home > Products > Miniature & Indicator LED Bulbs > Frosted BA9s T4W LED Bulb - Short 25mm Indicator Light

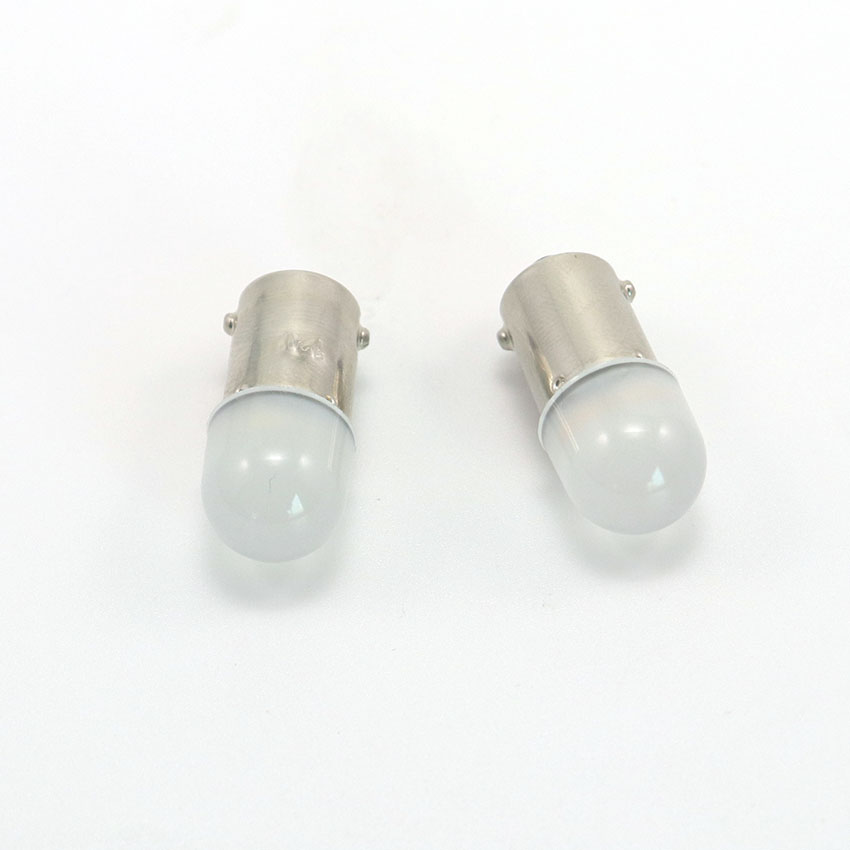

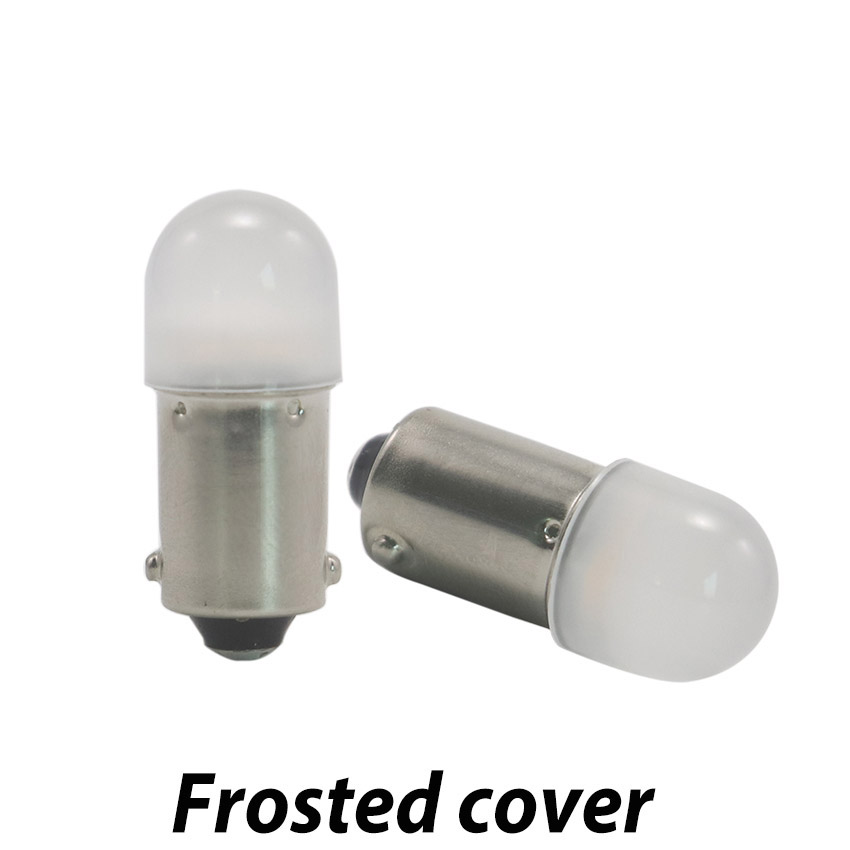

Frosted BA9s T4W LED Bulb - Ultra-Short 25mm Diffused Lens Indicator Light

Ultra-short 25mm frosted BA9s miniature bayonet LED indicator bulb with an anti-glare diffuser lens. Engineered with dual-face SMD 2835 LEDs for smooth, evenly diffused 360° illumination in tight control panels and instrument gauges. Replaces T2W & T4W.
Product Model:T4W-2LFF
Socket / Base:BA9s (Miniature Bayonet 9mm) · Optional E10 Screw Base
Bulb Dimensions:Outer Diameter 10.0mm × Overall Length 25.0mm (Ultra-Short)
Operating Voltage:Discrete Voltage Versions: 3.7V / 6.3V / 12V / 24V / 28V / 36V / 48V / 60V DC · 110V/220V AC
Power Rating:0.3W - 0.7W (Energy Saving)
Luminous Flux:25 - 65 Lumens (Diffused Glow)
Color Output:Pure White 6500K · Warm White 3000K · Amber · Red · Green · Blue
LED Emitters:2x High-Efficiency SMD 2835 LEDs
Enclosure / Lens:Frosted Polycarbonate Lens (Anti-Glare Diffuser)
Quality & Warranty:CE (EMC Compliant), RoHS | 2 Years Factory Warranty
Factory MOQ:Flexible MOQ: Standard stock configurations supported from 5 pairs; full custom packaging MOQ starts at 5,000 pcs.
  • Product Details

Frosted BA9s T4W LED Bulb: Ultra-Short 25mm with Anti-Glare Diffused Optics

In high-density industrial control consoles, avionics cockpits, laboratory equipment, and vintage automotive instrument clusters, direct glare from pinpoint LED emitters can create distracting optical hotspots and eye fatigue. The MIDCARS T4W-2LFF addresses this visual demand by incorporating an optical-grade frosted polycarbonate diffuser lens over dual-face SMD 2835 LEDs. The milky frosted enclosure effectively diffuses raw lumens into a smooth, evenly diffused 360-degree radial glow, ensuring flawless dial legibility and clean, uniform illumination.

Engineered with an ultra-short overall length of only 23.0mm to 25.0mm and an outer diameter of 10.0mm, the T4W-2LFF effortlessly installs into shallow instrument housings, recessed pushbutton switches, and compact pilot sockets where standard 28mm to 30mm bulbs cannot fit. Operating at an energy-efficient 0.3W to 0.7W, it runs with minimal thermal footprint, preventing heat damage to delicate plastic gauge housings and colored indicator lenses.

Precision Dimensional Specifications & Electrical Parameters

Manufactured under strict ISO 9001 factory quality standards in Dongguan, every batch of T4W-2LFF indicator bulbs undergoes automated optical color consistency testing and electrical burn-in verification:

Electrical & Optical Parameters

Specification ParameterEngineering Data & Standards
Bulb Form FactorT2-7/8 / T3-1/4 Compact Miniature Tubular (D 10mm x L 23-25mm)

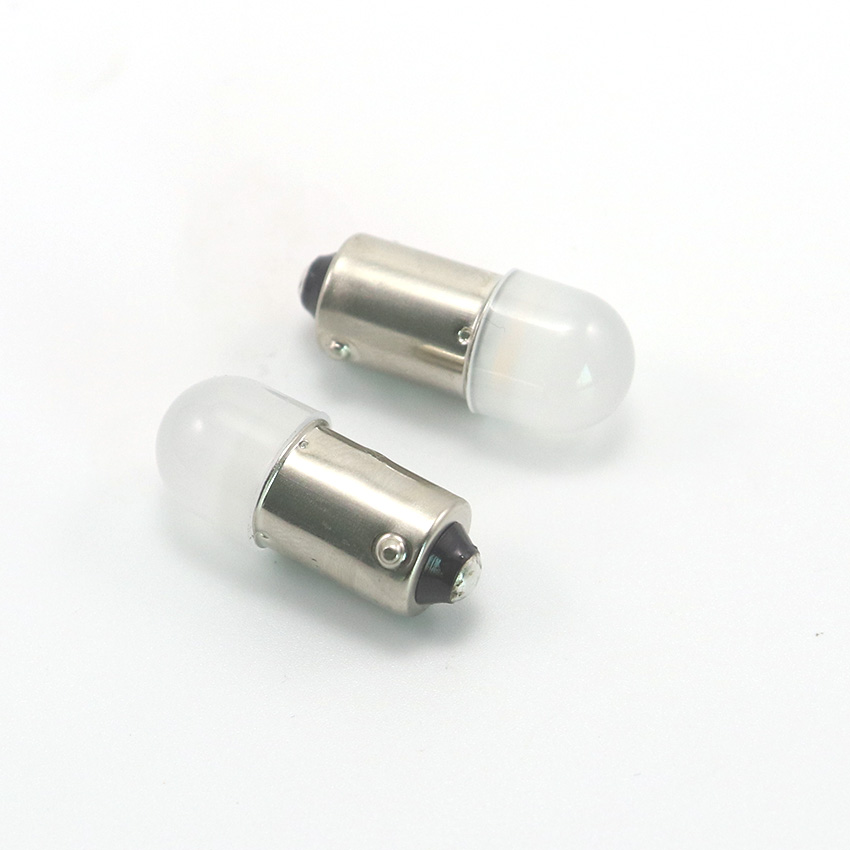

Base TypeBA9s (IEC 7004-14, 9mm Miniature Bayonet, Single Base Contact)
Voltage Options (DC)3.7V, 6.3V, 12V, 24V, 28V, 36V, 48V, 60V DC Discrete Driver Architectures
Voltage Options (AC)100-130V AC / 200-240V AC Integrated Bridge Circuit (Custom Available)
Power Consumption0.3W - 0.7W (Energy Saving Solid-State Illumination)
Luminous Output25 - 65 Lumens (Soft Glare-Free Diffused Glow)
Optics & EnclosureFrosted Polycarbonate Diffuser Lens (Anti-Glare Coating)
Operating Temperature-40°C to +85°C (-40°F to +185°F) Industrial Operating Range
Lifespan Rating> 50,000 Operating Hours (L70 Standard)

Mechanical & Base Engineering (BA9s / E10)

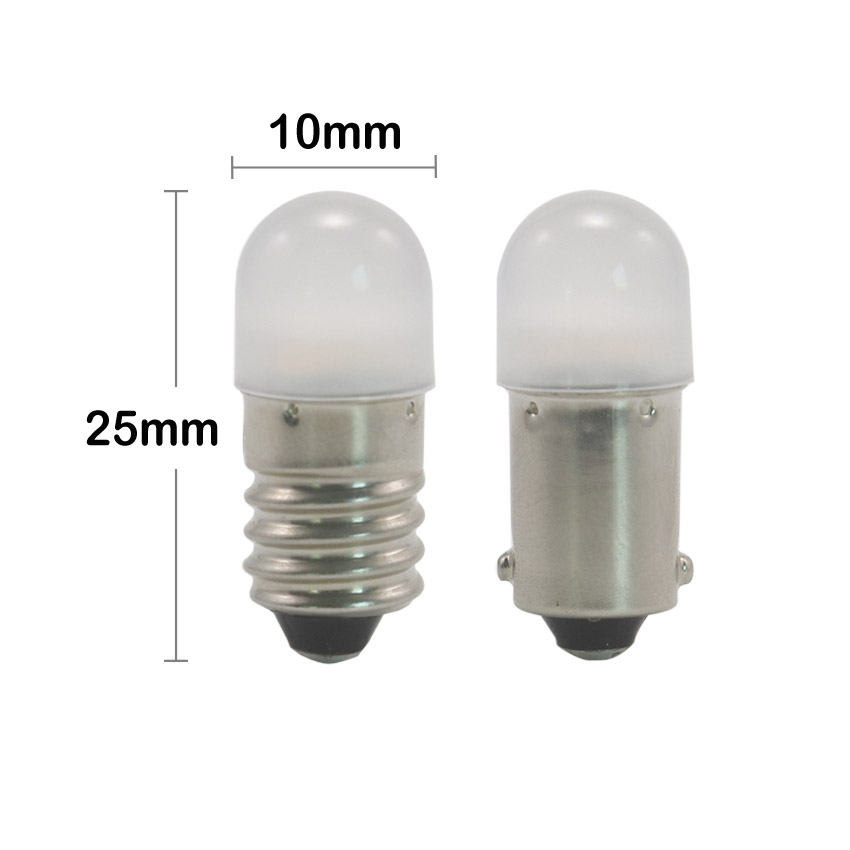

Compact Frosted BA9s T4W LED Bulb Engineering Blueprint D10mm by L25mm

Precision Dimensional Blueprint (10mm Diameter x 25mm Length) (Click to enlarge)

Frequently Asked Questions

What is the primary advantage of the frosted lens on the T4W-2LFF compared to the clear lens T4W-2LCF?
The frosted polycarbonate diffuser lens on the T4W-2LFF softens the raw LED light output and eliminates pinpoint hotspot glare, creating a perfectly smooth, 100% uniform 360-degree radial glow. This makes it ideal for directly visible instrument clusters, vintage dashboard dials, and luxury status panels where eye comfort and uniform icon illumination are essential, whereas clear lens models prioritize maximum punchy lumen output through colored external jewel lenses.
Does the 23-25mm ultra-short length fit shallow European and vintage instrument clusters?
Yes. Conventional BA9s bulbs typically measure 28mm to 30mm overall length, often bottoming out or pressing against shallow acrylic gauge dials. The T4W-2LFF measures only 23.0mm to 25.0mm in total length (with a standard 10.0mm diameter), guaranteeing exact drop-in fitment into space-constrained housings without physical interference.

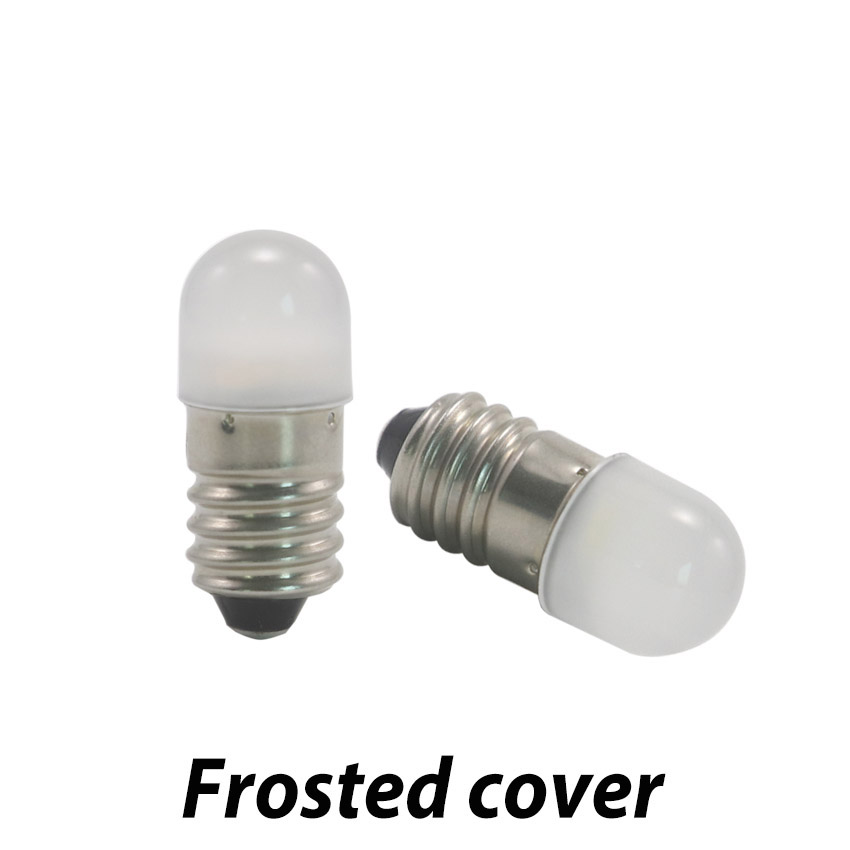

Can this bulb be supplied with an E10 miniature screw base instead of BA9s?

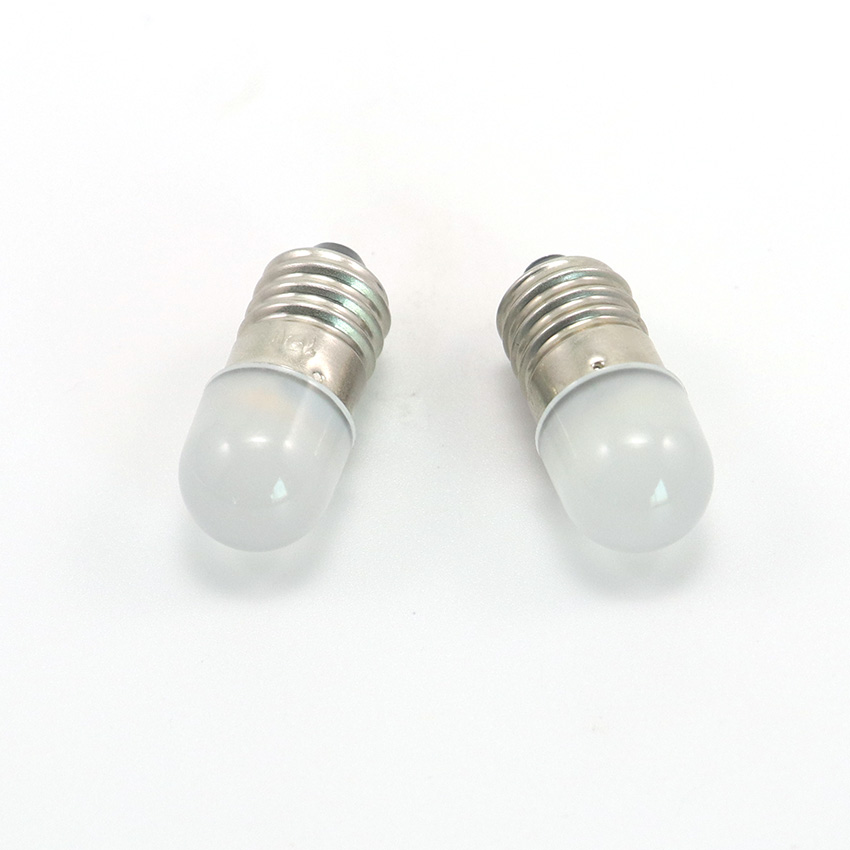

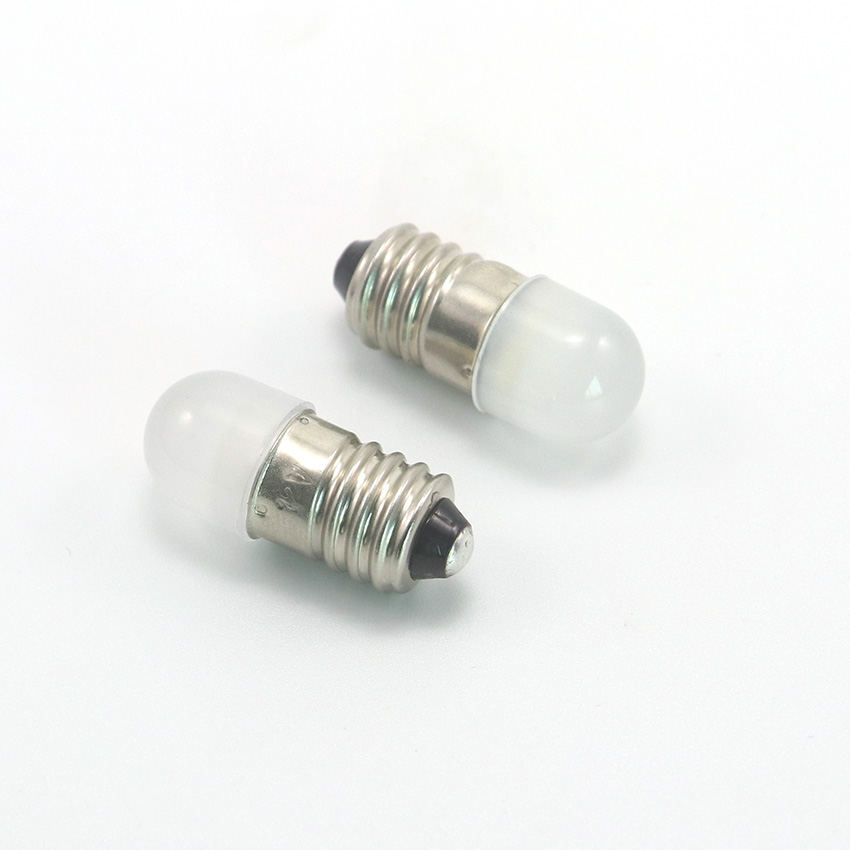

Yes. In addition to the standard 9mm miniature bayonet (BA9s) brass base, we offer the identical frosted optical head mounted to an E10 miniature Edison screw base, sharing the same wide selection of discrete voltage drivers.
What are the MOQ and OEM customization options for panel builders and distributors?
Our official factory policy supports standard stock configurations from 5 pairs. For private labeling, customized blister cards, bulk ESD industrial trays, or tailored voltage circuits (e.g., custom 3.7V/6.3V/12V/24V/28V/36V/48V/60V/110V/230V DC/AC), our custom packaging MOQ starts at 2,500 pairs.
