E10 LED Indicator Bulb - Mini Screw Base, 360° Dual-Face (BA9S Optional)

Product Overview: E10-4L LED Indicator Bulb

The MIDCARS E10-4L is a miniature E10 screw-base LED bulb with a dual-face optical array — four high-CRI SMD 2835 LEDs (two per side) deliver even, shadow-free 360° illumination from a compact clear PC tube.

It is a direct energy-saving replacement for 2W / 3W / 5W E10 incandescent bulbs, widely used as panel indicator lights, instrument / dashboard lights, flashlights, decorative string lights, toy lights and model lights. Available from 3.7V to 240V with 6500K white, 3000K warm white and 4500K neutral white options.

Precision Dimensions

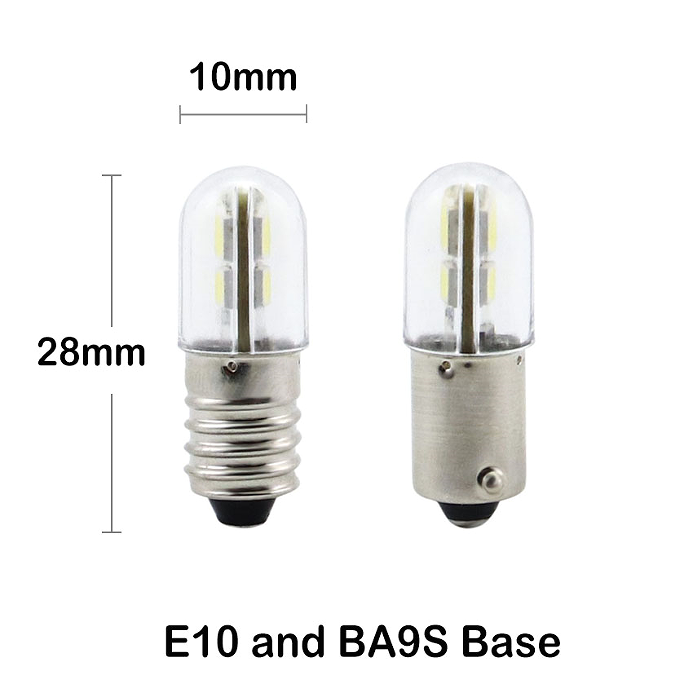

Compact E10 miniature screw base & optional BA9S miniature bayonet base — both featuring total length 28mm, bulb diameter 10mm. Click drawings to zoom:

E10 Screw Base Blueprint

Φ10mm × L28mm Miniature Edison Screw (MES) Sockets

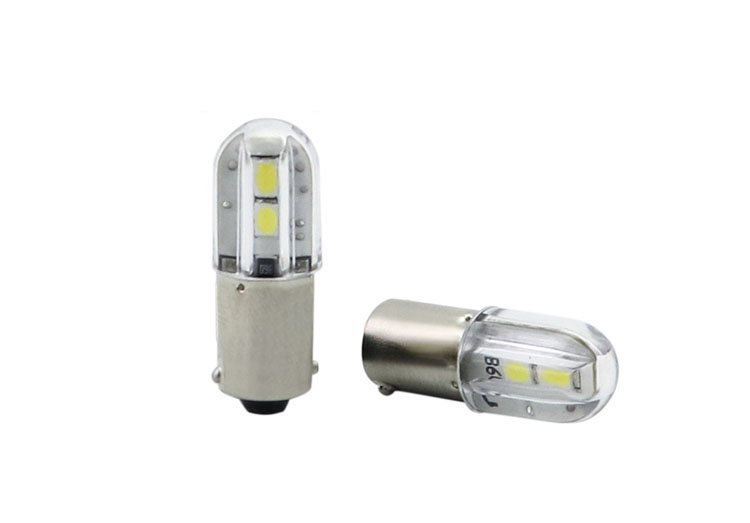

BA9S Bayonet Base Blueprint

Φ10mm × L28mm Miniature Bayonet Single Contact (MCC) Sockets

Real Illumination & Light Output

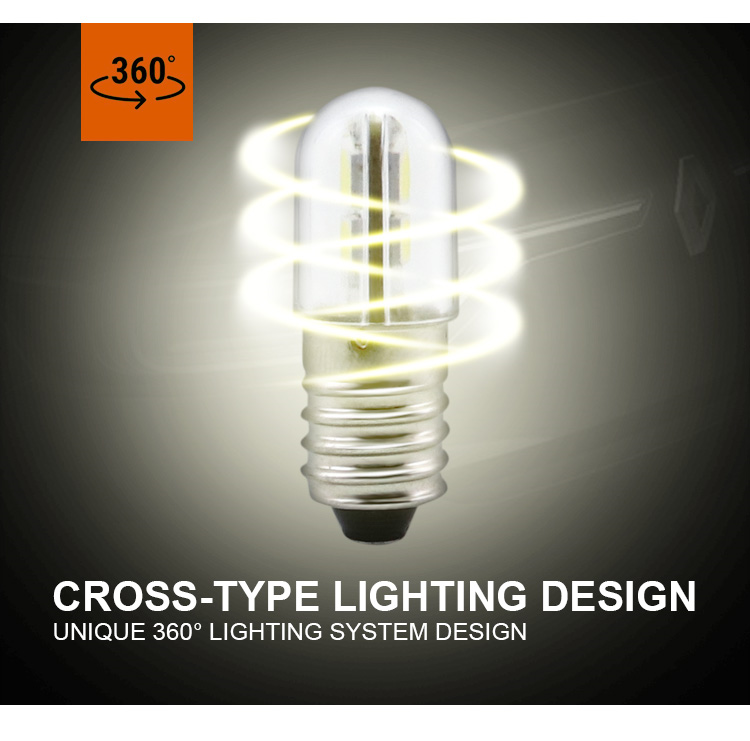

Double-sided SMD 2835 LEDs deliver even 360° illumination without dark spots — click any image to zoom:

Typical Applications

• Panel / equipment indicator lights
• Instrument / dashboard lights
• Flashlights & torches
• Decorative & string lights
• Toy & model / hobby lights
