Home > Products > Miniature & Indicator LED Bulbs > Compact BA9s T4W LED Bulb - Short 25mm Indicator Light

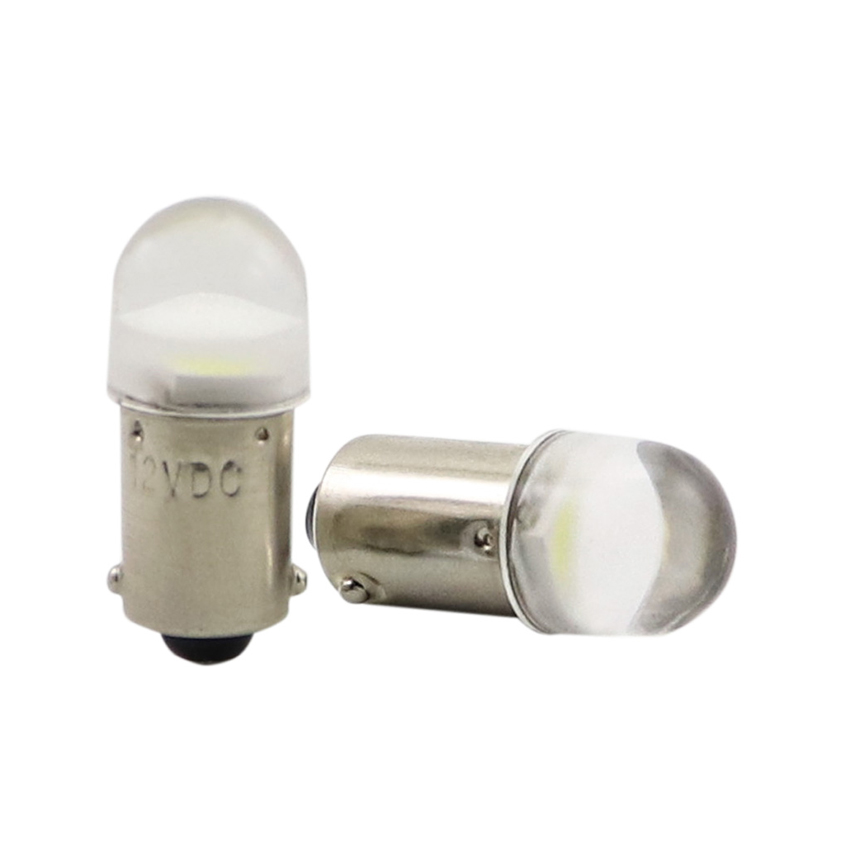

Compact BA9s T4W LED Bulb - Ultra-Short 25mm Miniature Bayonet Indicator Light

Ultra-short 25mm compact BA9s miniature bayonet LED indicator bulb with a protective clear lens. Engineered with dual-face SMD 2835 LEDs for crisp, direct 360° illumination in space-constrained industrial consoles and gauges. Replaces T2W & T4W.
Product Model:T4W-2LCF
Socket / BaseBA9s (Miniature Bayonet 9mm)
Optional: E10 Screw Base Available
Operating VoltageDiscrete Voltage Versions (each bulb rated for one voltage):
3.7V / 6.3V / 12V / 24V / 28V / 36V / 48V / 60V DC · 100-130V AC · 200-240V AC
Power Rating0.3W - 0.7W (Energy Saving)
Luminous Flux30 - 70 Lumens
Color OutputPure White 6500K | Warm White 3000K | Neutral 4500K
Amber (586-595nm) | Red (620-625nm) | Green (520-525nm) | Blue (465-470nm)
LED Emitters2x High-Efficiency SMD 2835 LEDs
Enclosure / LensClear PC Lens (Frosted Lens Optional)

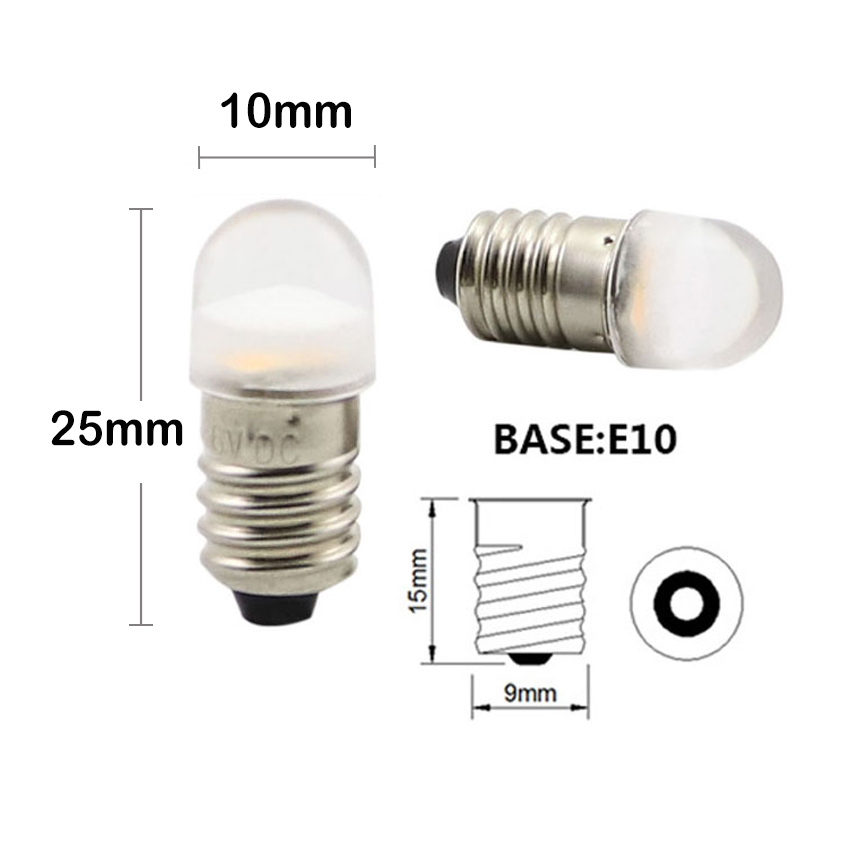

Bulb DimensionsD 10.0mm × L 23.0 - 25.0mm (Ultra-Short)
Certification & WarrantyCE (EMC Compliant), RoHS | 2-Year Factory Warranty
Factory MOQ5 pairs standard; 5,000 pcs OEM custom packaging
  • Product Details

Compact BA9s T4W LED Bulb: Ultra-Short 25mm Engineered for Tight-Space Instrumentation

In high-density industrial control panels, aviation instrument clusters, telecommunication signal units, and vintage automotive gauge housings, standard 28mm to 30mm miniature bayonet bulbs frequently cause physical interference with front lenses, shallow reflectors, or adjacent wiring harnesses. The MIDCARS T4W-2LCF solves this critical packaging challenge by delivering an ultra-short overall length of only 23.0mm to 25.0mm with an outer diameter of 10.0mm, providing seamless drop-in fitment into space-constrained sockets without compromising optical visibility.

Featuring a dual-face optical array powered by two high-efficiency SMD 2835 LEDs, the bulb emits a wide 360-degree radial beam through an impact-resistant clear polycarbonate lens (with frosted anti-glare lens available). Operating at an ultra-low power consumption of 0.3W to 0.7W, it runs significantly cooler than incandescent filaments, permanently eliminating thermal degradation of colored plastic indicator caps and acrylic gauge lenses.

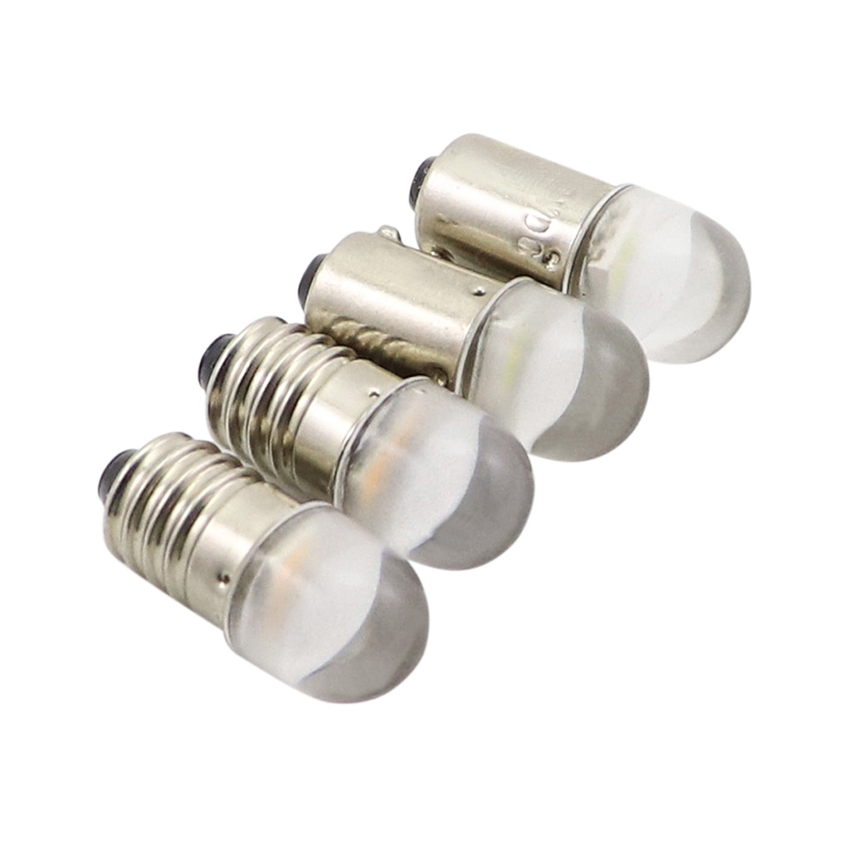

Dual-face SMD 2835 emitter layout on ultra-short 25mm BA9s LED indicator bulb

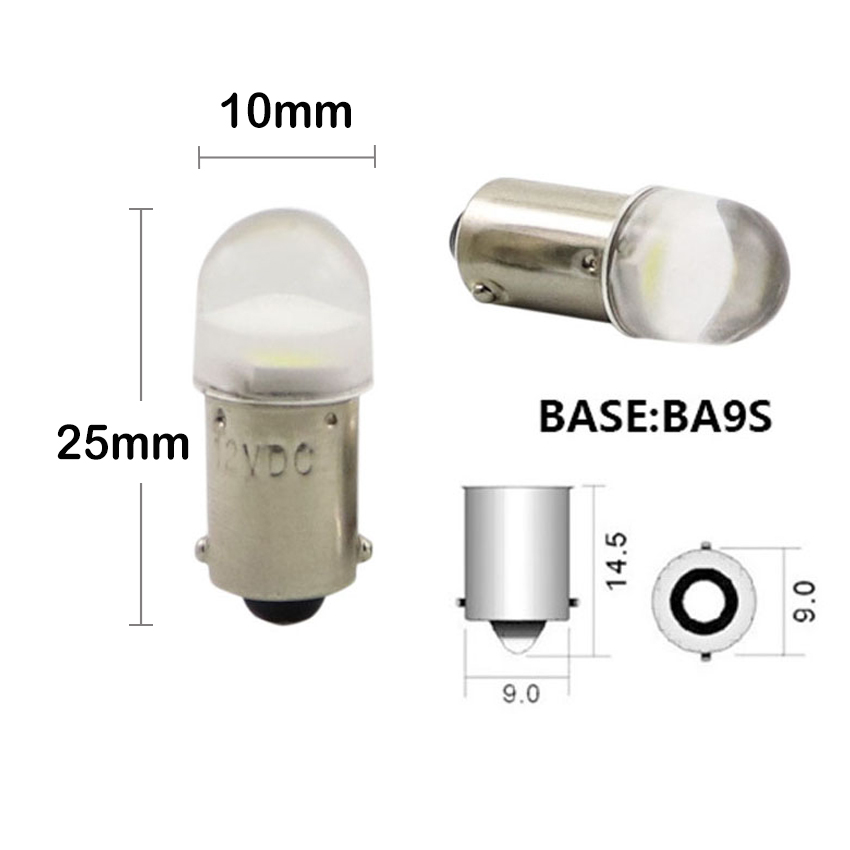

Engineering dimensional blueprint of ultra-short 25mm BA9s T4W miniature LED indicator

Precision Dimensional Specifications & Electrical Parameters

Every batch of T4W-2LCF indicator bulbs undergoes 100% automated electrical characterization and dimensional gauging at our Dongguan manufacturing facility to guarantee strict mechanical compliance with international miniature bayonet standards:

Specification ParameterEngineering Data & Standards
Bulb Form FactorT2-7/8 / T3-1/4 Compact Miniature Tubular (D 10mm x L 23-25mm)
Base TypeBA9s (IEC 7004-14, 9mm Miniature Bayonet, Single Base Contact)
Voltage Options (DC)3.7V, 6.3V, 12V, 24V, 36V, 48V, 60V DC Discrete Driver Architectures
Voltage Options (AC)100-130V AC / 200-240V AC Integrated Bridge Circuit (Custom Available)
Power Consumption0.3W - 0.7W (85%+ Energy Reduction vs 2W-4W Incandescent Filaments)
Luminous Output30 - 70 Lumens (Optimized for Day/Night Legibility without Glare)
Optics & EnclosureClear Impact-Resistant Polycarbonate Lens (Optional Frosted Diffuser)
Operating Temperature-40°C to +85°C (-40°F to +185°F) Industrial Operating Range
Lifespan Rating> 50,000 Operating Hours (L70 Standard)

Application Scenarios Across Industrial & Automotive Environments

Due to its miniature form factor, comprehensive discrete voltage range, and solid-state vibration resistance, the T4W-2LCF serves a broad range of mission-critical signaling applications:

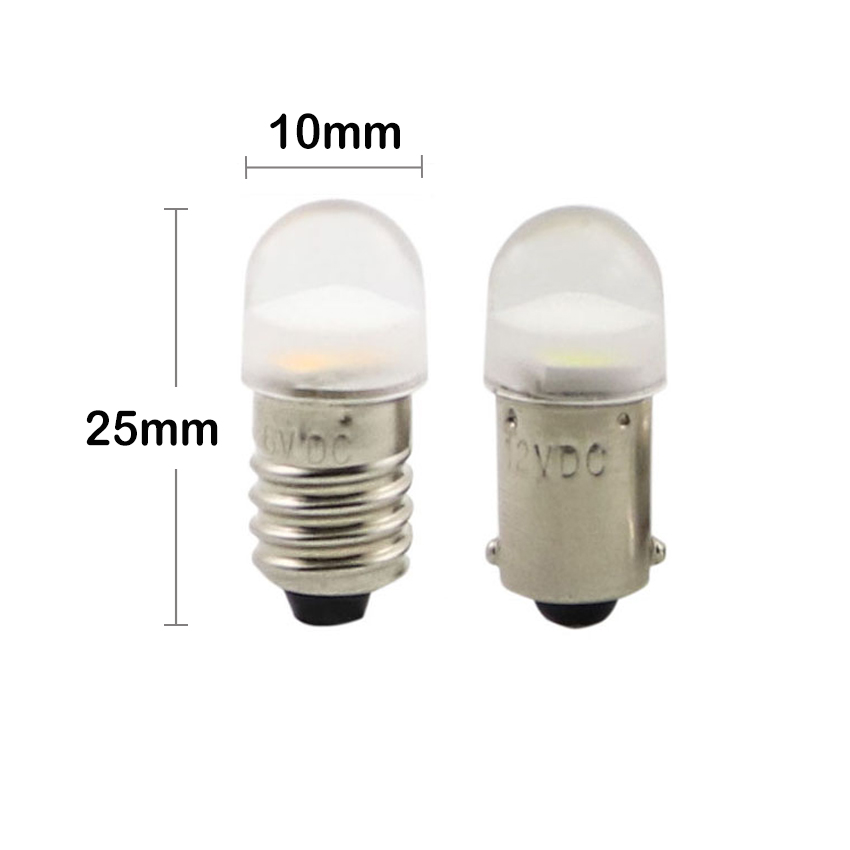

  • Industrial Automation & Switchgear: 22mm / 16mm pushbutton pilot lights, alarm annunciators, control console indicators, and water treatment / power plant monitoring boards (replaces 24V, 30V CEMA, and 60V incandescent bulbs).
  • Electrical Power Distribution: Low-voltage and medium-voltage switch cabinets, relay status indicators, and emergency power supply control units.
  • Automotive & Commercial Vehicles: Gauge backlighting, turn signal dash telltales, gear shift indicators, clock illumination, and motorcycle dash pods requiring compact 23-25mm clearance.
  • Marine & Avionics Consoles: Marine helm switch backlighting and aircraft status panels requiring reliable DC illumination without filament burnout under severe mechanical vibration.

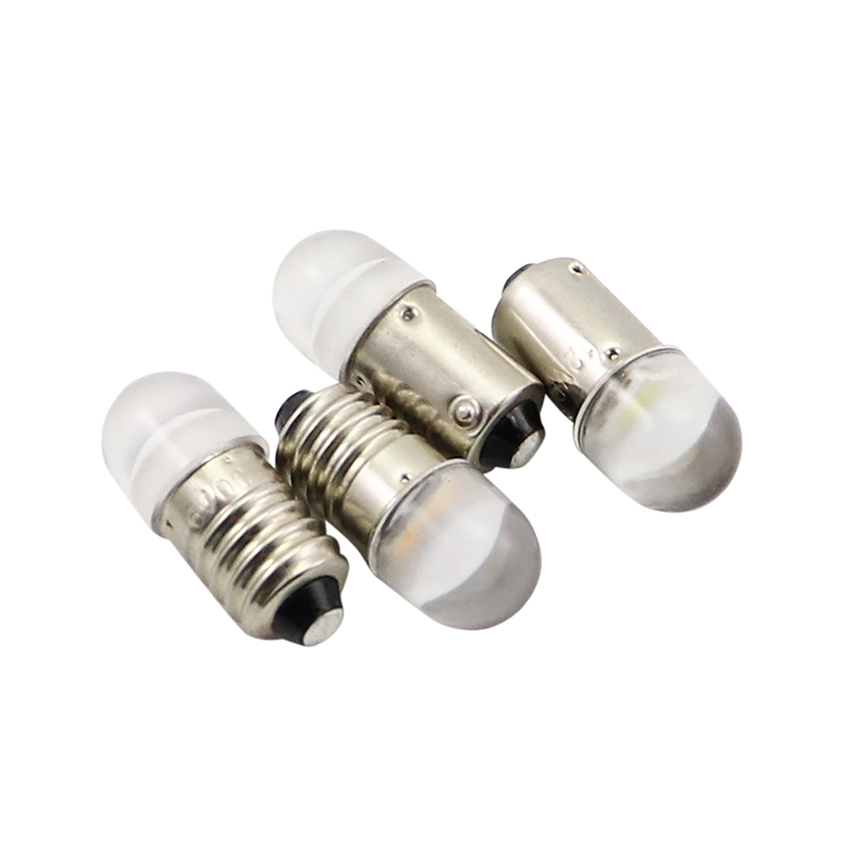

Optical Advantages: Clear Lens vs. Frosted Lens Configuration

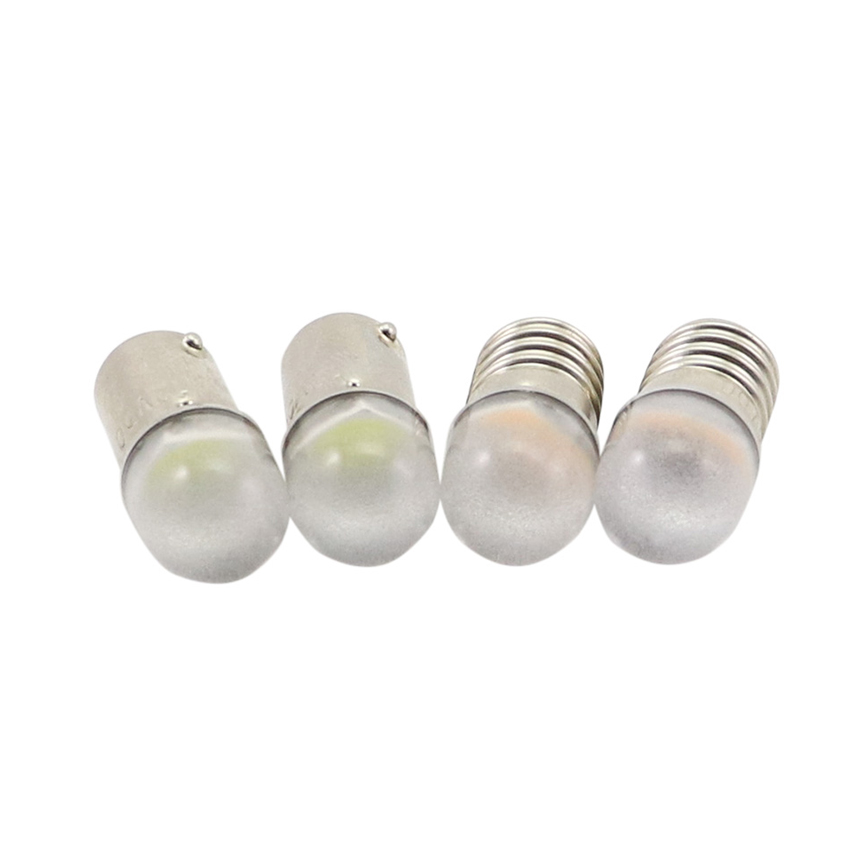

To satisfy divergent optical requirements across different indicator housings, MIDCARS offers dual optical enclosure choices:

  • Clear Polycarbonate Lens: Maximizes raw lumen transmission and punchy, high-contrast point-source illumination—ideal for colored jewel lenses, daytime-visible industrial pilot beacons, and concentrated warning lights.
  • Frosted Polycarbonate Lens: Provides smooth, 100% uniform light dispersion without hotspot glare—ideal for directly visible instrument cluster dials, diffused backlit iconography, and luxury gauge illumination.

B2B Procurement, OEM Customization & Factory Supply

As a direct LED bulb manufacturing plant established in 2016 in Dongguan, China, MIDCARS supports automotive aftermarket brands, electrical panel builders, and regional distributors worldwide:

  • Flexible Minimum Order Quantity (MOQ): Standard stock configurations supported from 5 pairs; full custom packaging MOQ starts at 2,500 pairs.
  • Custom Electrical & Optical Engineering: Tailored voltage circuits (e.g., custom 36V/48V/60V/110V/230V DC/AC), bi-polar circuitry, custom emitter binning (CCT 3000K/4500K/6500K, or pure Red/Amber/Green/Blue wavelengths).
  • Packaging & Private Labeling: Industrial ESD bulk blister packaging, OEM retail hanging cards, custom barcode labeling, and laser-etched model identification on bayonet collars.

Frequently Asked Questions

What is the key difference between T4W-2LCF and standard T4W-4L bulbs?
The primary difference is overall length and emitter configuration. While standard T4W bulbs measure 28-30mm in length with 4 LEDs, the T4W-2LCF features an ultra-short compact profile of only 23-25mm overall length and 2x SMD 2835 LEDs (0.3-0.7W). This makes it specifically engineered for tight, shallow instrument panel housings, shallow pilot lamp sockets, and compact industrial control enclosures where standard bulbs cannot fit.

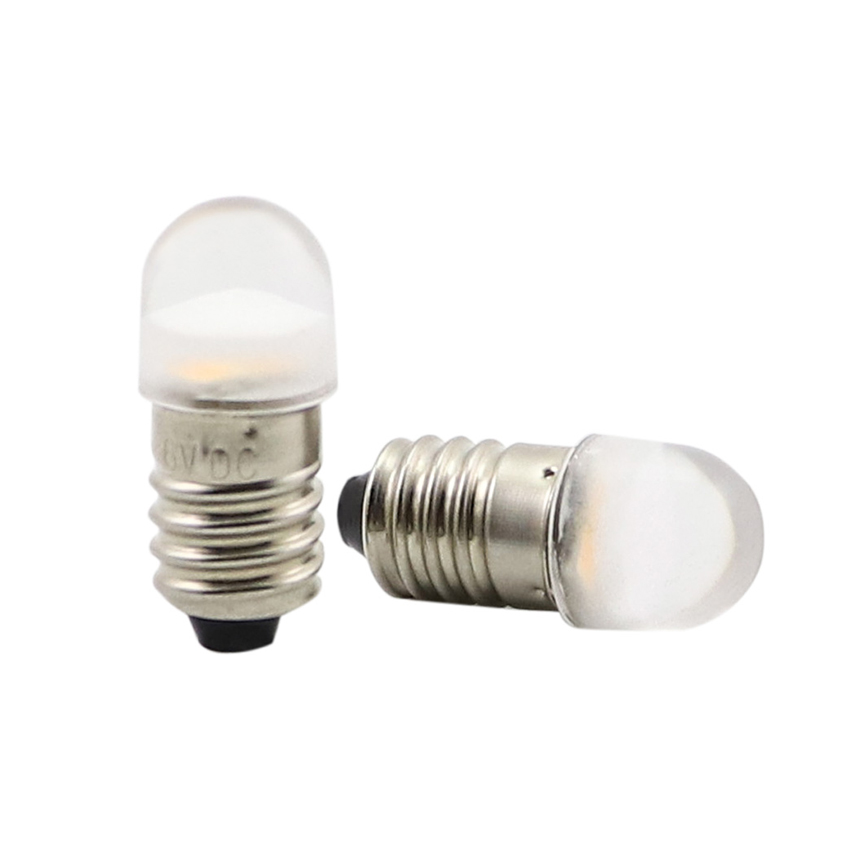

Can this bulb be supplied with an E10 miniature screw base instead of BA9s?
Yes. While the standard production configuration uses the 9mm miniature bayonet BA9s base, we fully support the E10 miniature screw base configuration using the identical 2-SMD compact optical head and wide-voltage driver architecture.
What voltage configurations are available for industrial automation and machinery?
We offer dedicated discrete voltage options tailored to specific operating environments: battery/logic systems (3.7V, 6.3V), automotive & mobile equipment (12V DC, 24V DC), industrial control circuits (36V, 48V, 60V DC), and commercial/industrial mains (100-130V AC, 200-240V AC).
What are the MOQ and OEM packaging options for distributors and equipment builders?
Our official factory policy provides flexible MOQ starting from 5 pairs for standard configurations. For private label branding, customized blister cards, or bulk industrial tray packaging, our custom packaging MOQ starts at 2,500 pairs with comprehensive laser marking support.
