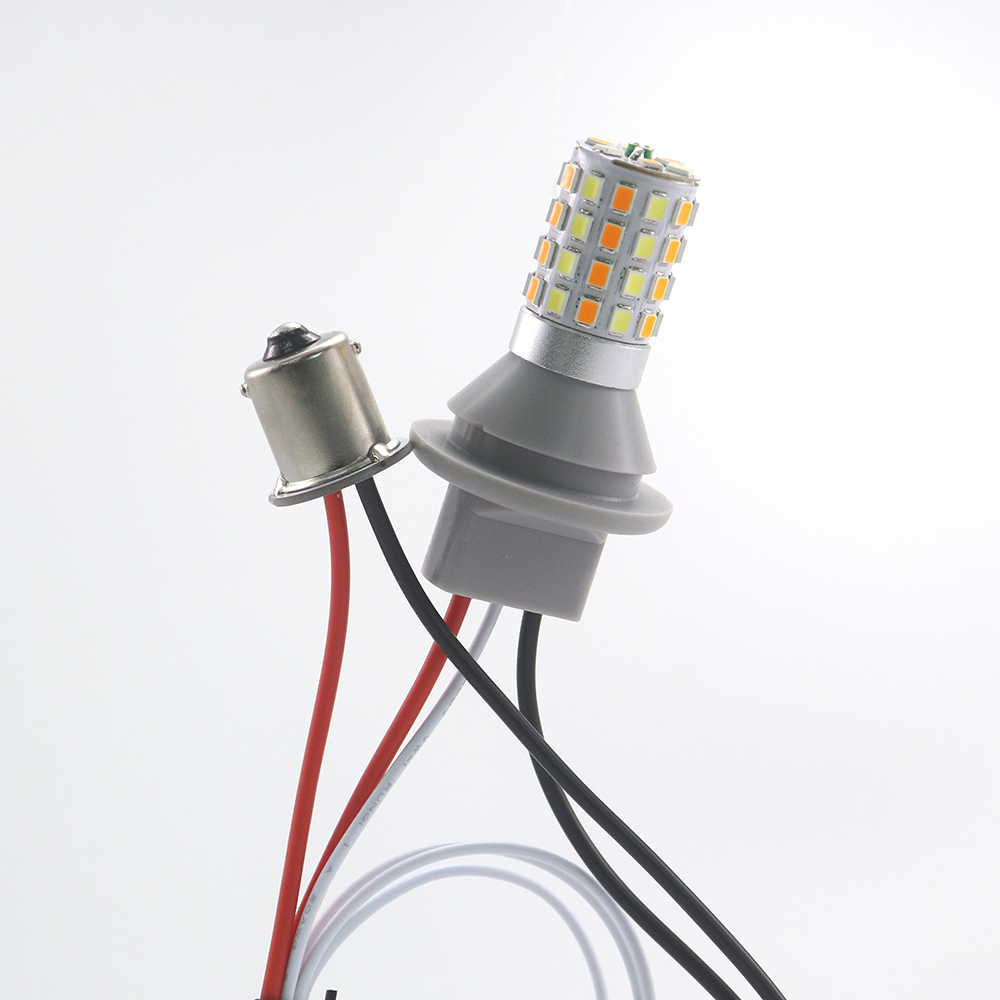

Product Overview: 1156X-54L35-10R Switchback Dual-Color LED Bulb
The MIDCARS® 1156X-54L35-10R is an engineered dual-mode automotive LED replacement system designed to convert single-filament housings into modern switchback DRL + turn signals. Built with a solid Aviation Aluminum thermal core and a protective optical silicone sleeve, it combines rapid heat dissipation with rugged all-weather durability.

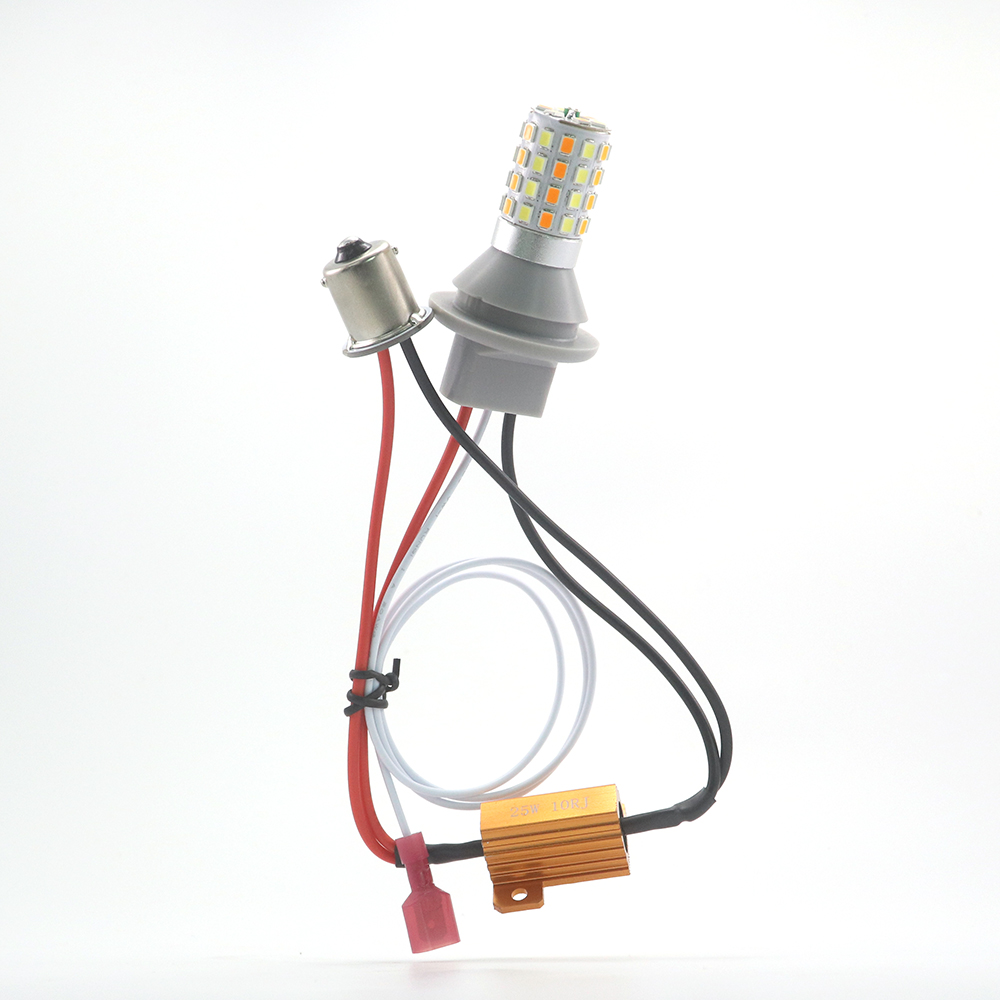

Equipped with dedicated External Plug-and-Play Canbus Load Resistors and an extended ACC power-tap lead, the system draws an equivalent 21W load during signaling mode, completely eliminating hyper-flashing and bulb-out warnings on 99% of vehicle systems.
Video Demonstration: Wiring Architecture & Switchback Lighting Effect
Intelligent Switchback Operating Logic & Wiring

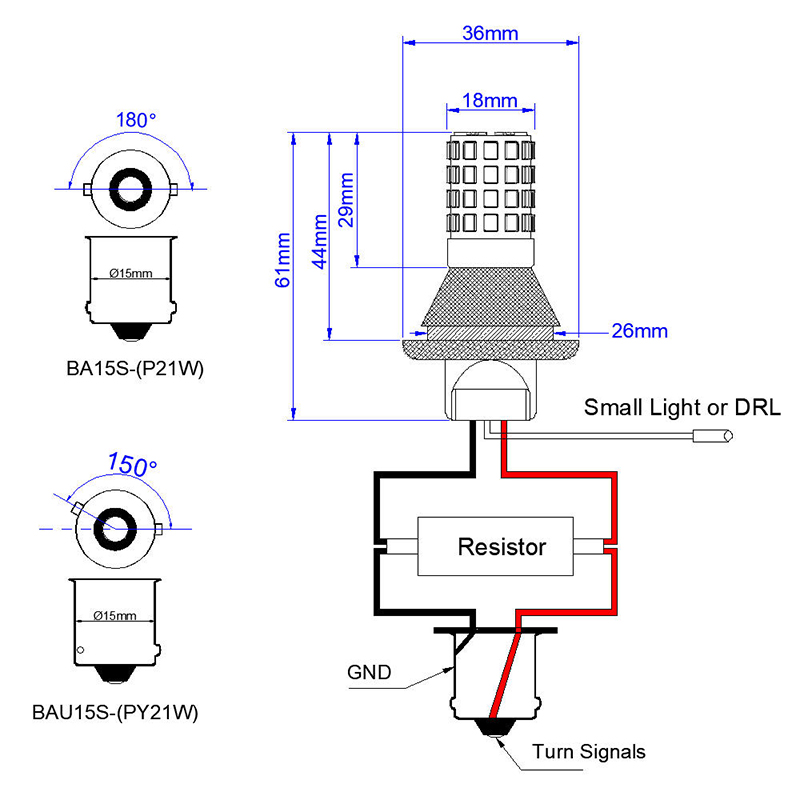

- Wiring Architecture: The bulb socket plugs directly into the vehicle's factory turn signal socket (taking flash/signal triggers). An extended red lead wire connects directly to the ACC fuse box or parking light circuit to supply continuous power for the White DRL.
- Daytime Running Light (DRL) State: When vehicle ignition is ON and signal lever is neutral, the bulb operates in low-power 3.0W steady 6500K pure white mode, providing optimal daylight visibility for oncoming traffic.
- Dynamic Turn Signal State: When the turn indicator or hazard light is activated, the intelligent driver instantly shuts off the white light and engages the 595-600nm amber flash to alert surrounding motorists.
- Auto-Recovery State: Once the turn signal is canceled, the amber light turns off and the white DRL automatically restores after an engineered 1.0-second delay, preventing annoying color flickering during lane changes.
⚠️ Critical Installation & Safety Guidelines for External Load Resistors

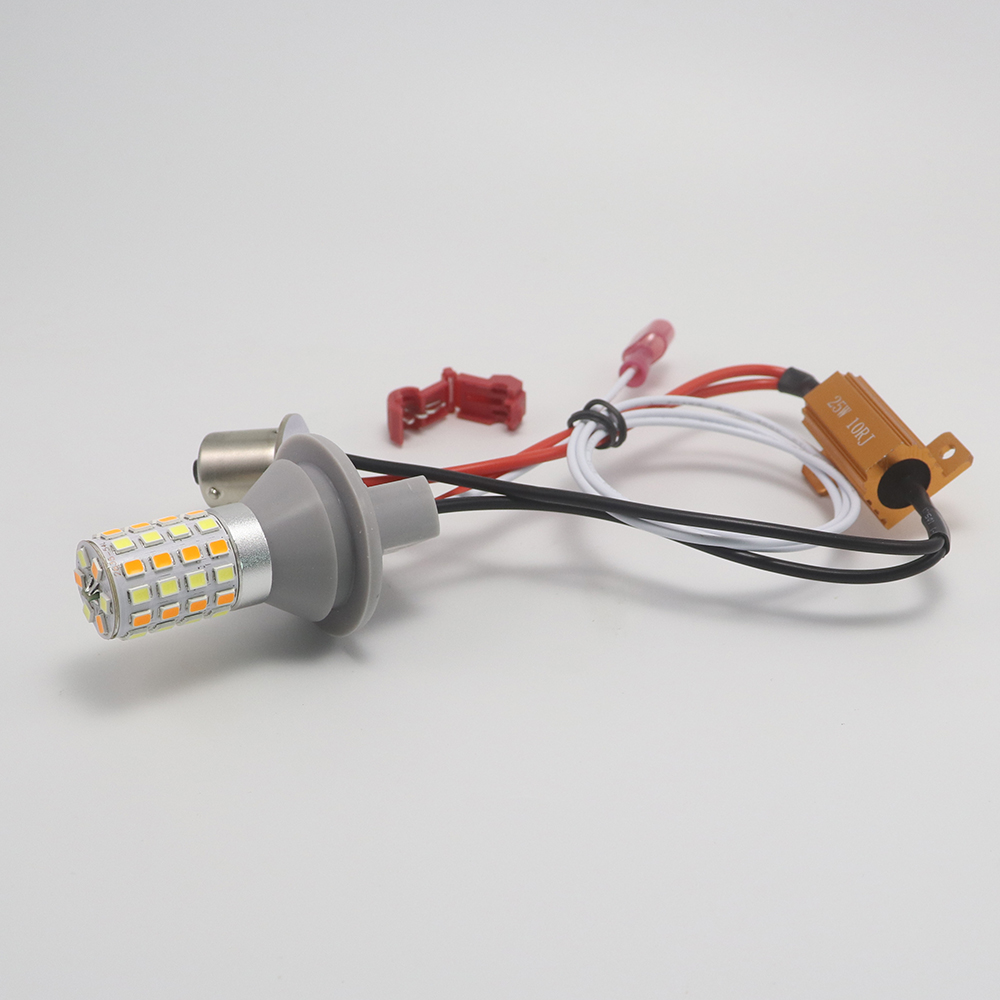

- Operating Heat Dissipation & Voltage Rating: The external gold aluminum load resistor dissipates power to simulate incandescent bulb current draw during turn signal flashing. For 12V systems, standard 25W 10 Ohm is supplied. For 24V systems (commercial trucks/buses), a dedicated 25W 27 Ohm gold load resistor is recommended (compact 25W footprint perfectly matches intermittent turn signal duty cycles). It is completely normal for the resistor body to heat up during signaling.
- Mount on Bare Metal / Chassis Only: Always mount the gold aluminum resistors securely onto flat metal vehicle chassis or engine bay metal framing using mounting screws or heat-resistant metal cable ties to ensure proper heat conduction.
- Keep Clear of Plastic & Wire Harnesses: DO NOT attach or zip-tie resistors directly onto plastic panels, plastic bumper brackets, headlight housing shells, or against wiring harnesses. Ensure the resistor is either attached to solid metal or suspended in open air.

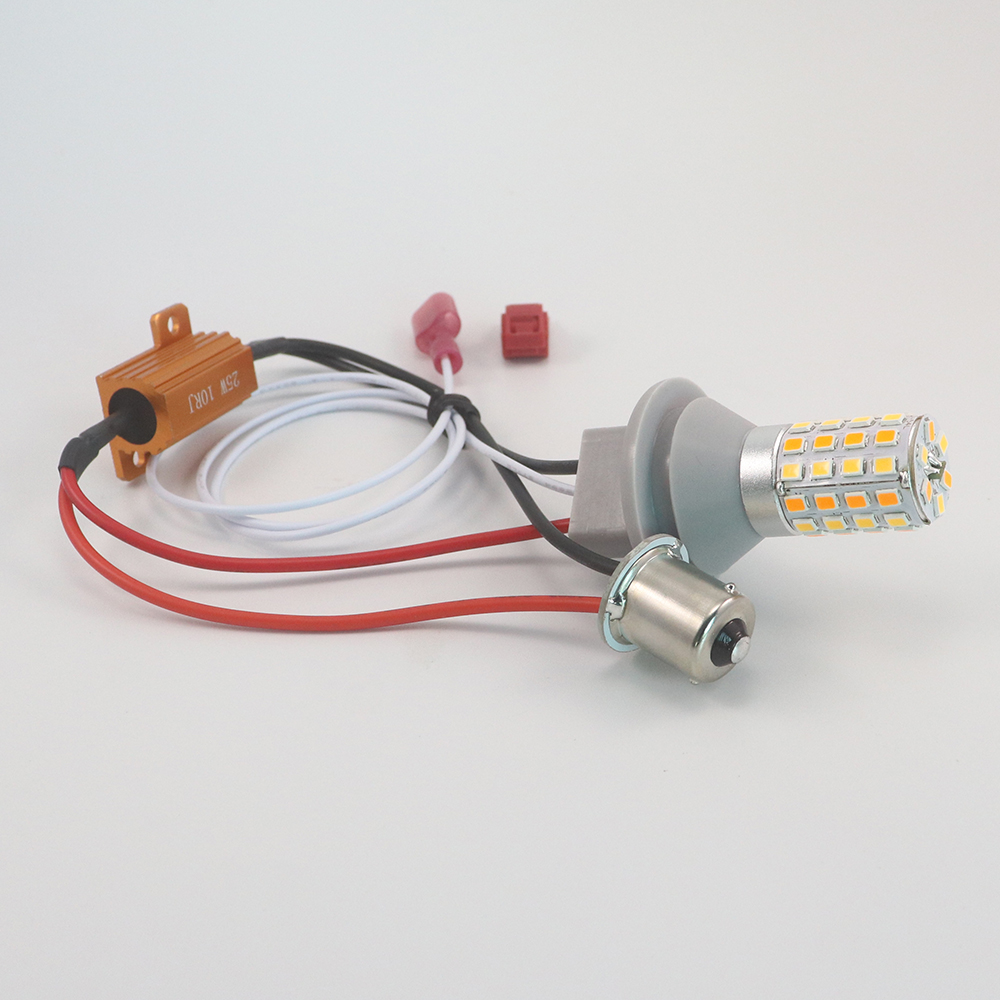

- Simple ACC Line Connection: Connect the extended red power lead directly to the vehicle's ACC fuse circuit (or parking light wire) to automatically illuminate the 6500K White Daytime Running Light whenever the vehicle ignition is on.
Primary Vehicle Application Scenarios
- Front Turn Signals & Daytime Running Lights (DRL): Upgrades single-function amber turn signal housings into dual-function white DRL + amber turn indicator assemblies.
- Fog Light Housings with Integrated Turn Signals: Dual-color output provides both fog penetration (amber/yellow) and daytime presence lighting.
- Rear Taillight & Brake / Turn Integrations: Configurable with Red & Amber options for combined brake and turn indicator applications.
- Commercial Trucks, Buses & Trailers (24VDC): High-voltage tolerance engineered to withstand alternator load dumps and continuous fleet operation.
- Motorcycle Retrofit Lighting: Compact silicone envelope fits tightly into narrow motorcycle bullet indicator housings with all-weather sealing.
B2B OEM / ODM Customization Services (Direct from Factory)
As a specialized automotive LED source manufacturer, MIDCARS® provides comprehensive private-label OEM/ODM services for global brands, importers, wholesalers, and fleet distributors:
- Product Laser Engraving: Custom logo, model number, batch code, or certification mark laser-etched onto the metal collar.
- Private Label Packaging: Custom retail packaging design including customized blister cards, anti-static foil bags, or color gift boxes with your brand identity.
- Custom Electrical & Functional Engineering: Tailored Canbus resistance matching, non-standard operating voltages (e.g. 10-30V / 36V / 48V), or customized switchback delay timing upon request.
- Low MOQ & Fast Sampling: Fast Sample Lead Time: 2-3 business days for in-stock samples, 5-7 business days for custom/out-of-stock samples; flexible scheduling for bulk orders.
Frequently Asked Questions
Q1: How does the external 60cm ACC wire enable switchback DRL functionality on single-filament sockets?
Factory 1156 / BA15s turn signal sockets provide only a single positive circuit for amber flashing. By connecting the included 60cm external wire with its T1 quick wire-tap to an ignition-switched ACC fuse or parking light circuit, the bulb receives continuous power for white DRL. The internal logic controller automatically cuts white light when the turn signal activates and restores DRL after a 1.0-second delay.
Q2: Where should the external aluminum load resistor be mounted during installation?
The external gold aluminum load resistor dissipates electrical energy to simulate standard 21W filament draw, preventing hyper-flashing. It generates heat during continuous turn signal operation and must be mounted securely against metal chassis framing using screws or high-temp adhesive. Avoid direct contact with plastic wiring harnesses or composite headlight housings.
Q3: Can this bulb be installed in 24V commercial vehicle systems?
Yes. We engineer dedicated, voltage-specific versions: a 12V DC edition (operating range 10V–16V DC) and a heavy-duty 24V DC edition (operating range 24V–28V DC). Each version is paired with factory-matched resistors and protection circuits specifically calibrated for its respective operating voltage.
Q4: What are the packaging and order MOQ policies for OEM brands?
Standard stock catalog orders are supported from 5 pairs for evaluation. For custom-branded retail packaging (anti-static bags or printed display boxes), the packaging run MOQ is 5,000 pieces. OEM clients can pre-fund packaging materials, which are stored at our factory and applied across repeat production runs.
