Home > Products > 1156-1157 LED Bulb > 1157 BAY15D LED Bulb | P21/5W 500LM Brake Tail Light 12V 24V

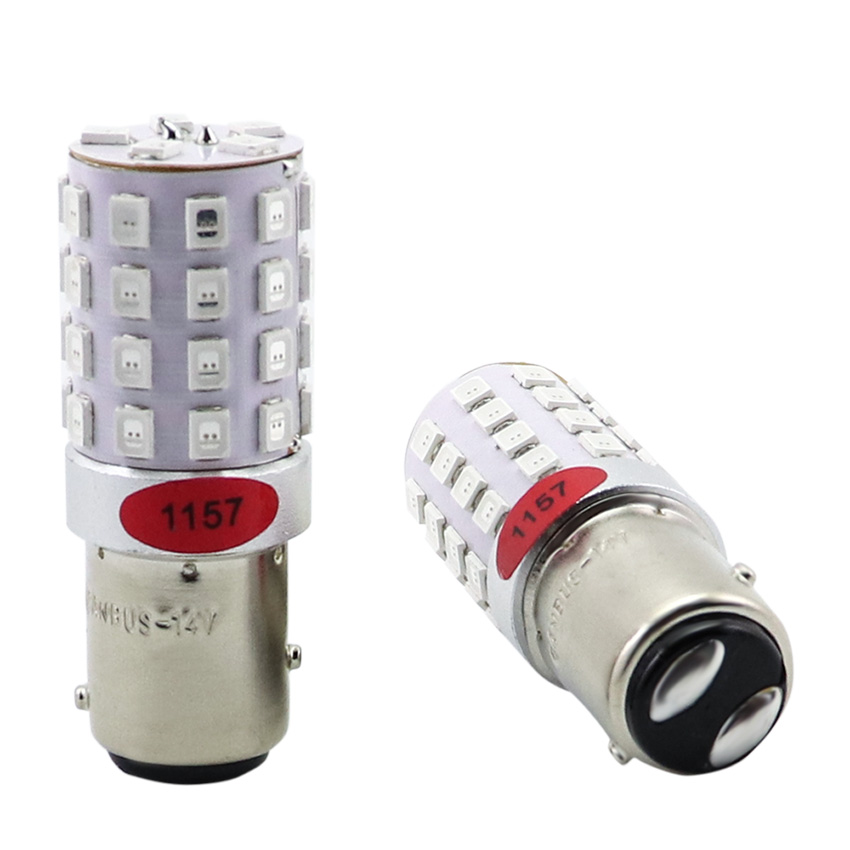

1157 BAY15D LED Bulb - Dual-Contact P21/5W 500LM Brake Tail Light (6V–85V DC)

High-output dual-contact BAY15d LED bulb engineered with 45x SMD 2835 LEDs on an open-frame 6063 aluminum body. Delivers calibrated dual-intensity signaling (60LM tail / 500LM brake) with an 8.3:1 contrast ratio. Direct replacement for P21/5W & 1157.
Product Model:1157-45L

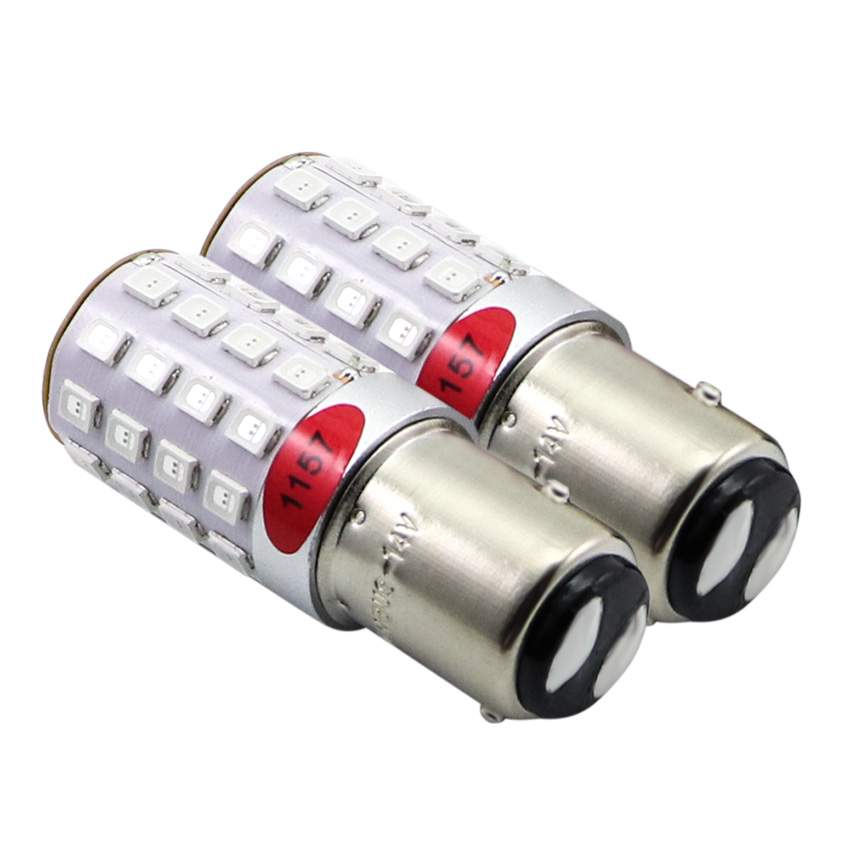

Socket / Base:BAY15d (Dual-Contact Offset Bayonet, P21/5W) · BA15s & BAU15s available
Bulb Dimensions:Outer Diameter 18.0mm × Overall Length 48.0mm
Operating Voltage:Discrete Versions: 6-15V DC (Auto/Moto) · 12-30V DC (Truck) · 48-85V DC (Forklift/EV)
Power Rating:Tail (Low): 0.8W · Brake (High): 5.0W
Luminous Flux:Tail (Low): 60 LM · Brake (High): 500 LM (8.3:1 Dynamic Contrast)
Color Output:Red 620-630nm · Pure White 6500K · Warm White 3000K
LED Emitters:45x High-Efficiency SMD 2835 LEDs (360° Array)

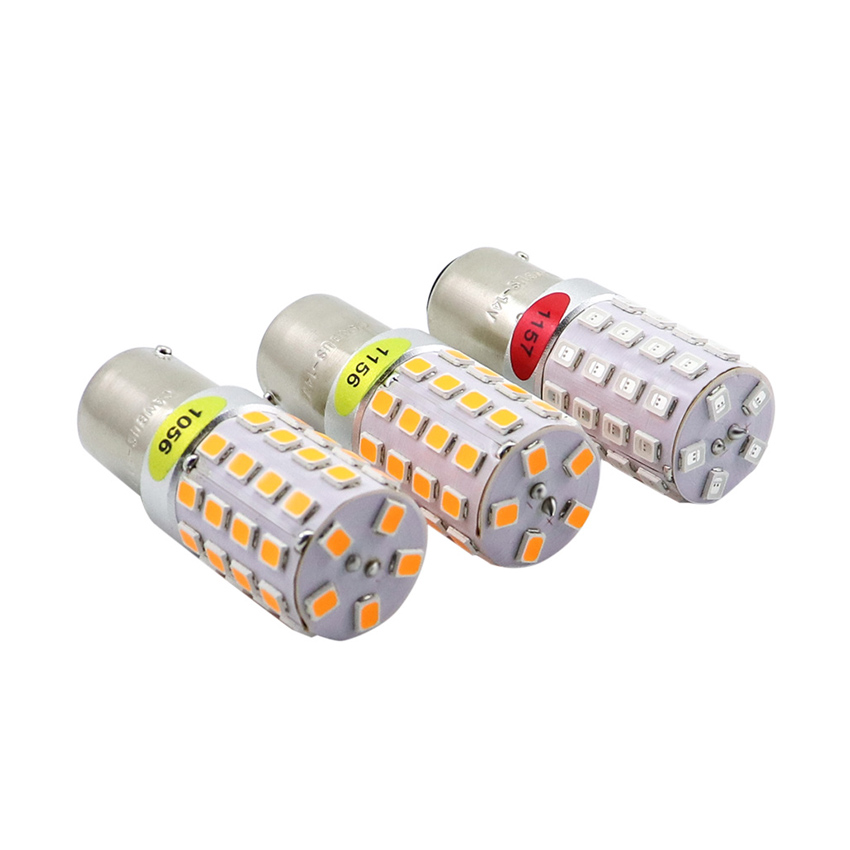

Enclosure / Body:Solid 6063 Aluminum Heat-Sink Body (Open Frame)
Quality & Warranty:CE (EMC Compliant), RoHS | 2 Years Factory Warranty
Factory MOQ:Flexible MOQ: Standard stock configurations supported from 5 pairs; full custom packaging MOQ starts at 5,000 pcs.
  • Product Details

Engineering Architecture & High-Output Dual-Intensity Performance

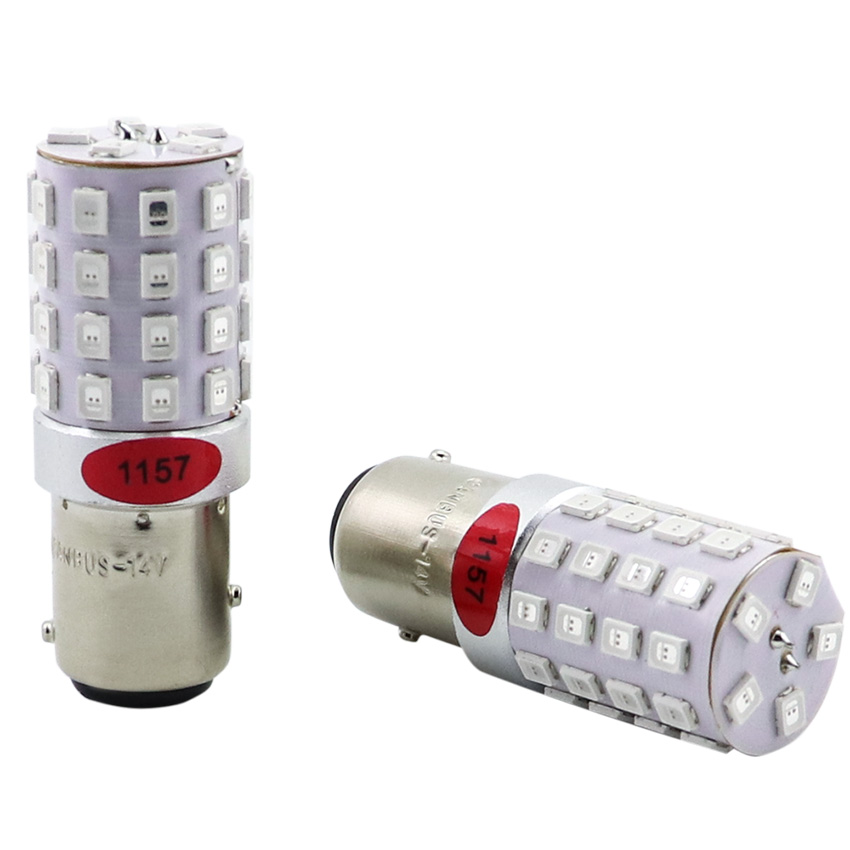

The MIDCARS 1157-45L is an industrial-grade dual-contact BAY15d (P21/5W ECE) LED signaling bulb engineered for maximum lumen density and instant illumination in automotive, heavy commercial, and industrial vehicle applications. Featuring an optimized 45-emitter SMD 2835 matrix mounted on a precision CNC-machined 6063-T5 aluminum heat-sink body, this bulb provides true 360-degree cylindrical light emission with an intense 500-lumen brake light output and a calibrated 60-lumen tail/running light mode.

Dual-Intensity Optical Calibration

Dual-intensity optical calibration delivers an unmistakable brake-vs-tail contrast, ensuring instant driver recognition without the washed-out signaling common in single-level LEDs.

Compact Optical Profile

Ultra-slim profile drops seamlessly into shallow motorcycle reflector housings and compact automotive tail assemblies without clearance friction.

Direct Air-Cooled Open-Frame Architecture

Open-frame architecture allows direct airflow dissipation over the solid aluminum core, preventing junction thermal runaway.

Industrial Discrete Voltages

Dedicated solid-state driver configurations supporting 6-15V DC, 12-30V DC, and 48-85V DC for electric forklifts.

Precision Dimensional Blueprint & Multi-Base Series Comparison

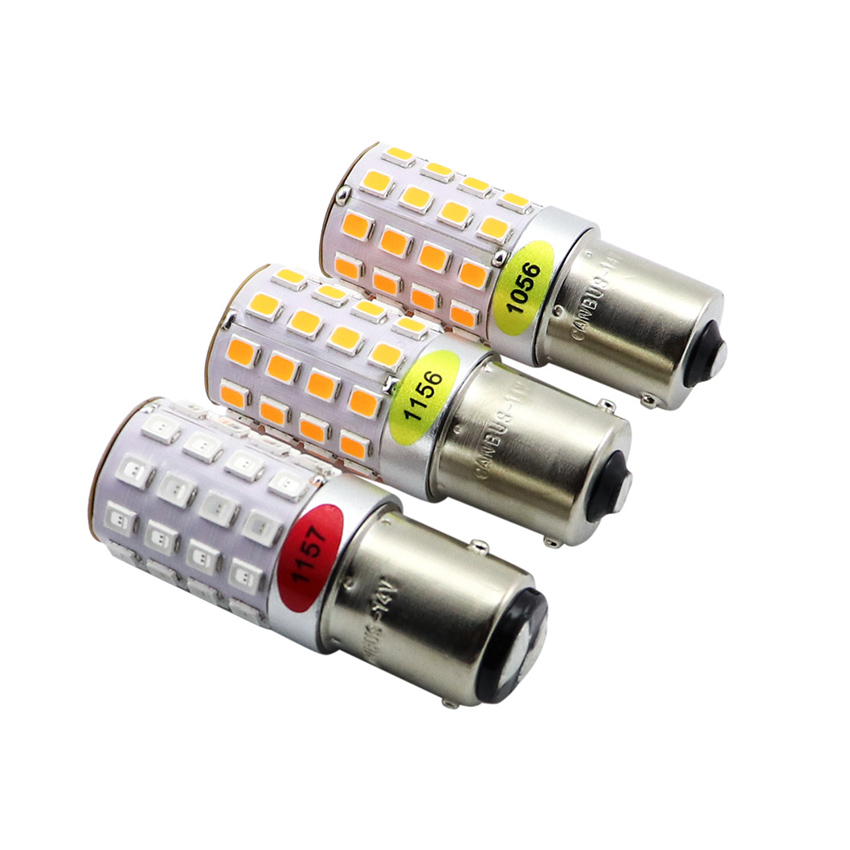

The 1157-45L belongs to our high-output 45L signaling family. Below are the exact engineering blueprints comparing all three base configurations in this series (BAY15d dual-contact offset-pin, BAU15s offset-pin single-contact, and BA15s single-contact straight-pin):

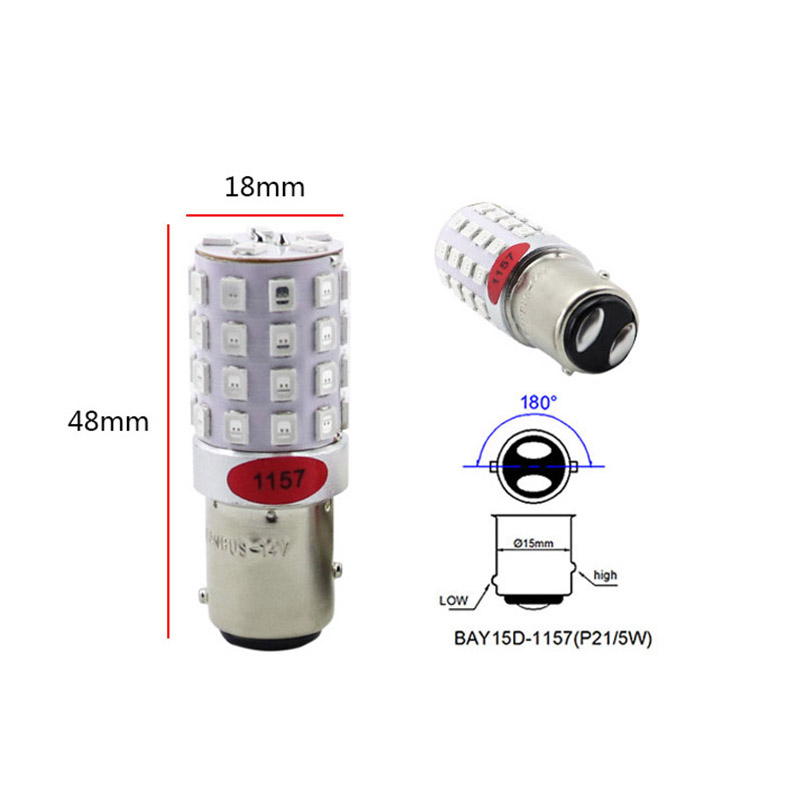

1157 BAY15d Dual Contact Offset Pin 45L LED Bulb Engineering Blueprint

1157 BAY15d (P21/5W This Model)

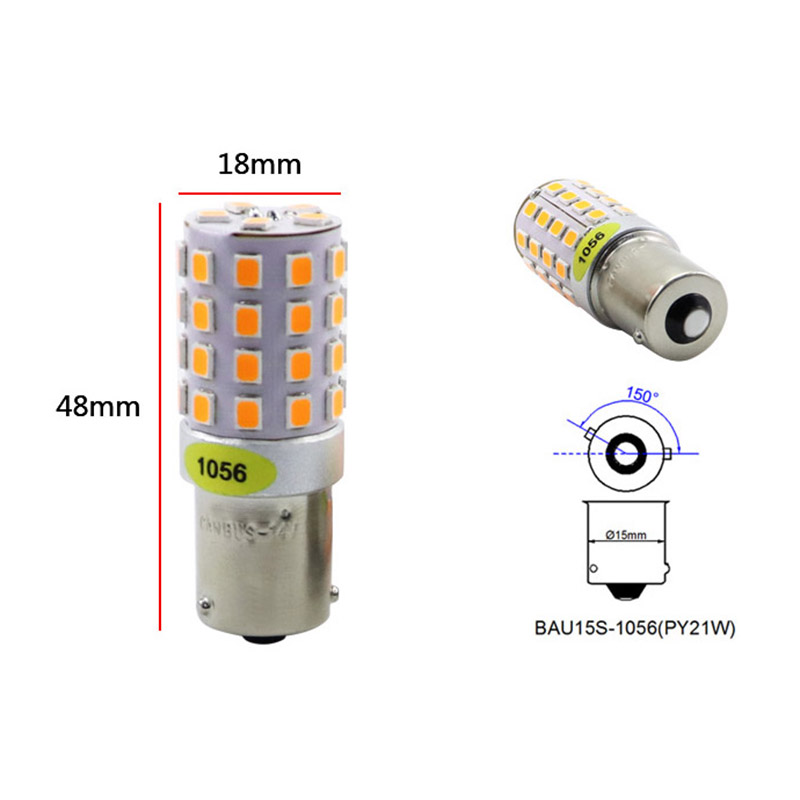

1156 BAU15s Single Contact Offset 150° Pin 45L LED Bulb Blueprint

1156 BAU15s (PY21W 150° Pin)

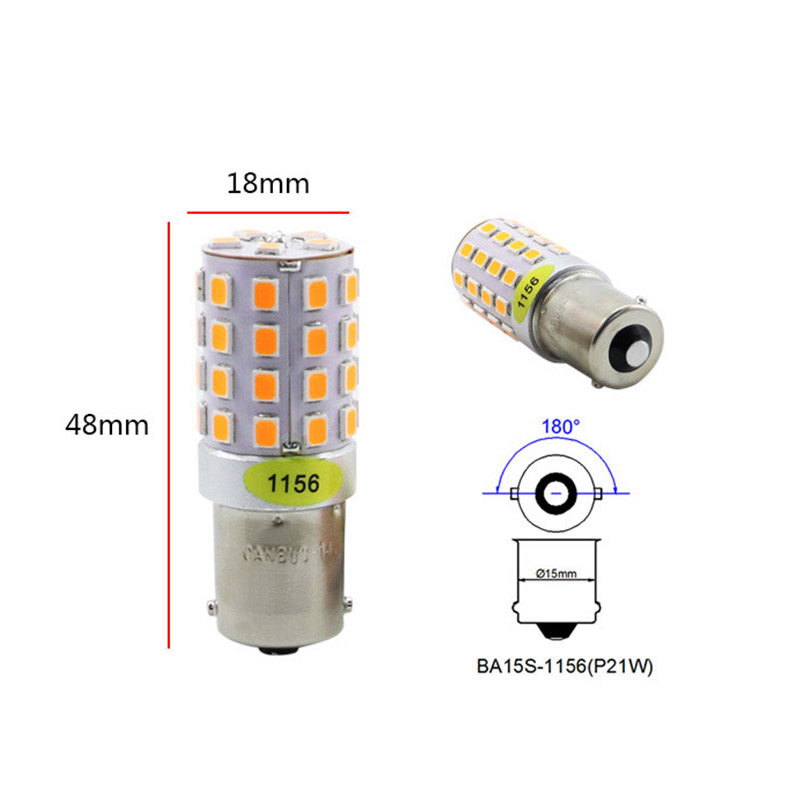

1156 BA15s Single Contact Flat Pin 45L LED Bulb Dimensional Blueprint

1156 BA15s (P21W Straight Pin)

CANBus Load Resistor Installation Guidelines

Because LED technology consumes significantly less power than traditional incandescent bulbs (0.8W tail / 5.0W brake vs 5W/21W halogen), sensitive vehicle Body Control Modules (BCM) or electronic flasher circuits may occasionally trigger a bulb-out warning or fast flashing on certain passenger vehicles.

⚠ Anti-Hyper Flash & Error Cancellation Recommendation (Load Resistor Selection):

The 1157-45L is engineered with a high-efficiency solid-state circuit without built-in power-wasting dummy load resistors, maintaining cool operating temperatures and a true 50,000-hour LED lifespan. For vehicles equipped with sensitive CANBus bulb-out detection systems, installing an external gold aluminum housed load resistor across the high-intensity brake circuit is recommended:
• 12V Electrical Systems: Connect a 25W 10 Ohm gold aluminum load resistor in parallel with the high-intensity brake light circuit.
• 24V Commercial / Heavy-Duty Vehicles: Connect a 25W 27 Ohm gold aluminum load resistor in parallel with the high-intensity brake light circuit.
• Industrial Forklifts & Electric Equipment (48V-85V): Typically operate on independent relay/PLC circuits without CANBus bulb-out sensing, allowing direct plug-and-play installation without external resistors.
Note: Only connect load resistors across the intermittent brake light circuit; do not wire load resistors directly across continuous tail/running circuits to prevent unnecessary heat buildup.

Industrial & Heavy-Duty Equipment Applications

Beyond automotive brake and tail lighting, the 1157-45L is specifically designed to meet the extreme demands of industrial materials handling and commercial vehicle fleets:

Heavy-Duty Material Handling & Electric Forklifts

Electric forklifts and reach trucks (Toyota, Linde, Hyster, Crown, Clark) commonly run on 48V, 72V, or 80V DC traction battery systems. Standard 12V automotive LED bulbs fail instantly under these voltages. The 1157-45L features an optional dedicated 48-85V DC circuit capable of enduring continuous charging spikes up to 90V DC while providing brilliant rear brake and reverse signal illumination inside high-bay warehouses.

Commercial Fleet & Trailer Transport

With a moisture-resistant anodized aluminum body and solid-state SMD emitters, this bulb withstands rough road washboard vibration and repeated chassis shock that frequently breaks fragile tungsten filaments in conventional 1157 bulbs.

Frequently Asked Questions

What is the difference between the 1157-45L (04) and 1157-39L (03)?
The 1157-45L utilizes 45x SMD 2835 LEDs in an open-frame air-cooled design delivering up to 500 LM on high beam with a slimmer 18mm diameter, whereas the 1157-39L features a protective glass enclosure with 39x SMD 3014 LEDs delivering 300 LM on high beam with a 25mm diameter.
Can this dual-contact 1157 bulb replace single-contact 1156 sockets?
No. The 1157 BAY15d features dual bottom contact nubs and offset indexing locking pins designed specifically for dual-function circuits (running/tail light and brake light). For single-contact circuits (P21W / PY21W), please specify the BA15s or BAU15s variant in this series.
Do I need load resistors to prevent hyper-flashing or dashboard error codes?
The 1157-45L is designed with a high-efficiency solid-state circuit without internal power-wasting dummy resistors. If installed on vehicles with sensitive CANBus bulb-out monitoring or thermal flasher relays, an external gold aluminum load resistor (12V 25W 10Ω or 24V 25W 27Ω) wired in parallel across the brake circuit will eliminate warning lights. Industrial forklifts and electric vehicles (48V-85V) typically require no external resistors.
Why is red light recommended for red tail/brake lens assemblies?
When white LED light passes through a red plastic tail light lens, the lens absorbs all non-red wavelengths (blue, green, yellow), resulting in a washed-out pinkish-red hue and significant lumen loss. Installing a pure Red 620-630nm LED ensures maximum light transmission, crisp optical saturation, and immediate visibility.
