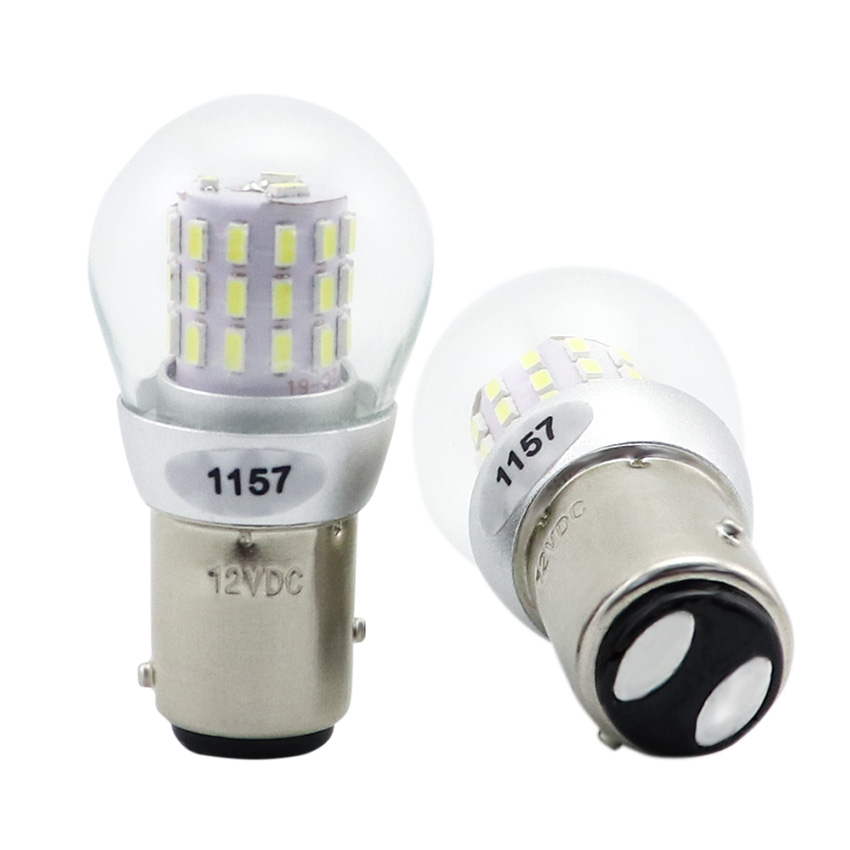

1157 BAY15D LED Bulb – Dual-Contact P21/5W Red Brake & Tail Light (6V–85V DC)

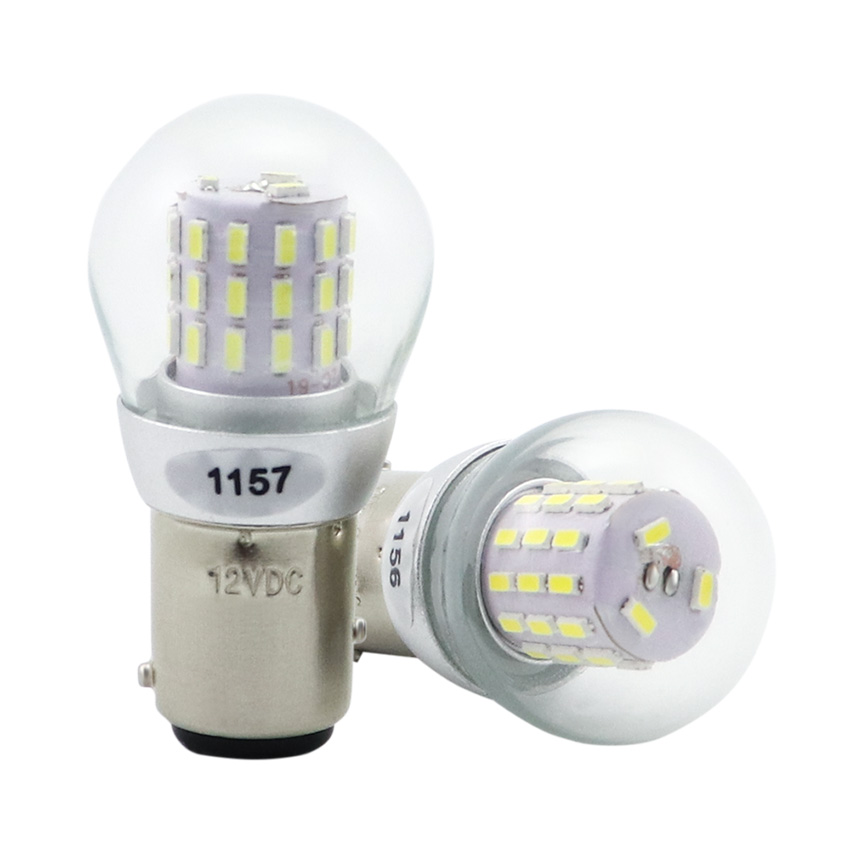

Heavy-duty dual-contact BAY15d LED bulb featuring 39x SMD 3014 LEDs enclosed in a protective glass cover with a solid aluminum body. Delivers calibrated dual output (50LM tail / 300LM brake) with a 6:1 contrast ratio. Replaces P21/5W & 1157.
Product Model:1157-39L
Socket / Base:BAY15d (Dual-Contact Offset Bayonet, P21/5W) · BA15s & BAU15s available
Bulb Dimensions:Outer Diameter 25.0mm × Overall Length 51.0mm
Operating Voltage:Discrete Versions: 6-15V DC (Auto/Moto) · 12-30V DC (Truck) · 48-85V DC (Forklift/EV)
Power Rating:Tail (Low): 0.7W · Brake (High): 3.0W
Luminous Flux:Tail (Low): 50 LM · Brake (High): 300 LM (6:1 Contrast Ratio)
Color Output:Red 620-630nm · Pure White 6500K · Warm White 3000K

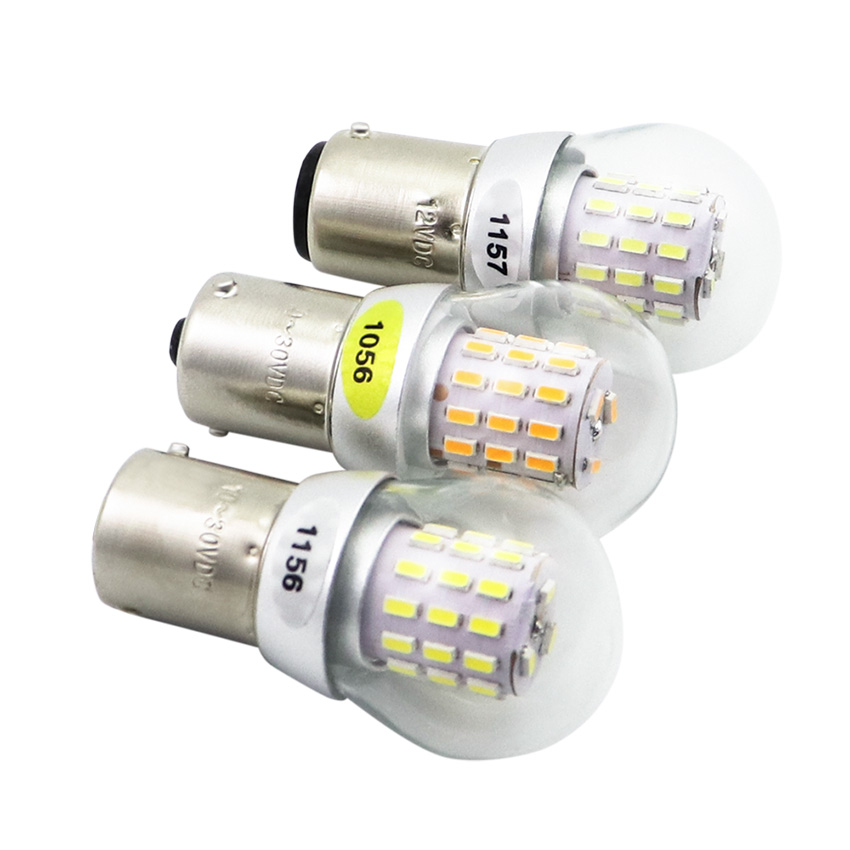

LED Emitters:39x High-Efficiency SMD 3014 LEDs (360° Array)
Enclosure / Body:Protective Glass Cover + 6063 Aluminum Heat Sink
Quality & Warranty:CE (EMC Compliant), RoHS | 2 Years Factory Warranty
Factory MOQ:Flexible MOQ: Standard stock configurations supported from 5 pairs; full custom packaging MOQ starts at 5,000 pcs.
  • Product Details

Dual-Intensity BAY15D LED Replacement: Engineered for Tail, Marker & High-Contrast Brake Illumination

In heavy automotive traffic, adverse weather, and industrial warehouse environments, rear signaling contrast is vital to collision avoidance. The MIDCARS 1157-39L is an advanced solid-state replacement for traditional halogen P21/5W and 1157 dual-filament bulbs. Featuring a robust protective cylindrical glass cover and an aircraft-grade 6063 aluminum heat-sink core, it houses an omnidirectional array of 39 high-efficiency SMD 3014 LEDs engineered to replicate the exact focal point of incandescent filaments.

The bulb delivers a calibrated dual-intensity output: an ambient 50 Lumens (0.7W) for nighttime running, parking, and tail light operation, seamlessly jumping to an instantaneous, brilliant 300 Lumens (3.0W) when the brake pedal is depressed. This clean 6:1 luminance contrast ratio delivers immediate visual recognition to following motorists, reducing driver reaction lag by up to 300 milliseconds compared to slow-rising incandescent filaments.

Precision Dimensional Specifications & Multi-Base Series Comparison

The 1157-39L belongs to our precision 39L glass-enclosure signaling family. Below are the exact engineering blueprints comparing all three base configurations in this series (BA15s single-contact, BAU15s offset-pin single-contact, and BAY15d dual-contact offset-pin):

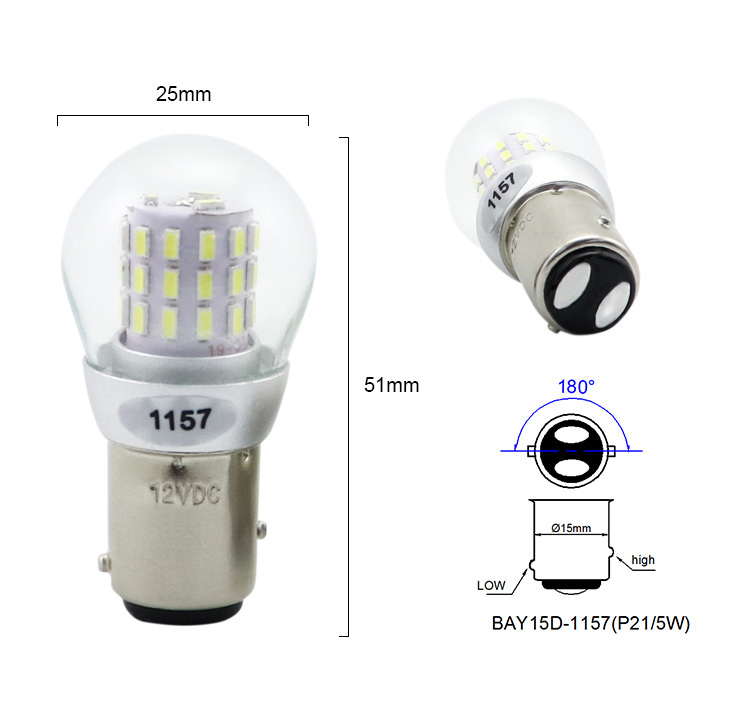

1157 BAY15d Dual Contact Offset Pin 39L LED Bulb Blueprint

1157 BAY15d (P21/5W This Model)

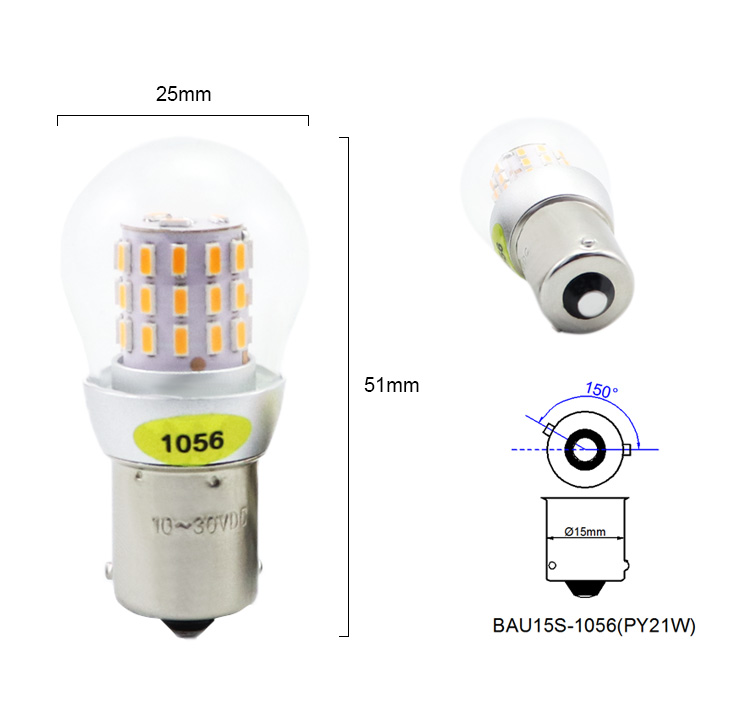

1156 BAU15s Single Contact Offset 150° Pin 39L LED Bulb Blueprint

1156 BAU15s (PY21W 150° Pin)

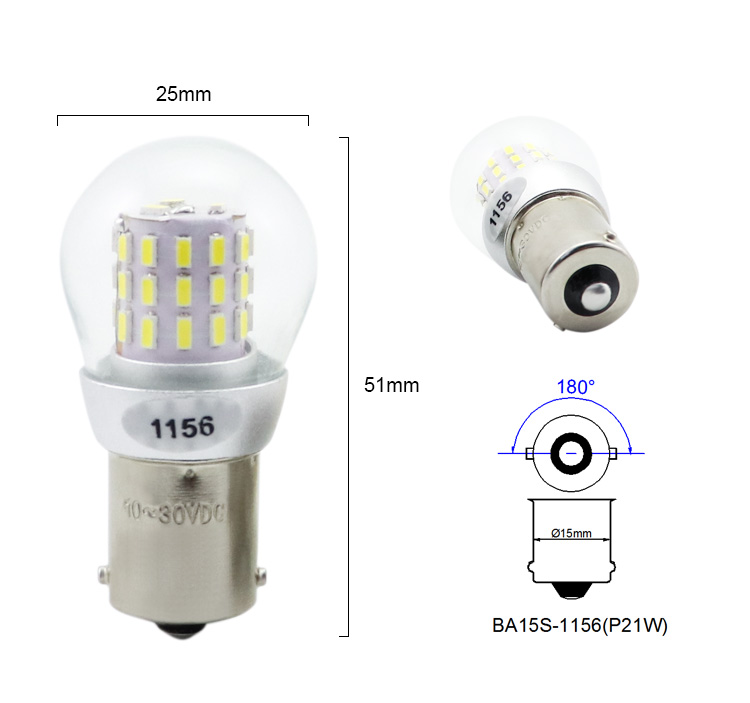

1156 BA15s Single Contact Flat Pin 39L LED Bulb Blueprint

1156 BA15s (P21W Straight Pin)

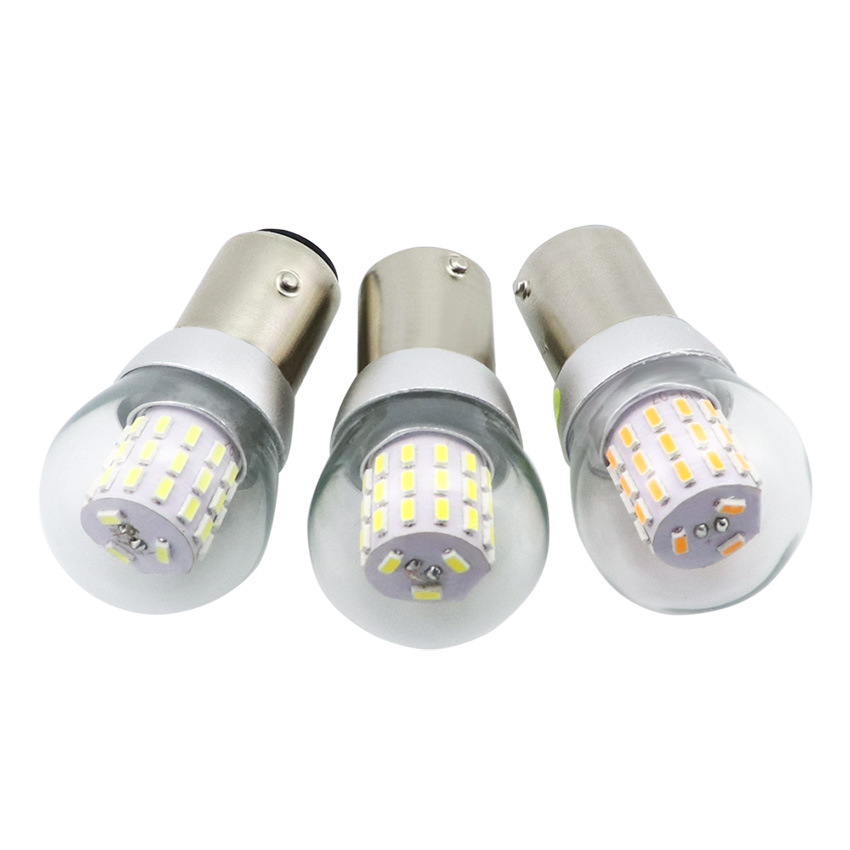

Application Scenarios Across Automotive, Material Handling & Marine

With its wide voltage selection and protective glass envelope, the 1157-39L excels across high-vibration and harsh outdoor duty cycles:

Passenger Cars, Motorcycles & Light Commercial Vehicles

  • Tail & Brake Lights: Direct upgrade for vehicles using P21/5W dual-filament rear lamp assemblies.
  • Front Parking & DRL Lights: Position marker illumination combined with daytime visibility signaling.
  • Classic & Vintage Motorcycles: 6-15V DC configuration engineered for vintage 6V magneto and 12V alternator electrical systems.

Industrial Forklifts, Material Handling & Electric Vehicles

  • Warehouse Forklifts & Reach Trucks: 48-85V DC variant directly accommodates 48V, 72V, and 80V traction battery systems without external DC-DC step-down converters.
  • Commercial Utility Trailers: Sealed glass cover withstands direct rain, road spray, and wash-down chemicals.

CANBus Load Resistor Installation Guidelines

Because LED technology consumes significantly less power than traditional incandescent bulbs (0.7W tail / 3.0W brake vs 5W/21W halogen), sensitive vehicle Body Control Modules (BCM) or electronic flasher circuits may occasionally trigger a bulb-out warning or fast flashing on certain passenger vehicles.

⚠ Anti-Hyper Flash & Error Cancellation Recommendation (Load Resistor Selection):

The 1157-39L is engineered with a high-efficiency solid-state circuit without built-in power-wasting dummy load resistors, maintaining cool operating temperatures and a true 50,000-hour LED lifespan. For vehicles equipped with sensitive CANBus bulb-out detection systems, installing an external gold aluminum housed load resistor across the high-intensity brake circuit is recommended:
• 12V Electrical Systems: Connect a 25W 10 Ohm gold aluminum load resistor in parallel with the high-intensity brake light circuit.
• 24V Commercial / Heavy-Duty Vehicles: Connect a 25W 27 Ohm gold aluminum load resistor in parallel with the high-intensity brake light circuit.
• Industrial Forklifts & Electric Equipment (48V-85V): Typically operate on independent relay/PLC circuits without CANBus bulb-out sensing, allowing direct 100% plug-and-play installation without external resistors.
Note: Only connect load resistors across the intermittent brake light circuit; do not wire load resistors directly across continuous tail/running circuits to prevent unnecessary heat buildup.

Frequently Asked Questions

What is the primary function of the 1157 BAY15d dual-contact base?

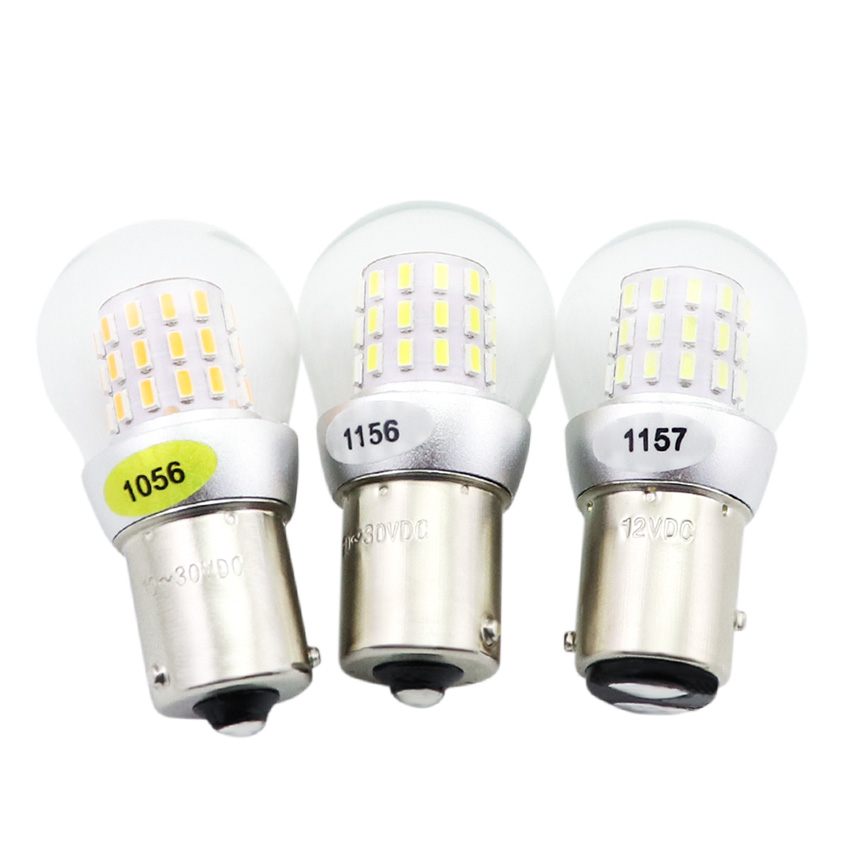

The BAY15d base features two bottom electrical contacts and offset locking index pins (positioned at 180 degrees apart with different heights). This enables independent dual-mode operation: low-intensity illumination (50 LM, 0.7W) for running, tail, or parking lights, and high-intensity illumination (300 LM, 3.0W) for brake and stop signaling. The offset pins ensure the bulb cannot be inserted backwards in the socket.
Why does this bulb feature a cylindrical glass cover over the LEDs?
The protective cylindrical glass cover completely shields the internal SMD 3014 LED chips and driver circuit from airborne moisture, oil vapors, exhaust residue, and road dust commonly encountered in vehicle tail lamp enclosures. This prevents optical degradation and electrical corrosion, extending operational lifespan in harsh outdoor and industrial conditions.
Can this bulb be used on 48V or 80V electric forklifts and industrial machinery?
Yes. While standard automotive bulbs are limited to 12V or 24V, the 1157-39L series offers a dedicated high-voltage driver variant rated for 48-85V DC continuous operation. This makes it an ideal direct drop-in replacement for warehouse forklifts, electric reach trucks, airport ground support equipment, and mining transport vehicles.
What should I do if my vehicle exhibits fast blinking (hyper-flash) or dashboard bulb-out errors?
Because this bulb consumes only 0.7W to 3.0W (compared to 5W/21W for stock halogen bulbs), sensitive vehicle CANBus body computers may register a bulb-out condition. For vehicles requiring CANBus decoding on the high-intensity brake circuit, we recommend adding an external 25W 10Ω load resistor for 12V systems, or a 25W 27Ω resistor for 24V commercial vehicle systems.
