1. Engineering & Optical Overview

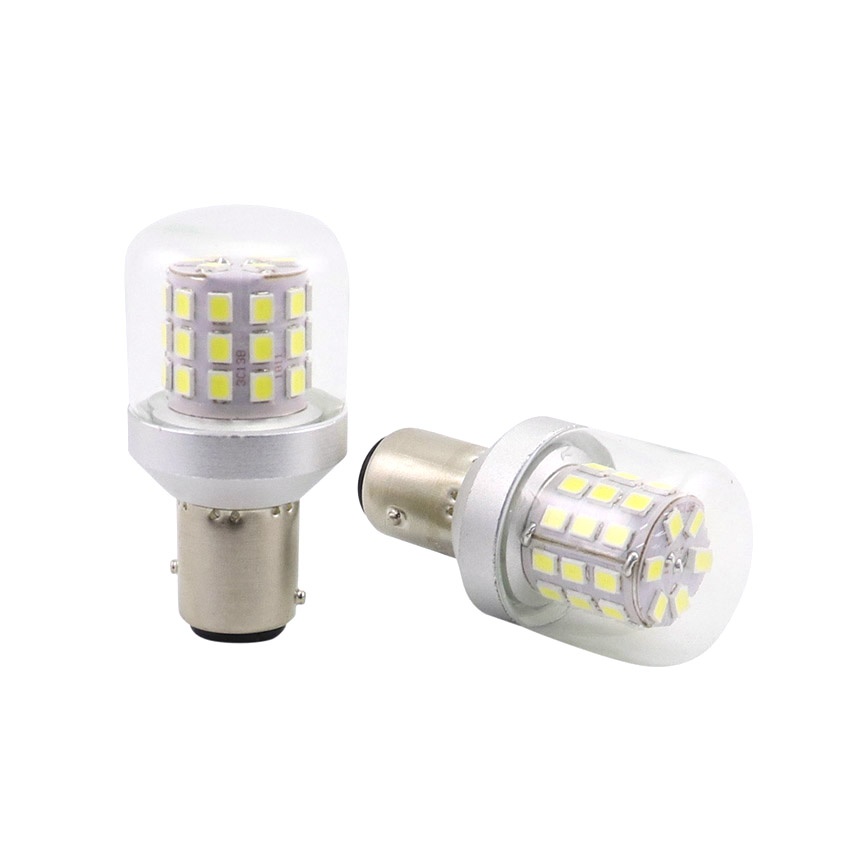

The T28-39L35 Short-Profile LED Bulb is engineered by MIDCARS specifically to solve tight vertical clearance constraints where standard T25 bulbs (65mm) are too tall to fit. Measuring just Φ27mm × L54mm (11mm shorter than T25), this compact bulb is the ideal solid-state LED replacement for traditional 40W RP35 rotating beacon bulbs and incandescent T28 lamps widely used on electric forklifts, material handling vehicles, warning light towers, and low-profile marine navigation lanterns.

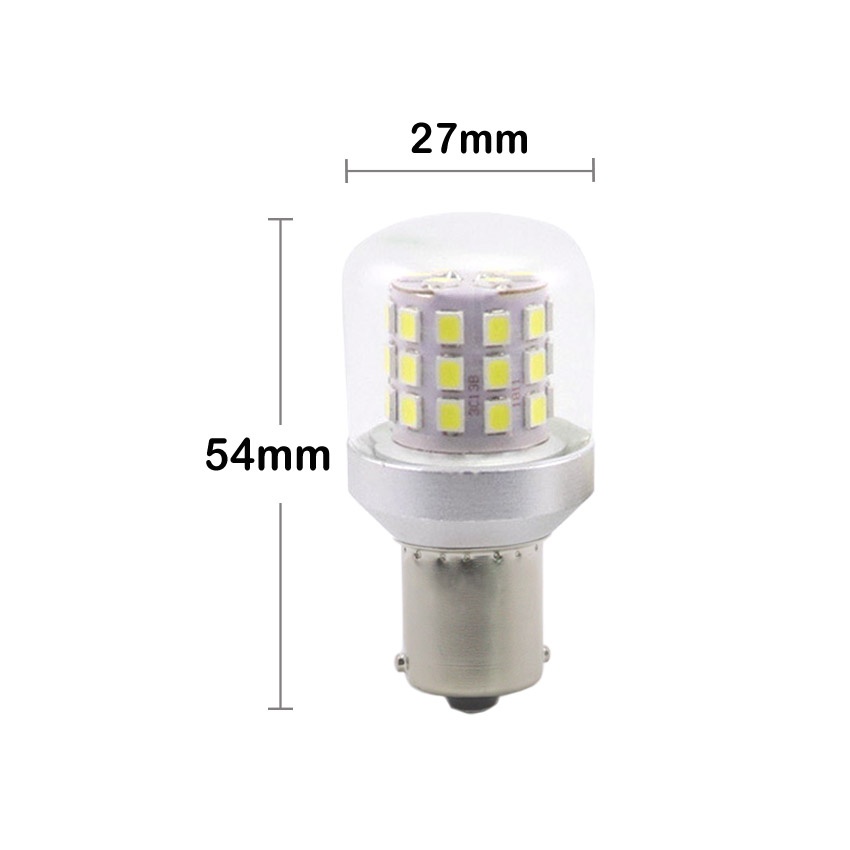

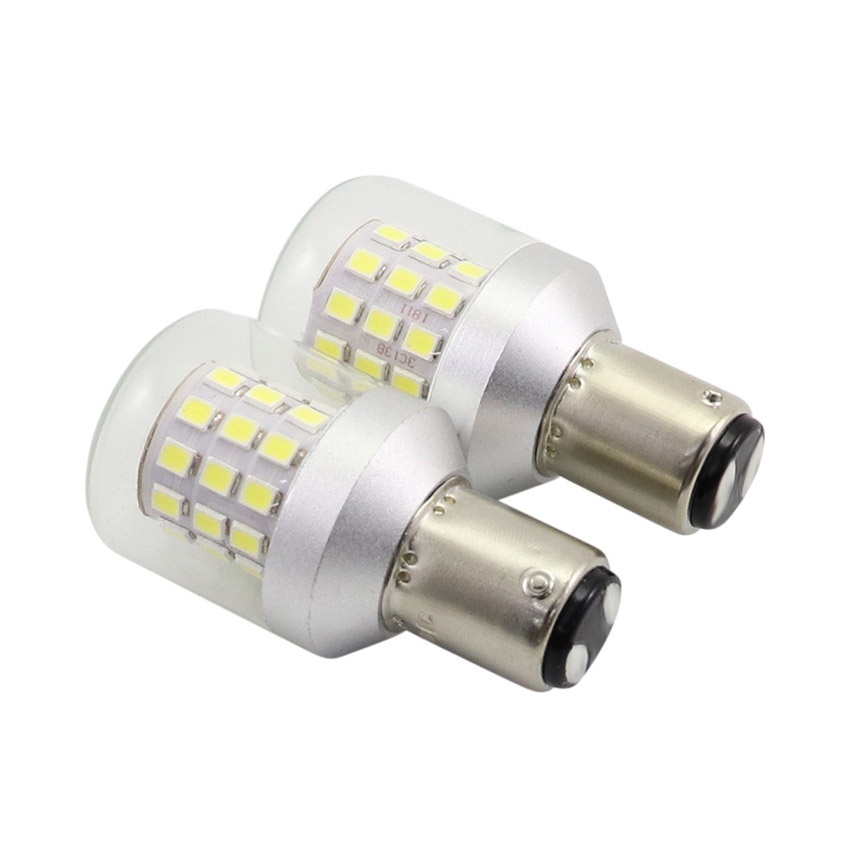

Despite its compact stature, the T28-39L35 packs 39x high-output SMD 2835 LEDs on a high-thermal-conductivity aviation aluminum core, generating a brilliant 500 lumens of 360-degree omnidirectional light at only 5.0W. Encased in a heavy-duty, crystal-clear shatterproof polycarbonate (PC) protective envelope, it withstands constant mechanical shock, severe mast vibration, and rough industrial duty. Available with BA15d, BAY15d, and BA15s base options, it features discrete constant-current circuits for 10-36VDC (12V/24V systems) and 48-80VDC (electric forklift batteries and railway auxiliary loops).
2. Engineering Blueprints & Optical Verification

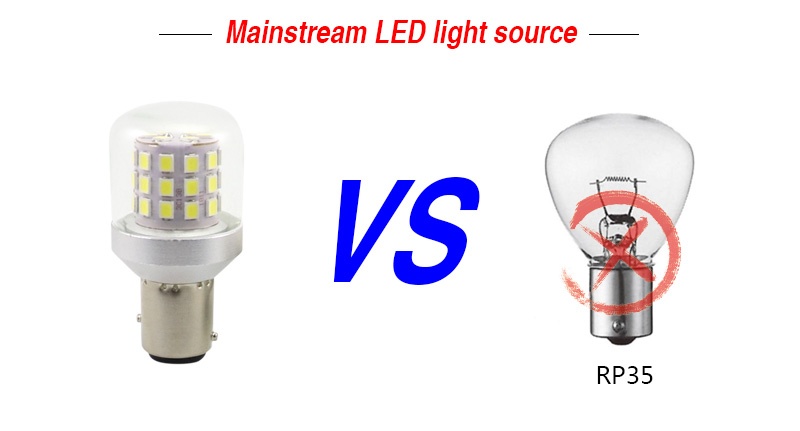

The T28-39L35 directly replaces fragile tungsten bulbs while offering clear pin identification and high-contrast color temperatures:
3. Key Electrical & Thermal Advantages

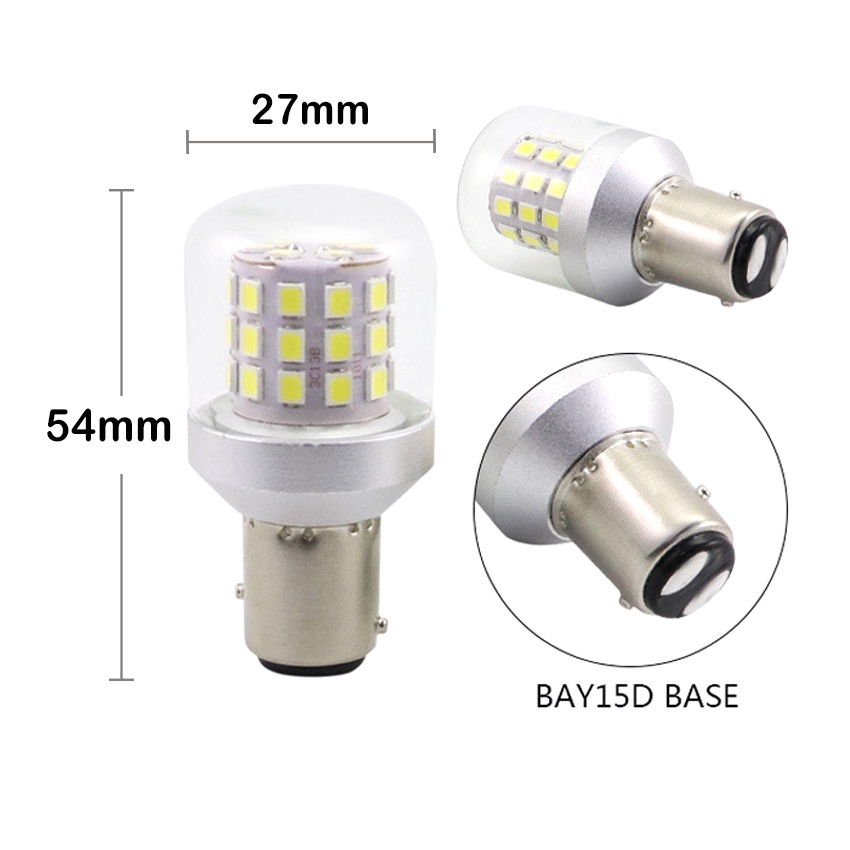

- Compact Short Envelope (54mm): At only 54mm total length, it fits into compact warning light domes and forklift revolving beacons where 65mm T25 bulbs cannot be seated.
- Direct 40W RP35 Retrofit: Delivers 500 lumens to match the focal reflector of rotary beacon lenses while reducing power draw from 40W to just 5.0W.
- Multi-Base Flexibility: Factory available in BA15d (dual contact parallel), BAY15d (offset pins single-intensity), and BA15s (single contact) for universal socket compatibility.
- Heavy-Duty Forklift Voltage (48V-80V): High-voltage DC constant-current driver handles transient voltage spikes and alternator ripple on industrial battery packs.
4. Equipment Cross-Reference & RP35 Replacement
The T28-39L35 retrofits traditional incandescent lamps across material handling and maritime equipment:
- Electric Forklift Rotating Beacons: Direct LED upgrade for Patlite, Hella, and generic rotary warning lights using 40W RP35 bulbs on 24V, 48V, or 80V forklifts.
- Compact Marine Navigation Fixtures: Low-profile anchor lanterns, masthead lights, and stern markers requiring a shorter bulb envelope under restricted dome lenses.
- Industrial Warning Towers & AGVs: Multi-tier Andon signal towers, automated guided vehicles, and machine tool status beacons operating on DC loops.
5. Primary Industrial & Commercial Application Scenarios
Electric Forklift Rotating Beacons (48V-80V)
Overhead amber/red rotating safety beacons and strobe housings on electric forklifts, reach trucks, and warehouse material handling equipment.
Compact Marine Navigation & Anchor Lights
Short-clearance 360° anchor lanterns and masthead navigation fixtures on watercraft where 65mm bulbs contact the outer fresnel lens.
Industrial Machine Tool Warning Towers
Andon signal lights and automated machinery warning columns requiring vibration-proof 500LM illumination on 24V or 48V factory lines.
Railway Passenger Cars & Equipment Berth
Passenger car vestibule indicators, reading sconces, and locomotive gauge fixtures powered by 75VDC rolling stock battery loops.
6. B2B OEM & Custom Manufacturing Capabilities
As a source entity manufacturer in Dongguan, China, MIDCARS supports custom requirements for industrial distributors and fleet suppliers:

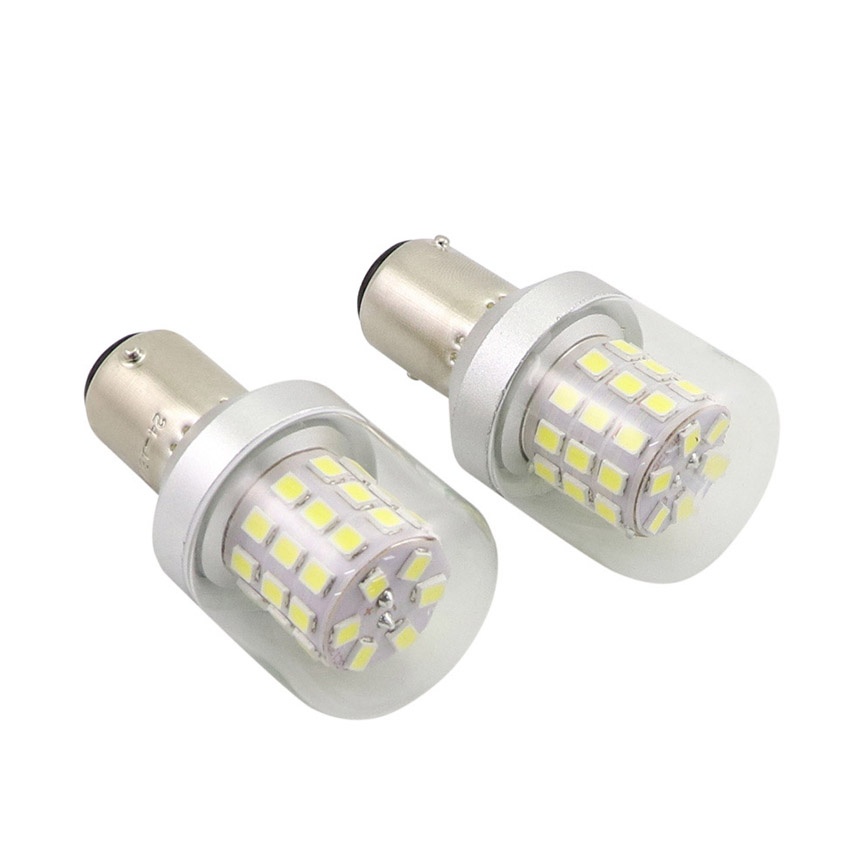

- Base Selection: BA15d (double contact parallel), BAY15d (double contact offset), or BA15s (single contact) with anti-corrosion nickel-plated brass barrels.
- Operating Voltage Tuning: Tailored constant-current PCB drivers for 10-36VDC or 48-80VDC with built-in surge suppression.

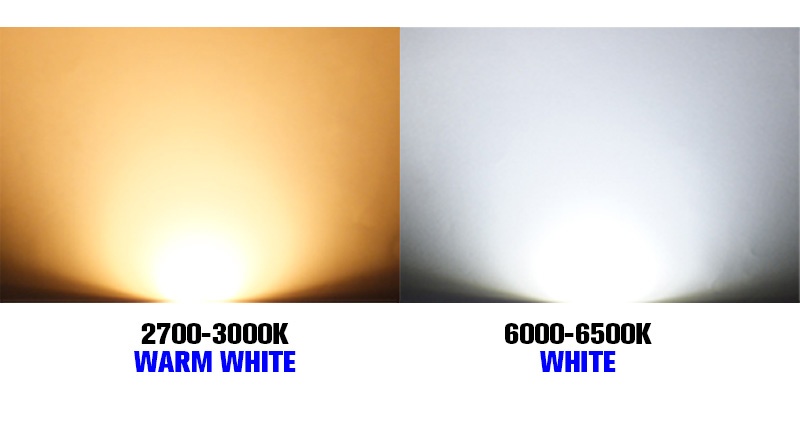

- Color Temperature & Packaging: Available in 6000-6500K Xenon White, 2700-3000K Warm White, Amber Yellow, or Signal Red; neutral factory cartons or OEM branded blister cards.
7. Frequently Asked Questions (FAQ)
Many forklift rotating warning beacons have compact cylindrical or dome-shaped lenses designed strictly for short RP35 incandescent bulbs (around 52-55mm). Standard T25 bulbs (65mm) are too long and prevent the beacon dome from closing. The T28-39L35 measures only 54mm total length, ensuring 100% plug-and-play fit without lens interference.

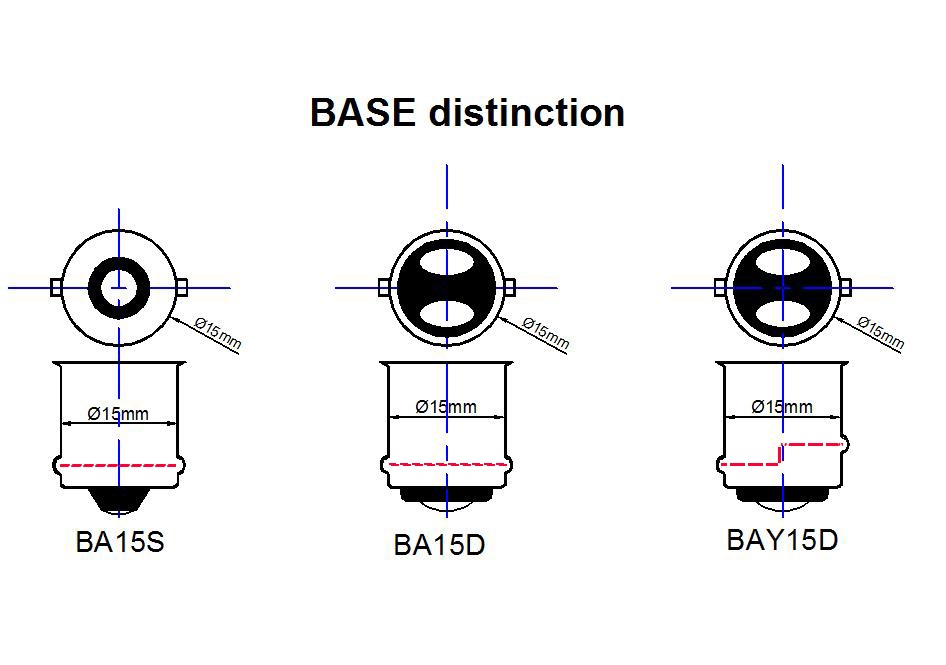

BA15s has a single bottom contact and parallel pins (negative ground through the metal shell). BA15d has dual bottom contacts and parallel pins (insulated circuit). BAY15d has dual bottom contacts and staggered (offset) height pins for keyed one-way insertion. All three share a 15mm base diameter.
Yes. The T28-39L35 delivers 500 lumens of 360-degree omnidirectional light, fully matching the optical output of a 40W tungsten RP35 bulb while reducing power consumption to just 5.0W and eliminating filament vibration failure on rough forklift terrain.
Standard neutral factory packaging is available from 5 pairs for evaluation testing. For private-label custom branding (custom blister card or four-color retail box), the minimum initial packaging print run is 5,000 pieces, which is pre-funded and stored in our warehouse, then drawn down across repeat production batches.
