1. Engineering & Optical Overview

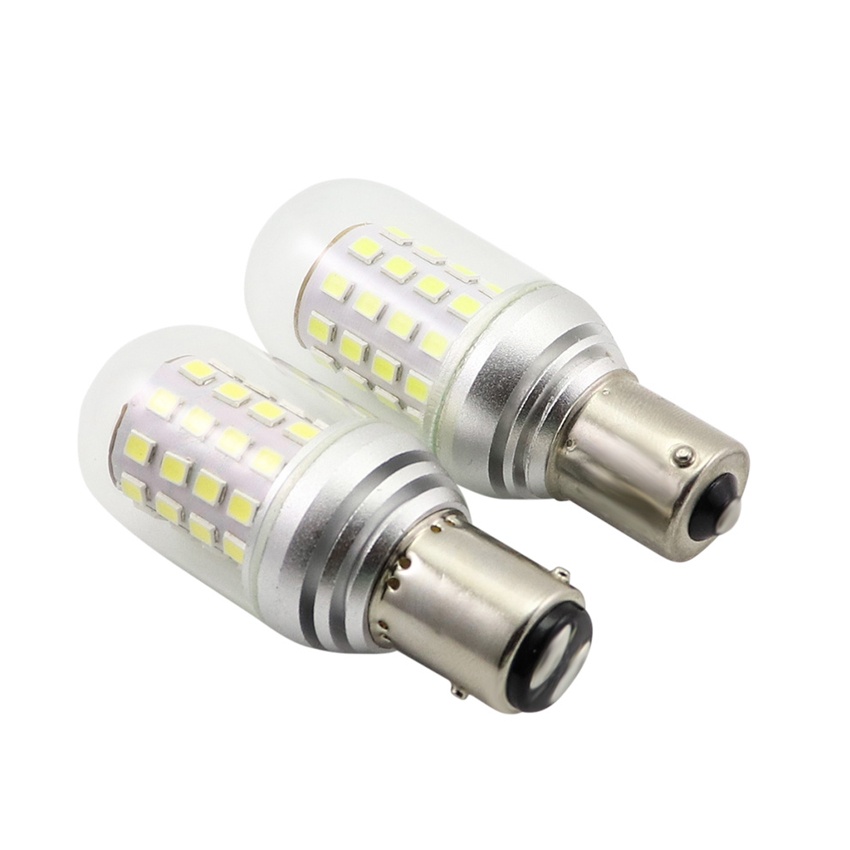

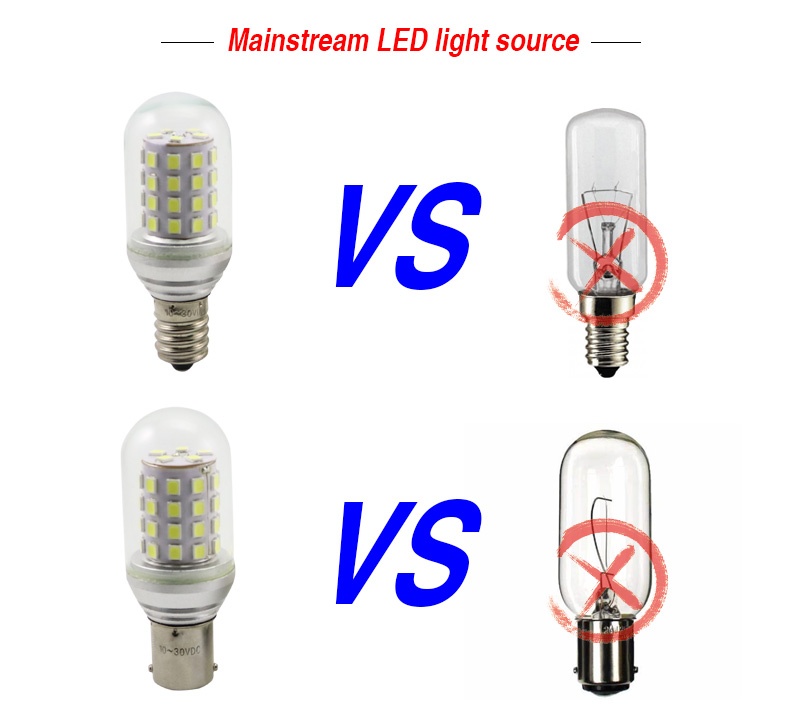

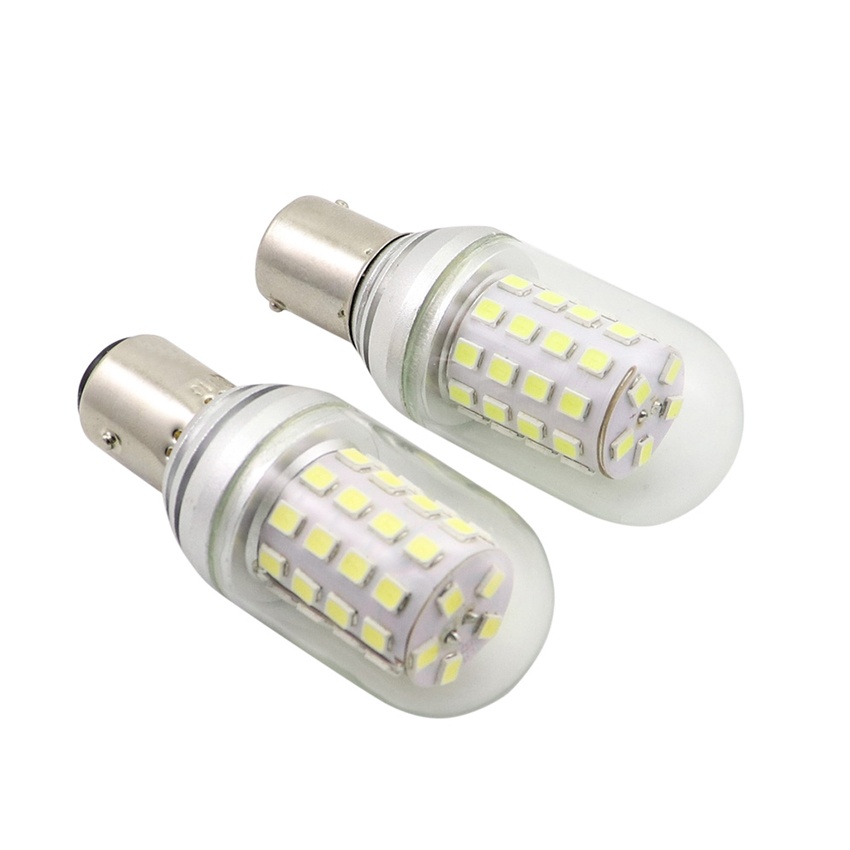

The T25C-45L Heavy-Duty LED Marine Bulb is MIDCARS’ high-lumen, commercial-grade upgrade for ships, navigation beacons, locomotives, and demanding industrial signaling equipment. Engineered to replace power-hungry and fragile 40W incandescent bulbs, it incorporates 45x high-output SMD 2835 LEDs deployed in a 360-degree cylindrical column and top cluster, generating 500 lumens of brilliant, omnidirectional illumination at a modest 5.0W power draw.

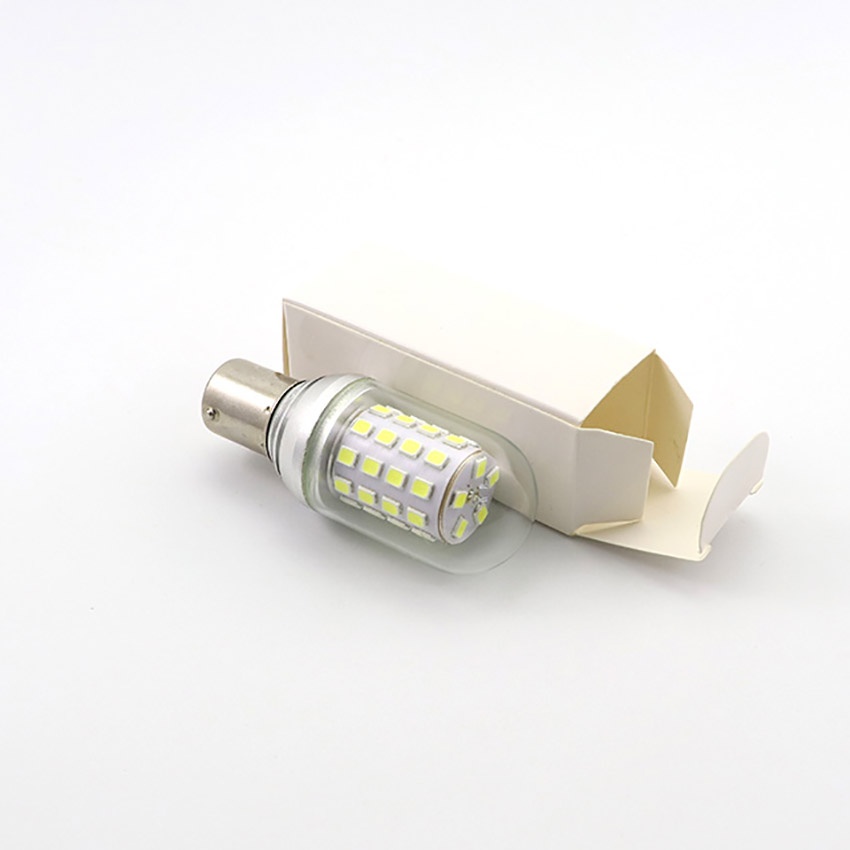

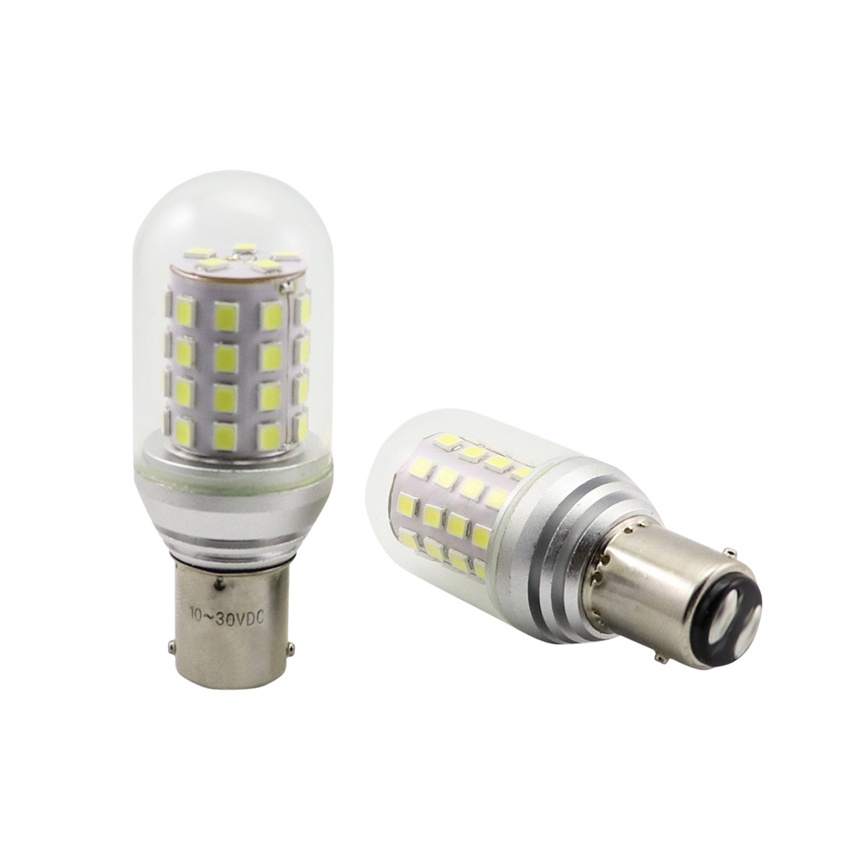

Built into a larger Φ25mm × L65mm (T25) envelope with an integrated aviation aluminum cooling core and an impact-resistant clear polycarbonate (PC) protective dome, the T25C-45L delivers superior thermal dissipation during continuous 24/7 commercial operation. Designed with an insulated dual-contact base (single-intensity floating ground, not for automotive brake lights), it is available in both BA15d (parallel pins) and BAY15d (staggered offset pins) to fit heavy-duty marine navigation lanterns and industrial fixtures worldwide.

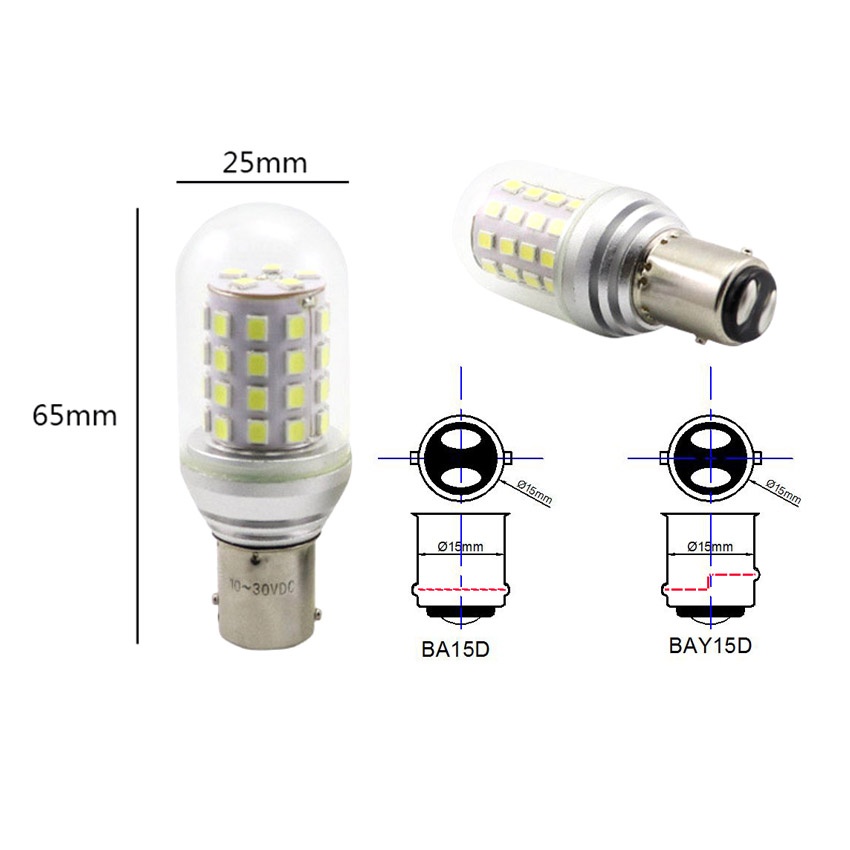

2. Engineering Blueprints & Optical Verification
The T25C-45L provides substantial energy savings, rugged shock resistance, and rich color options for specialized commercial signaling:
3. Key Electrical & Thermal Advantages
- High Luminous Output (500LM): 45 pieces of SMD 2835 LEDs deliver wide, penetration-grade beam output replacing standard 40W marine incandescent bulbs.
- Dual Bayonet Base Availability: Manufactured in BA15d (parallel locating pins) and BAY15d (offset pins) to match both symmetrical and indexed sockets.
- Enhanced Thermal Body (T25 Form Factor): Heavy-duty aluminum core allows continuous 5W full-power dissipation, maintaining lumen maintenance over a 30,000+ hour operational lifespan.
- Discrete High/Low DC Drivers: Discrete constant-current ICs available in 10-36VDC (12V/24V marine battery loops) and 48-80VDC (industrial equipment and locomotive loops).
4. Maritime & Industrial Equipment Cross-Reference
The T25C-45L directly retrofits traditional commercial lighting sockets across maritime and heavy industry:
- Commercial Watercraft & Ships: Masthead, stern, anchor lanterns, tow lights, and port/starboard navigation fixtures requiring high luminous reach under COLREGs guidelines.
- Railway & Locomotive Equipment: Cab gauge illumination, marker lamps, and passenger car vestibule lights running on 75VDC auxiliary battery circuits.
- Electric Forklifts & Material Handling: Safety lamps, warning beacons, and masthead lights on electric forklifts, AGVs, and reach trucks powered by 48V, 72V, or 80V industrial battery packs.
- Heavy Industrial Machinery: Signal towers, crane boom indicators, and electrical control consoles demanding vibration-resistant 24V or 48V bayonet lighting.
5. Primary Industrial & Commercial Application Scenarios
Ship Navigation & Masthead Lanterns
Anchor lights, masthead lanterns, and stern beacons on commercial ships and tugboats demanding 500LM 360° visibility in harsh sea spray environments.
Railway Passenger Cars & Locomotives
Auxiliary interior lighting, vestibule warning lights, and locomotive control consoles powered by 75VDC rolling stock battery loops.
Marine Engine Room Bulkhead Fixtures
Enclosed marine brass bulkhead lamps and deck task fixtures exposed to heavy mechanical vibration, salt air, and thermal cycling.
Electric Forklifts & Material Handling
Safety warning beacons, perimeter lamps, and mast indicator fixtures on 48V, 72V, and 80V warehouse electric forklifts and material handling equipment.
Heavy Crane & Industrial Signal Towers
High-visibility signal columns, plant status indicators, and heavy crane warning lamps requiring robust 24V or 48V bayonet illumination.
6. B2B OEM & Custom Manufacturing Capabilities
As an integrated LED entity manufacturer in Dongguan, China, MIDCARS supports custom requirements for marine suppliers and fleet operators:

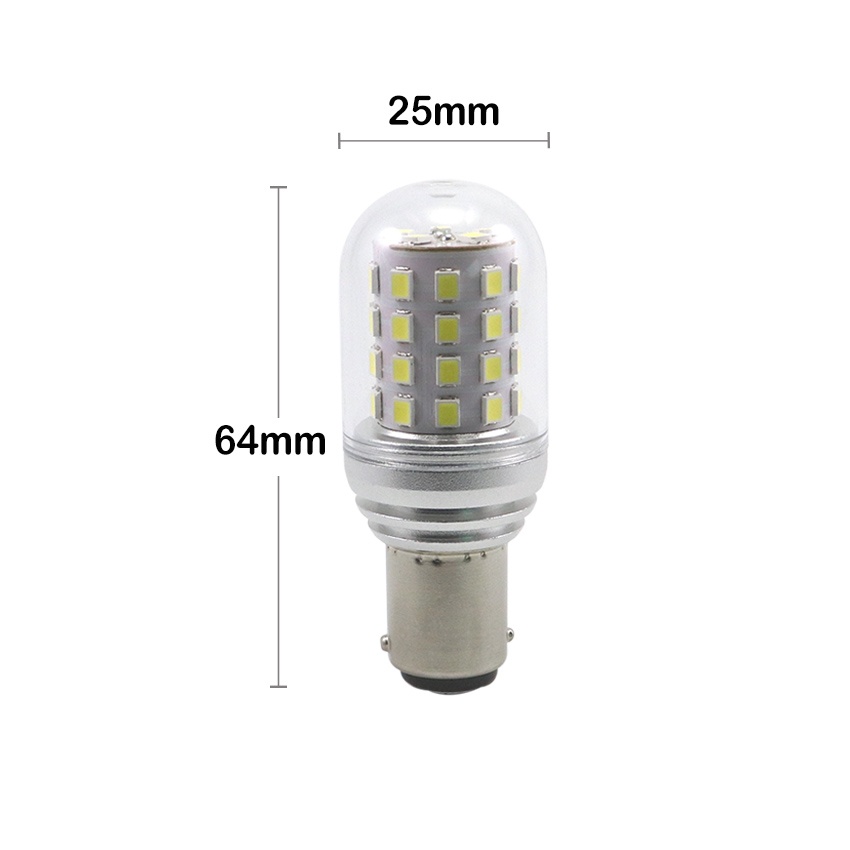

- Base Configurations: BA15d (parallel pins) and BAY15d (staggered pins) produced with anti-corrosion nickel-plated brass base barrels.
- Custom Voltage & Circuit Tuning: Discrete DC drivers engineered to match specific vessel or locomotive voltage profiles with integrated surge suppression.

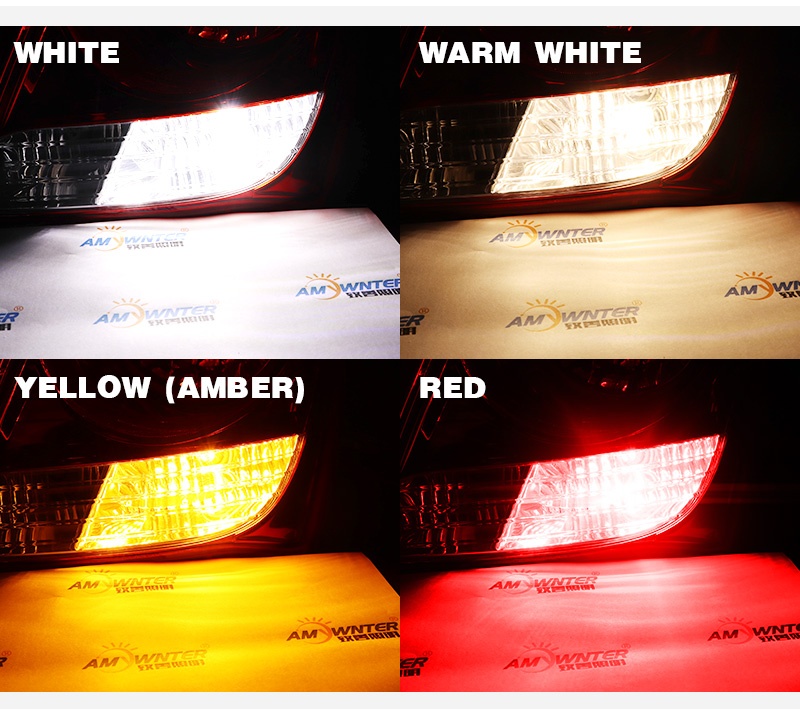

- Wavelength & Packaging: Available in 6500K Xenon White, 3000K Warm White, Amber Yellow, or Signal Red; neutral bulk export cartons or custom private-label blister packaging.
7. Frequently Asked Questions (FAQ)
Check the side locking pins on your socket or bulb. BA15d features two pins directly opposite each other at the same height (180° parallel). BAY15d has two pins at staggered (offset) vertical heights to enforce keyed, one-way installation. Both feature a 15mm base diameter and dual bottom electrical contacts.
The 10-36VDC version is engineered for 12V and 24V marine battery systems and solar loops, maintaining steady 500LM output across alternator charging cycles. The 48-80VDC version is engineered for heavy equipment and railway rolling stock (75VDC locomotive loops), equipped with high-breakdown components to suppress voltage transients.
No. This bulb is a single-intensity (single brightness) marine and industrial lamp with an insulated dual-contact power feed (floating ground). It does not feature the dual-circuit (high/low dual filament) wiring required for automotive brake lights (1157 dual-mode), and must not be used in automotive brake applications.
Standard neutral factory packaging is available from 5 pairs for evaluation testing. For private-label custom branding (custom blister card or four-color retail box), the minimum initial packaging print run is 5,000 pieces, which is pre-funded and stored in our warehouse, then drawn down across repeat production batches.
