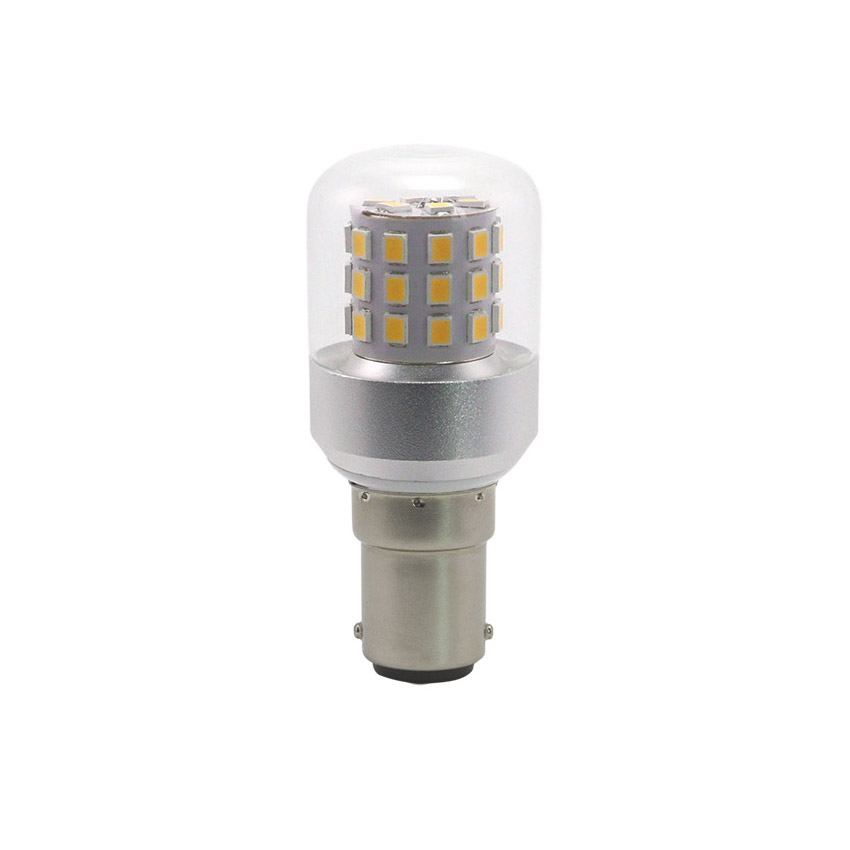

BA15D tubular marine and appliance LED replacement bulb 5W 500LM studio showcase
<
BA15D tubular LED bulb standing front perspective with clear PC dome and bayonet base

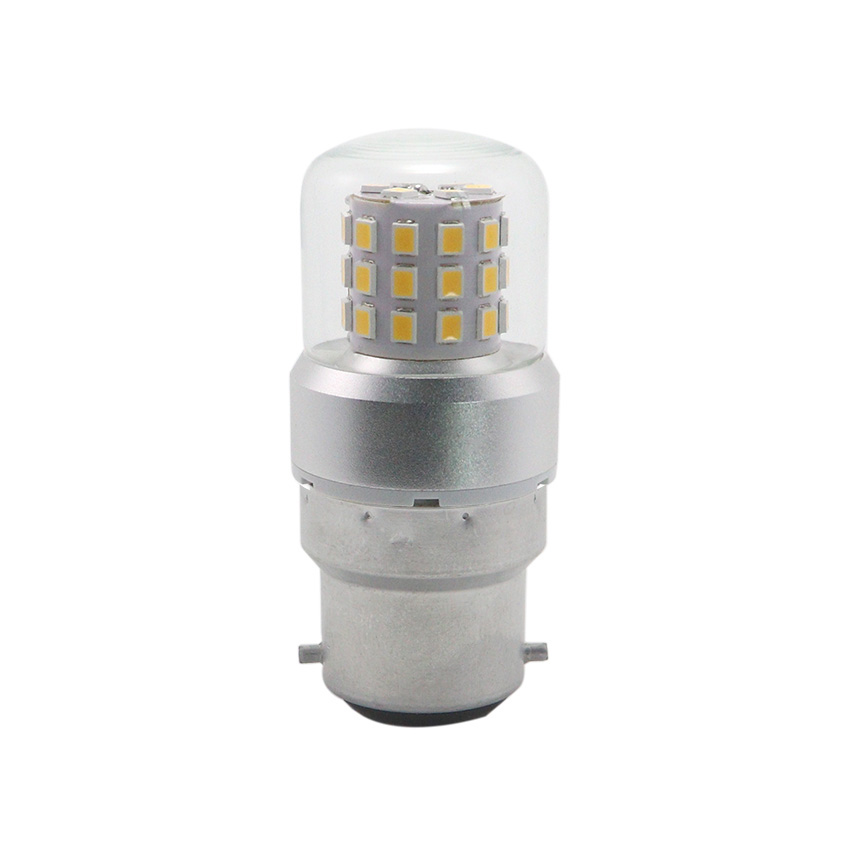

BA15D LED tubular replacement lamp standing profile with aluminum heat sink body
BA15D LED appliance bulb illuminated showing 360-degree cylindrical light dispersion

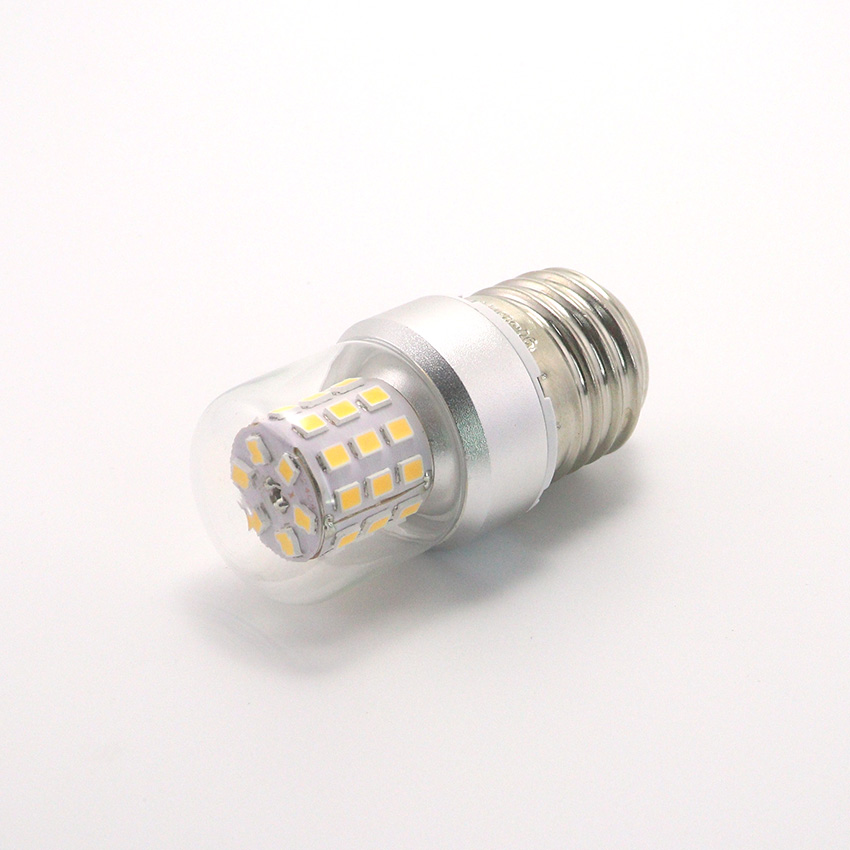

BA15D LED tubular lamp internal 39 SMD 2835 radial emitter array and aluminum core
>
Cross Reference / Direct Replacement
40W BA15D / B22 Incandescent
50W Halogen Marine & Sewing
BA15D Boat Interior Light
B22 Bayonet Marine Berth Lamp
E14 / E27 Appliance Retrofit
100-240V Universal AC/DC Mains

BA15D / B22 Tubular Marine & Appliance LED Bulb 5W 500LM (100-240V) - E14 / E27

Factory-direct BA15D and B22 tubular marine and appliance LED bulb 5W 500LM replacing 40W-50W incandescent lamps. Features Φ27-30x66mm compact envelope with BA15D, B22, E14, E27 bases and 100-240VDC-AC universal driver.
Product Model: T30-B15-39L
Socket / Base: BA15D / B22 / E14 / E27 Multi-Base Options
Bulb Dimensions: Φ27mm - Φ30mm Diameter × 66mm Length (T30 Tubular Profile)
Operating Voltage: 100-240VDC-AC (Universal Marine & Mains Compatibility)
Power Consumption: 5.0W High-Output (40W - 50W Incandescent Equivalent)
Luminous Flux: 500 LM (360° Omnidirectional Uniform Distribution)
Color Temperature: 6500K Xenon White / 3000K Warm White / 4500K Neutral White
LED Emitters: 39× SMD 2835 LEDs (Ra ≥ 80 High Color Rendering Index)
Enclosure / Body: Aviation Aluminum Heat Sink Core + Optical Polycarbonate (PC) Dome
Primary Uses: Marine Cabin Berths, Boat Interior Lights, Sewing Stations, Range Hoods
Quality & Warranty: CE (EMC Compliant), RoHS | 2 Years Factory Warranty
Factory B2B Terms: Standard: from 5 pairs | Custom Packaging: Packaging run MOQ 5,000 pcs (pre-funded and drawn down across repeat orders)
Inquire Now Next Product
×
🔍+ 🔍- 100% 💡 Scroll to Zoom | Drag to Move | Double-Click to Reset | Press ESC to Exit
  • Product Details

Market Positioning & Marine/Appliance Applications

The T30-B15-39L is a heavy-duty, high-output tubular LED replacement bulb engineered primarily with BA15D (double-contact parallel bayonet) and B22 (standard British bayonet) sockets. Generating a powerful 500 lumens at only 5.0W power consumption, it directly supersedes 40W to 50W energy-wasting halogen and incandescent lamps, slashing power draw while operating cool to the touch.

Supporting a genuine 100-240VDC-AC universal driver without voltage-step compromise, this compact cylindrical lamp (Φ27mm-Φ30mm × 66mm) addresses critical replacement demands across marine and industrial appliance sectors:

  • Marine Interior & Boat Shore-Power Cabins: Withstands coastal humidity and vibration in yacht berth reading lights, ship engine compartment indicators, and galley ceiling downlights powered by 110V/230V shore power or shipboard inverters.
  • Industrial & Domestic Sewing Equipment: Directly replaces traditional BA15D push-and-twist tungsten bulbs in industrial sewing machines (Singer, Brother, Bernina, Janome) where high vibration rapidly breaks fragile tungsten filaments.
  • Kitchen Range Hoods & Over-The-Range Microwaves: Resists continuous cooking steam, oil vapor, and blower vibrations while providing brilliant daylight illumination over stove workspaces.
  • Commercial Showcase & Machine Pilot Stations: High color fidelity (Ra ≥ 80) and zero infrared thermal emission protect display goods from heat degradation.

Aviation Aluminum Thermal Structure & Multi-Base Architecture

Continuous 5W output requires dependable thermal management. The T30-B15-39L incorporates an internal aviation aluminum core heat sink that efficiently channels heat away from the 39 radial SMD 2835 LEDs. The shatterproof clear optical polycarbonate (PC) dome provides rugged physical protection against moisture, dust, and mechanical contact.

While tailored for BA15D and B22 installations, this modular platform is also produced in E14 and E27 screw formats, providing OEM lighting distributors with a single, interchangeable high-lumen cylindrical bulb solution across global electrical standards.

Dimensional Specifications Across 4 Base Options

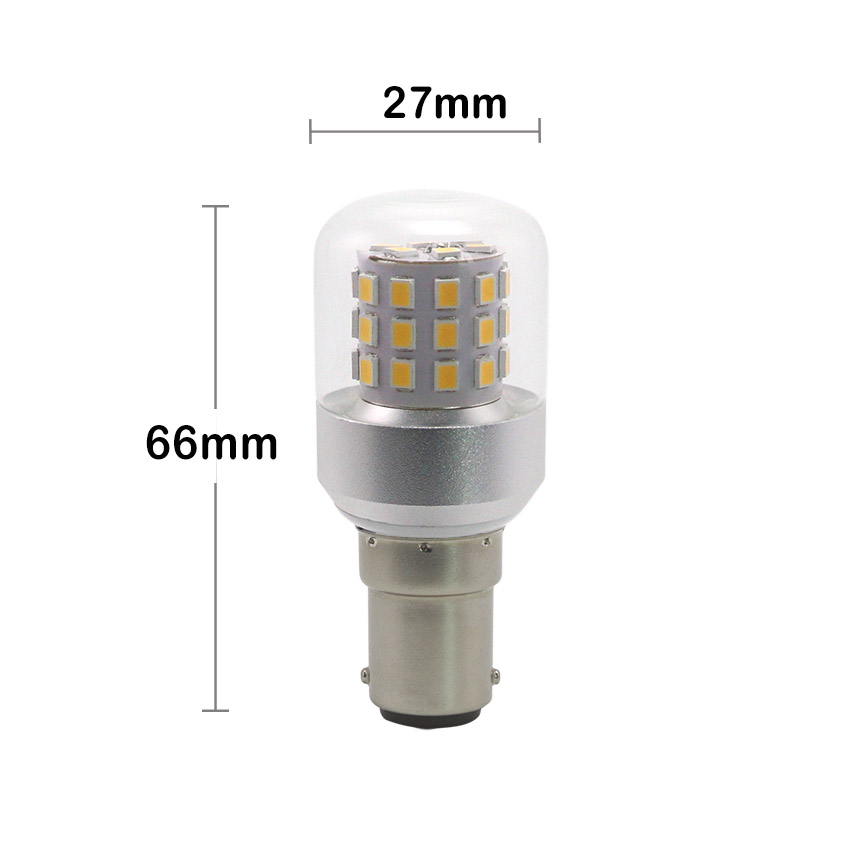

T30 BA15D LED bulb dimensional blueprint showing D27x66mm with BA15D dual contact base

BA15D Dual Contact Base

Φ27mm × 66mm profile for marine cabins and industrial sewing fixtures.

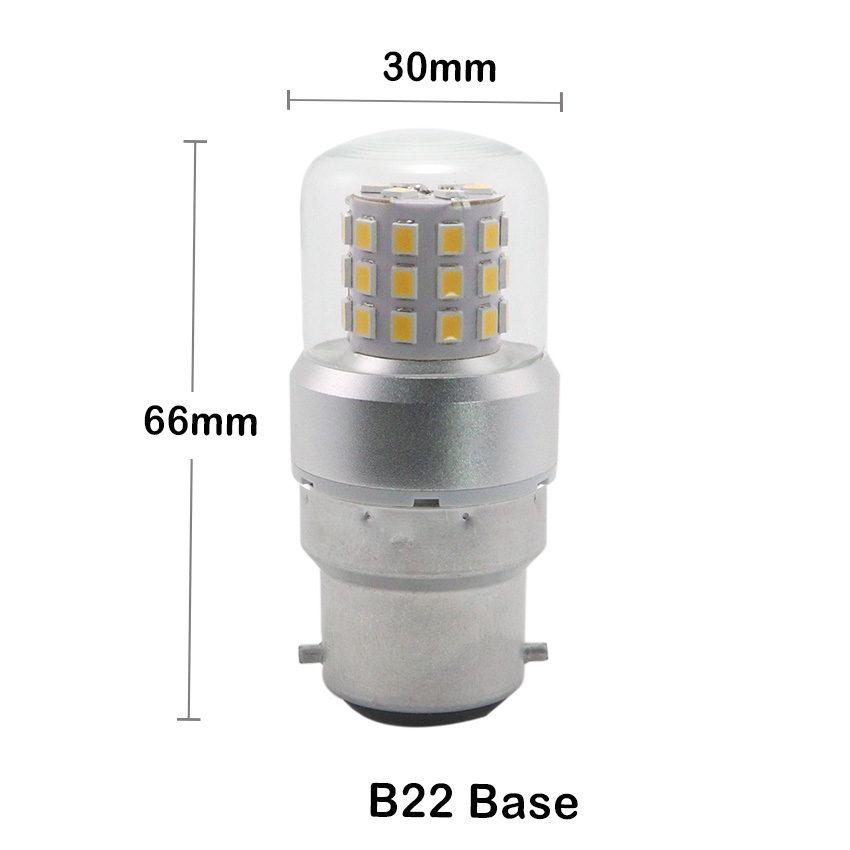

T30 B22 LED bulb dimensional blueprint showing D30x66mm with B22 dual locking pins

B22 Bayonet Dual Pin

Φ30mm × 66mm profile for British, Australian, and marine bayonet sockets.

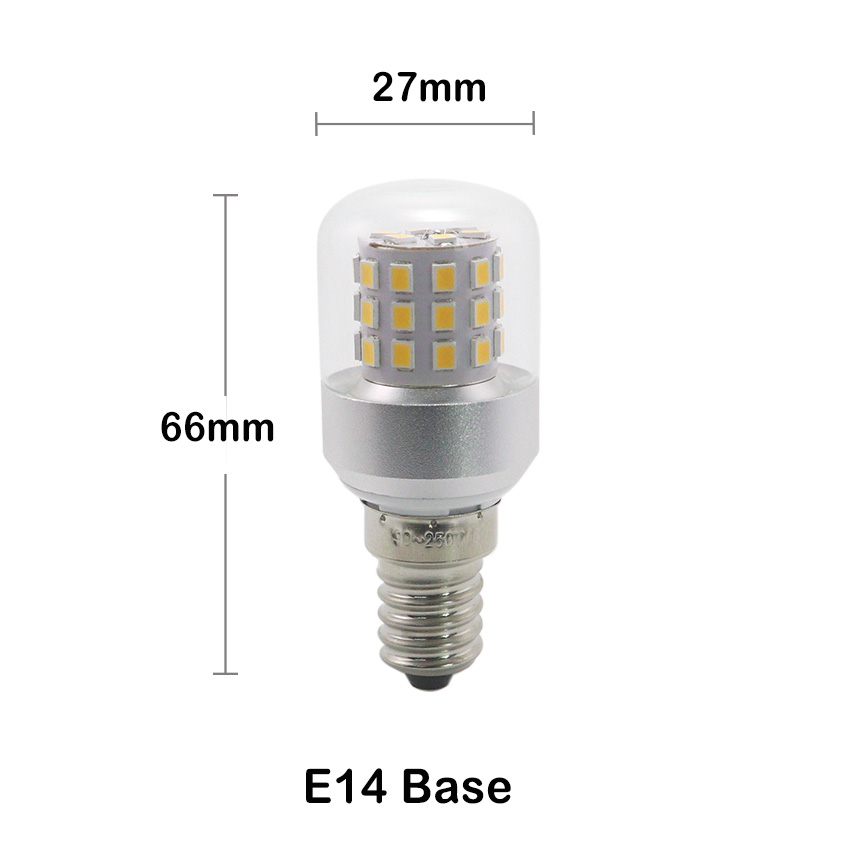

T30 E14 LED bulb dimensional blueprint showing D27x66mm with E14 small Edison screw

E14 Small Edison Base

Φ27mm × 66mm overall profile for standard European appliance fittings.

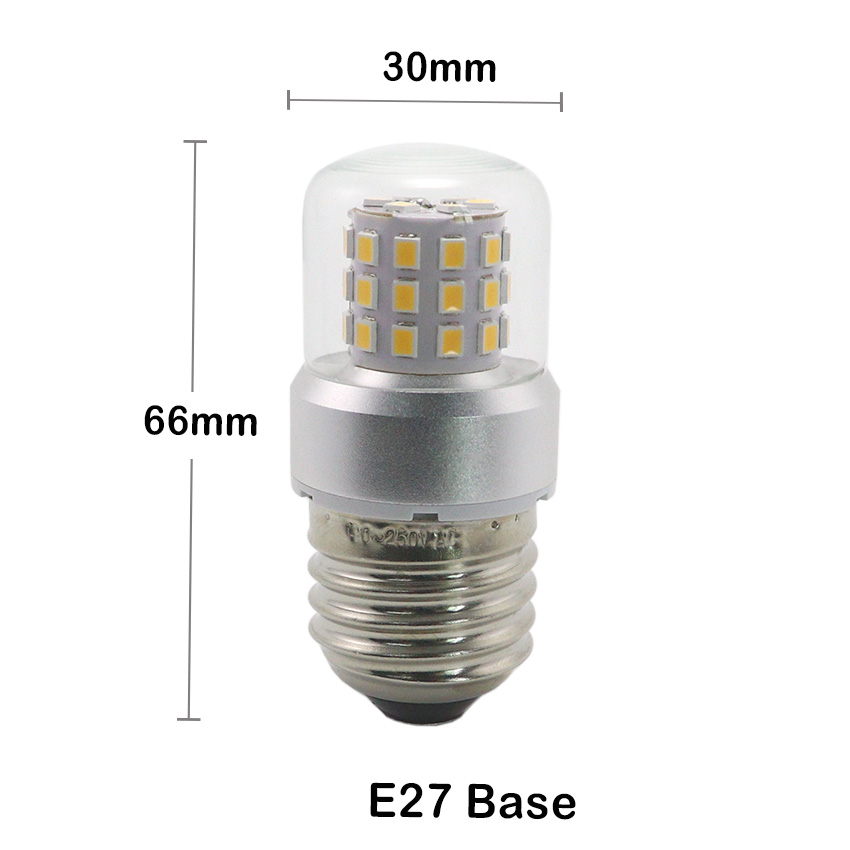

T30 E27 LED bulb dimensional blueprint showing D30x66mm with E27 medium Edison screw

E27 Medium Screw Base

Φ30mm × 66mm profile for standard full-size domestic appliance sockets.

Photometric Uniformity & Optical Clarity

The radial arrangement of 39 SMD 2835 LEDs ensures 360-degree cylindrical dispersion without blind spots. High color rendering (Ra ≥ 80) guarantees natural color accuracy for marine navigators, precision seamstresses, and domestic users alike.

Frequently Asked Questions

Why are BA15D and B22 bayonet bases popular for marine and high-vibration equipment?
Bayonet bases utilize mechanical push-and-twist locking pins that physically lock into socket slots. Unlike screw-in bases that can gradually back out under continuous motor vibration, boat engine rumble, or wave chop, BA15D and B22 bayonet connections remain firmly locked in place, ensuring continuous contact and preventing arcing.
Is this 100-240V bulb compatible with sewing machines and appliance fixtures worldwide?
Yes. The intelligent universal AC/DC constant-current driver automatically regulates power across 100V, 110V, 120V, 220V, 230V, and 240V mains supplies. It directly replaces BA15D incandescent sewing machine bulbs and microwave range hood lamps across North America, Europe, Australia, and Asia without flickers or voltage mismatch.
What are the exact dimensional differences between the base options?
All four variants share an identical 66mm overall height. The E14 and BA15D versions feature a slim Φ27mm outer dome profile, while the E27 and B22 versions utilize a Φ30mm outer diameter to accommodate the larger socket collar. Both formats fit easily into narrow tubular appliance enclosures.
What is the minimum order quantity (MOQ) and packaging policy for wholesale export?
Standard stock configurations are available with a sample trial MOQ from 5 pairs. For customized retail packaging (blister cards, double blister, or bespoke branded color boxes), our packaging print run MOQ is 5,000 pcs. The client pre-funds the custom packaging batch, which is safely stored in our warehouse and drawn down across rolling repeat production orders.
