3156-3157 LED Bulb Series

Factory-direct 3156/3157 LED bulbs (T25 base) for turn signal, brake and tail lights. Single and dual filament, CANbus available.

3156 / 3157 LED Bulbs: P27W & P27/7W Wedge Turn Signal, Brake & Tail Light Replacements

The 3156 and 3157 are the two most widely used plastic-wedge bulbs in North American and Japanese vehicle lighting, found on cars, SUVs, pickup trucks, trailers, and motorcycles. They share the same W2.5x16d wedge base but differ in function: the 3156 (P27W) is a single-contact, single-function bulb for turn signals, reverse lights, and daytime running lights, while the 3157 (P27/7W) is a dual-contact, dual-function bulb that combines brake and tail light, or turn signal and running light, in one housing. MIDCARS manufactures the full 3156/3157 family in-house — standard, CANbus error-free, and dual-color switchback versions — to cover every replacement and upgrade scenario.

3156 vs 3157: What's the Difference?

The two bulbs look nearly identical and share the same wedge dimensions, so they will physically seat in each other's sockets — but they are electrically different. The difference comes down to the number of contacts and circuits each bulb drives.

Feature3156 (P27W)3157 (P27/7W)
Base typeW2.5x16d wedge — single-contactW2.5x16d wedge — dual-contact
CircuitSingle circuit (one function)Dual circuit (two functions)
Brightness levelsOne levelBright (brake/turn) + dim (tail/running)
Typical useTurn signal, reverse, DRLBrake + tail combo, switchback turn + DRL
Common cross-referenceP27W, 3156AP27/7W, 3157A

Both share the same W2.5x16d wedge shape, but the contact count differs: a single-contact socket drives only one function, and a dual-contact socket drives two. The same family also covers variants such as 3057, 3357, 3457, 3757, 4057, 4157, 4156, and 4114. Always match the contact count to the socket, and check the owner's manual or the marking on the old bulb before ordering.

Important: the 3156/3157 wedge base is not the same as the 1156/1157 bayonet base. The 3157 uses a plastic W2.5x16d wedge, while the 1157 uses a metal BAY15d bayonet with offset pins — the two are physically and electrically different and are not interchangeable.

How to Choose the Right 3156 / 3157 LED Bulb

  1. Confirm single or dual function. One function (turn signal, reverse, DRL) = 3156 / P27W; two functions (brake + tail, or turn + running) = 3157 / P27/7W.
  2. Check the contact count. Count the metal contacts on the old bulb or look inside the socket — one contact is single, two is dual.
  3. Voltage. Standard automotive is 12V; trucks and heavy-duty vehicles often run 24V. We build both 12V and 24V versions.
  4. Color temperature. 6500K white for crisp modern output, 3000K warm white for a classic halogen look, and 1800K amber for turn signals that require amber output.
  5. CANbus or non-CANbus. CANbus (error-free) versions include a built-in load to stop hyper-flash and dashboard warnings on vehicles with lamp-out detection; non-CANbus suits simple circuits and classic vehicles.

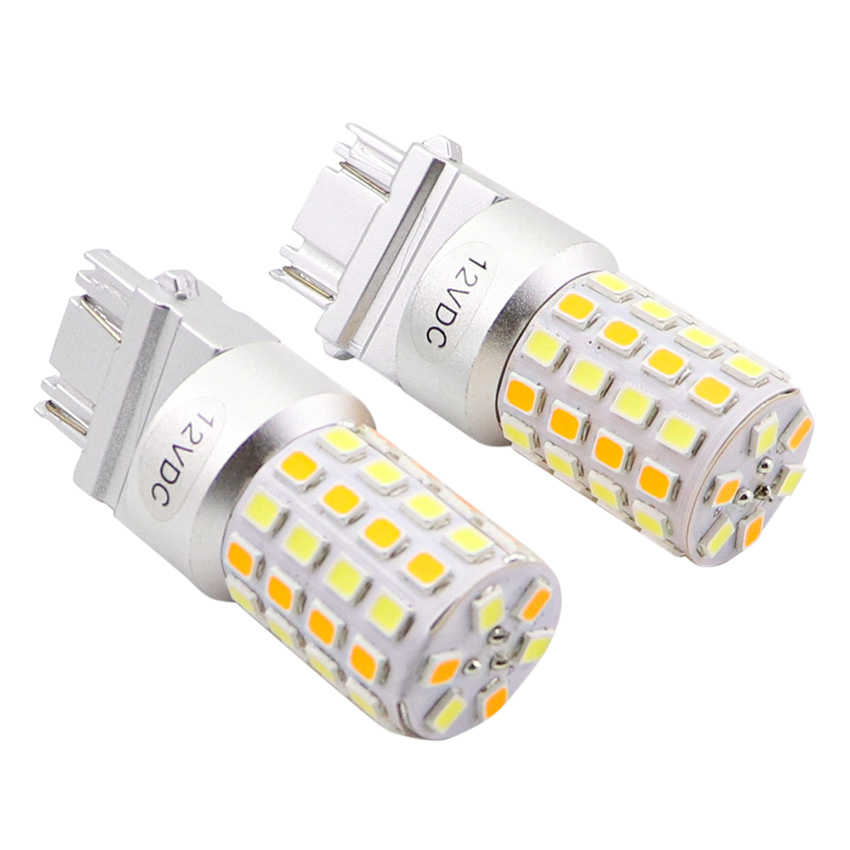

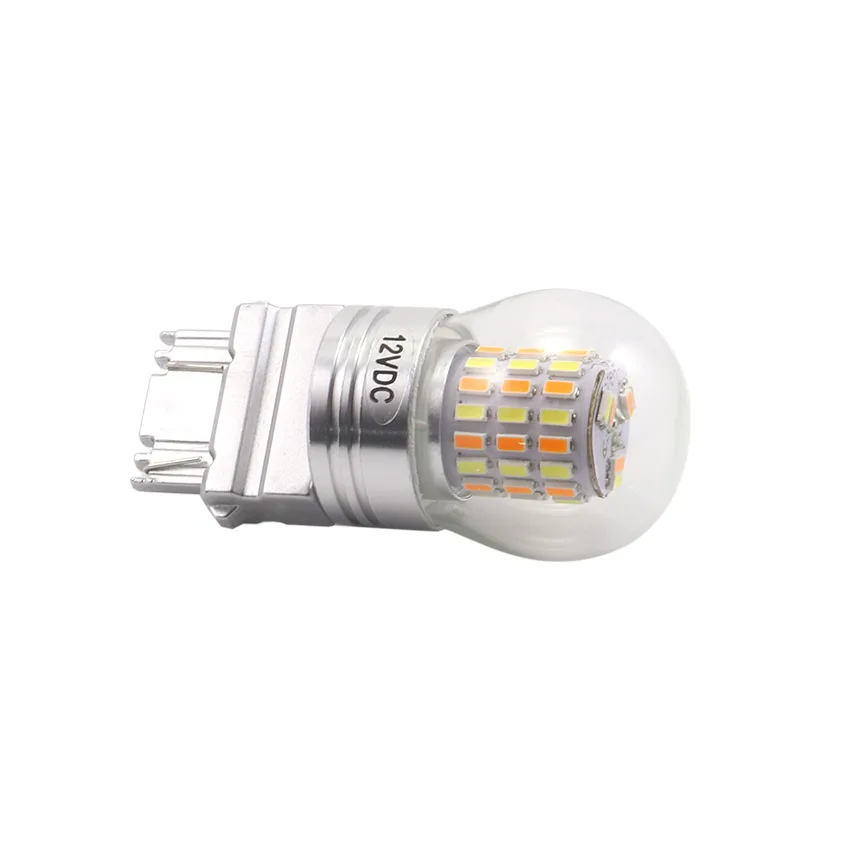

  6. Standard or switchback. Dual-color switchback versions show white as a running/DRL light and automatically switch to amber when you signal. Some switchback models use an external ACC wire for universal single/dual-filament fit, while wireless versions are built for dual-filament sockets — confirm with us before ordering.

Common Applications

  • Front and rear turn signals
  • Brake and tail light combinations
  • Reverse / backup lights
  • Daytime running lights (DRL)
  • Trailer, RV, and motorcycle lighting
  • 24V truck and heavy-duty vehicle lighting

Why Source 3156 / 3157 LED Bulbs from MIDCARS

  • Factory-direct manufacturing in Dongguan, China — no middlemen, competitive wholesale pricing, and full control over quality.
  • Certified compliance — CE-LVD, CE-EMC, and RoHS certificates with full test reports available to verified buyers.
  • CANbus error-free versions that eliminate hyper-flash and dashboard warnings.
  • Dual-color switchback options for white/amber two-in-one upgrades.
  • Long lifespan and instant full brightness with low heat, ideal for continuous brake and turn-signal cycling.
  • Flexible ordering — standard stock from 5 pairs; custom packaging available with a 5,000-piece packaging MOQ drawn down across repeat orders.

LED vs Halogen: Why Upgrade to LED?

LED bulbs light up instantly—critical for brake lights, where the fraction-of-a-second faster response gives following drivers more reaction time and reduces rear-end collision risk. LEDs also run cooler, last far longer than halogen filaments, draw less power, and resist the vibration and constant cycling that quickly kills halogen bulbs in turn-signal and brake duty.

Can I use a 3157 in a 3156 socket?

The two share the same W2.5x16d wedge shape, so they will physically seat — but the 3157 has two contacts and the 3156 socket has one. In a single-contact socket the 3157 will only light one function, and in a dual-contact socket a 3156 will miss the second function. Match the contact count to the socket for correct behavior.

Is the 3157 the same as the 1157?

No. The 3157 uses a plastic W2.5x16d wedge base with two side contacts, while the 1157 uses a metal BAY15d bayonet base with offset pins. Despite the similar number, the two bases are physically different and are not interchangeable. Always confirm whether your vehicle takes a wedge or a bayonet bulb.

Which color temperature is best for turn signals?

Most regions require amber output for turn signals through an amber lens or amber LED. We recommend 1800K amber for signaling, or a dual-color switchback version when you want white running light and amber turn signal in one bulb.

What is your minimum order quantity?

Standard stock starts from 5 pairs for testing and sampling. For custom packaging, the packaging run has a 5,000-piece MOQ, which is pre-funded and drawn down across your repeat orders. Contact sales02@zhishanled.com for a quotation.
