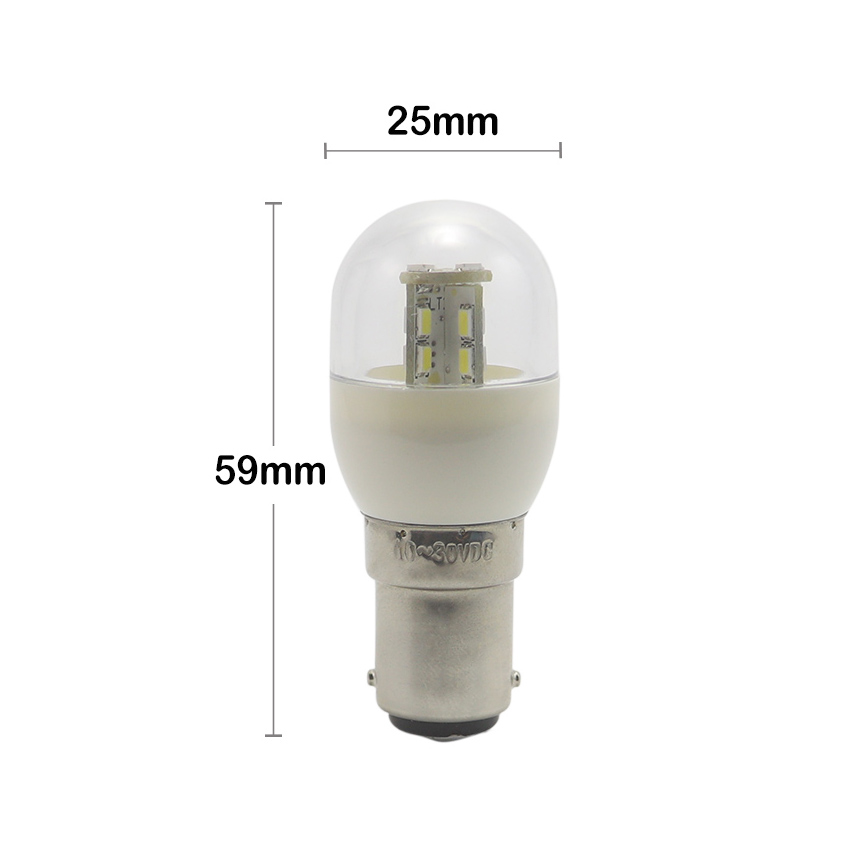

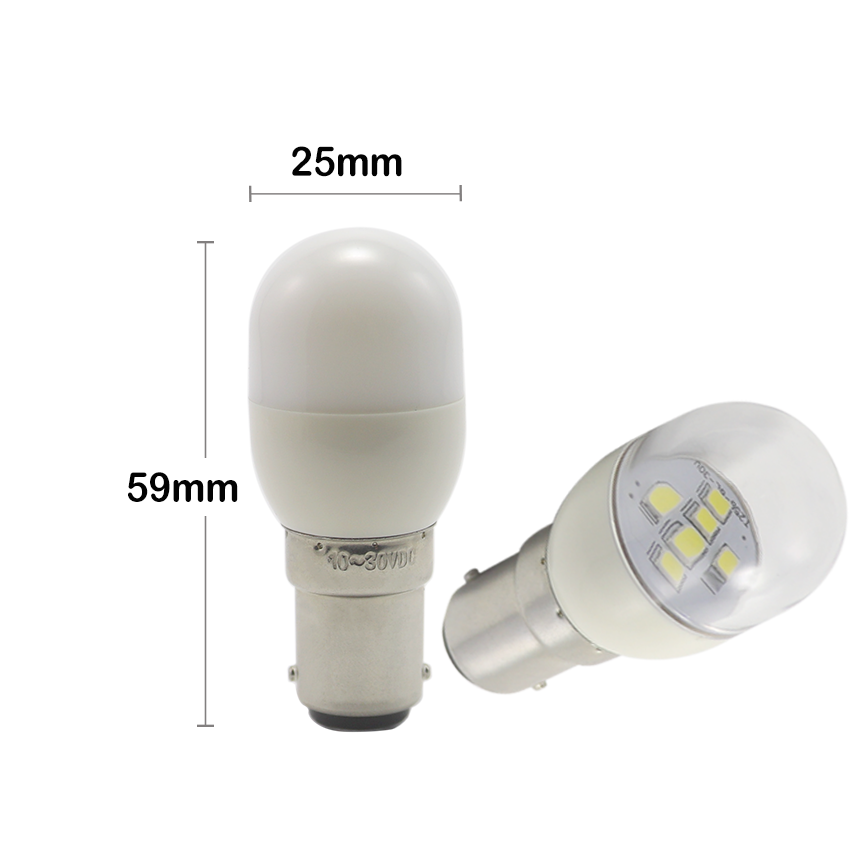

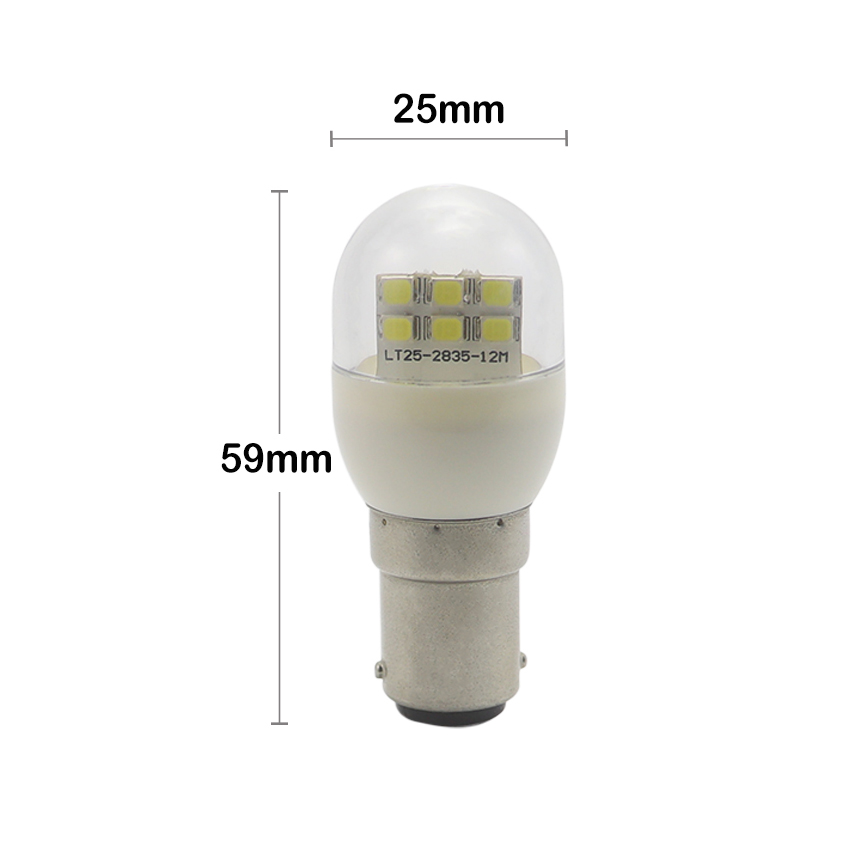

T25 Marine Led Bulb
The T25 Marine LED Bulb is a specialized lighting solution designed for boats, yachts, and other marine environments where durability, brightness, and waterproof performance are essential. Built to withstand harsh sea conditions, the T25 LED bulb offers stable illumination, low energy consumption, and long service life compared to traditional halogen bulbs.
Whether used for navigation, cabin lighting, or exterior fixtures, the T25 Marine LED Bulb ensures reliable performance in wet, salty, and vibration-heavy environments.
Energy-saving and environmentally friendly.
Featuring an aluminum heat sink housing, the wick features a 360-degree luminous design. It comes with a PC lampshade and is IP66 waterproof.
It offers sufficient power without false claims. Multiple voltage options are available.
It utilizes a constant-current IC power supply with a wide-voltage drive design and complies with CE and RHOS certifications.
Lamp Base Type: BA15d, BAY15D
This is a very common dual-contact, bayonet-style lamp base that secures by twisting approximately 1/4 turn after insertion.
The "d" designates the two contacts, one thicker and one thinner, with a polarization design to prevent mis-insertion and ensure correct installation orientation.
This is the main difference from the BA15s (which has identical contacts).
Operating Voltage: 10-30VDC and 48-80VDC
This indicates it is designed for DC power environments and is ideal for 12V, 24V, and 48V DC systems powered by batteries (such as boats, cars, and RVs).
Light Source Type: LED (Light Emitting Diode)
An internal array of multiple yellow LED chips provides high-brightness, uniform light.
Key Features and Benefits of T25 Marine Led Bulb
Energy Efficiency:
LED technology converts the majority of electrical energy into light, rather than heat, consuming far less power than traditional incandescent bulbs.
Extremely Long Life: LEDs lack filaments, are shock and vibration resistant, and offer a lifespan of tens of thousands of hours, significantly reducing maintenance and replacement frequency.
Low Voltage Safety: Operating at a safe voltage, they avoid the risks associated with high voltage, making them particularly suitable for humid marine environments.
Plug and Play: A direct replacement for traditional incandescent bulbs, they can be upgraded without changing the existing lamp holder or wiring.
Typical Application Scenarios of T25 Marine Led Bulb
This T25 Led Bulb is primarily used in applications requiring low-voltage, high-reliability indicators:
Marine: Dashboard indicators, switch backlights, navigation lights, anchor lights, etc., both inside and outside the cabin.
Automobiles/Trucks: Dashboard indicators and switch button lights.
Industrial Equipment: Status indicators for control cabinets and control panels.
RVs/Campers: Indicators for various internal devices.
T25 LED Bulb vs Traditional Marine Bulbs
| Feature | T25 Marine LED Bulb | Halogen Bulb |
|---|---|---|
| Energy Consumption | Low | High |
| Lifespan | Long (30,000+ hrs) | Short |
| Heat Output | Low | High |
| Waterproof Performance | High | Limited |
| Vibration Resistance | Excellent | Weak |
Designed for DC power systems such as marine systems, the BA15d interface LED indicator lights offer energy-saving, long life, safety, and reliability,
making them a perfect modern upgrade for traditional incandescent bulbs.
