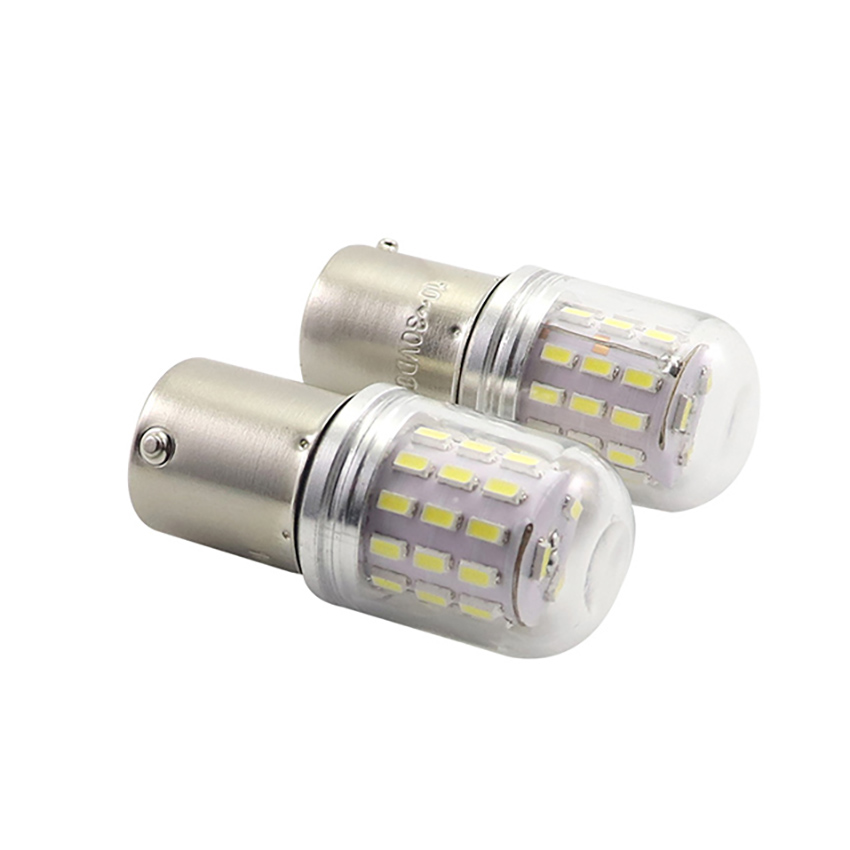

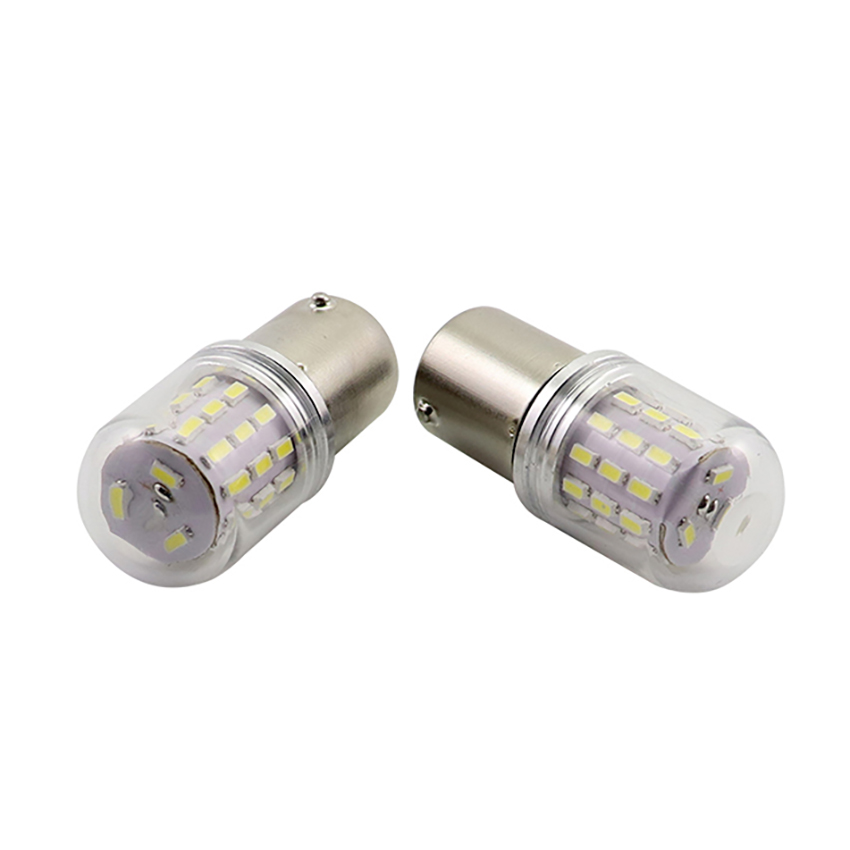

The MIDCARS G18C-39L is an upgraded, high-output G18 miniature globe LED bulb engineered for demanding automotive, commercial fleet, material handling, and marine lighting fixtures. Operating at 2.8W with 39 high-density SMD 3014 LEDs, it delivers an impressive 260 Lumens of uniform 360-degree radial illumination. This upgraded power profile provides higher circuit current draw to overcome low-wattage bulb-out dashboard warnings on sensitive vehicle electrical circuits where standard low-power LED replacements may trigger false OBC fault alerts.
Three Precision Socket Base Configurations

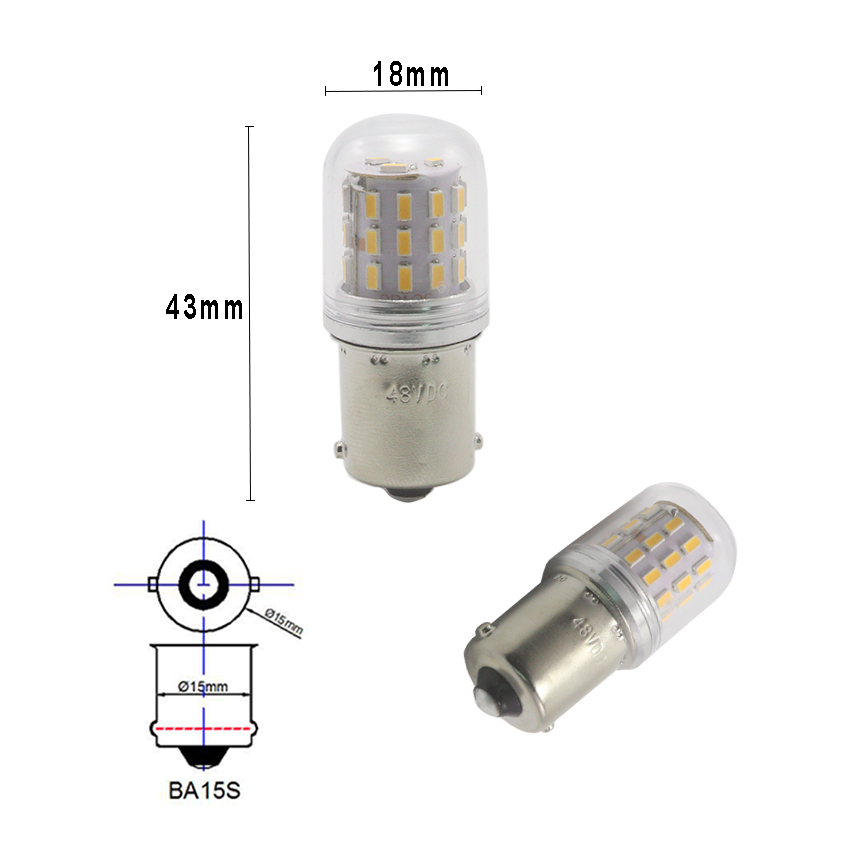

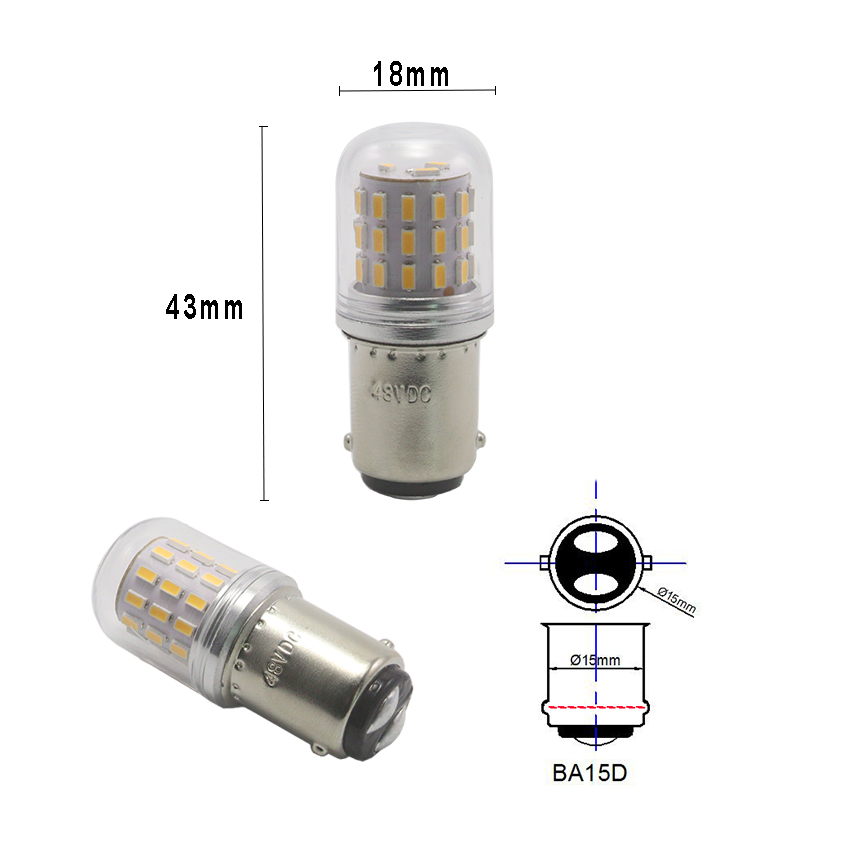

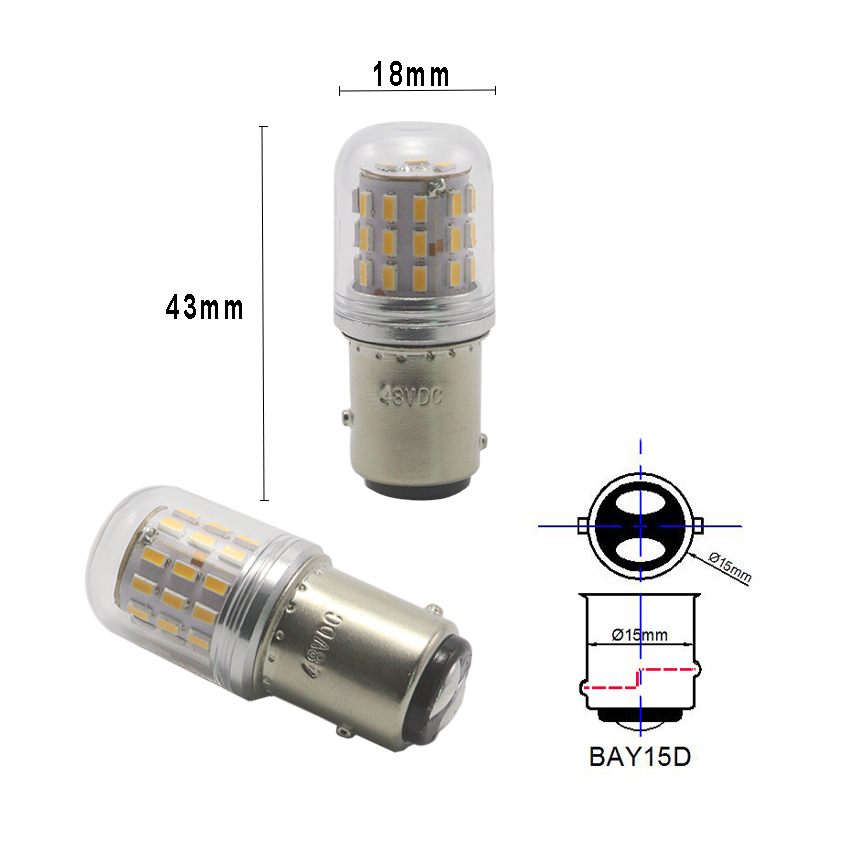

To accommodate diverse industrial machinery, commercial vehicle lamp assemblies, and marine navigation light housings, the G18C-39L is manufactured in three standardized mechanical base variants. Below are the engineering dimensional blueprints for each base type:
Optical Engineering & Robust Construction

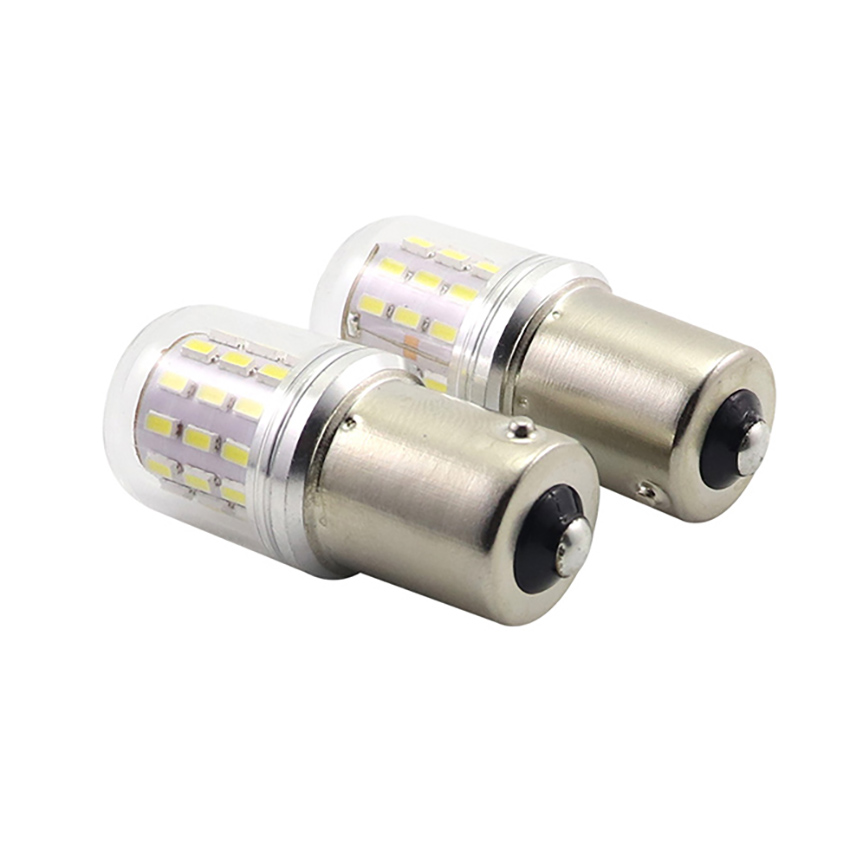

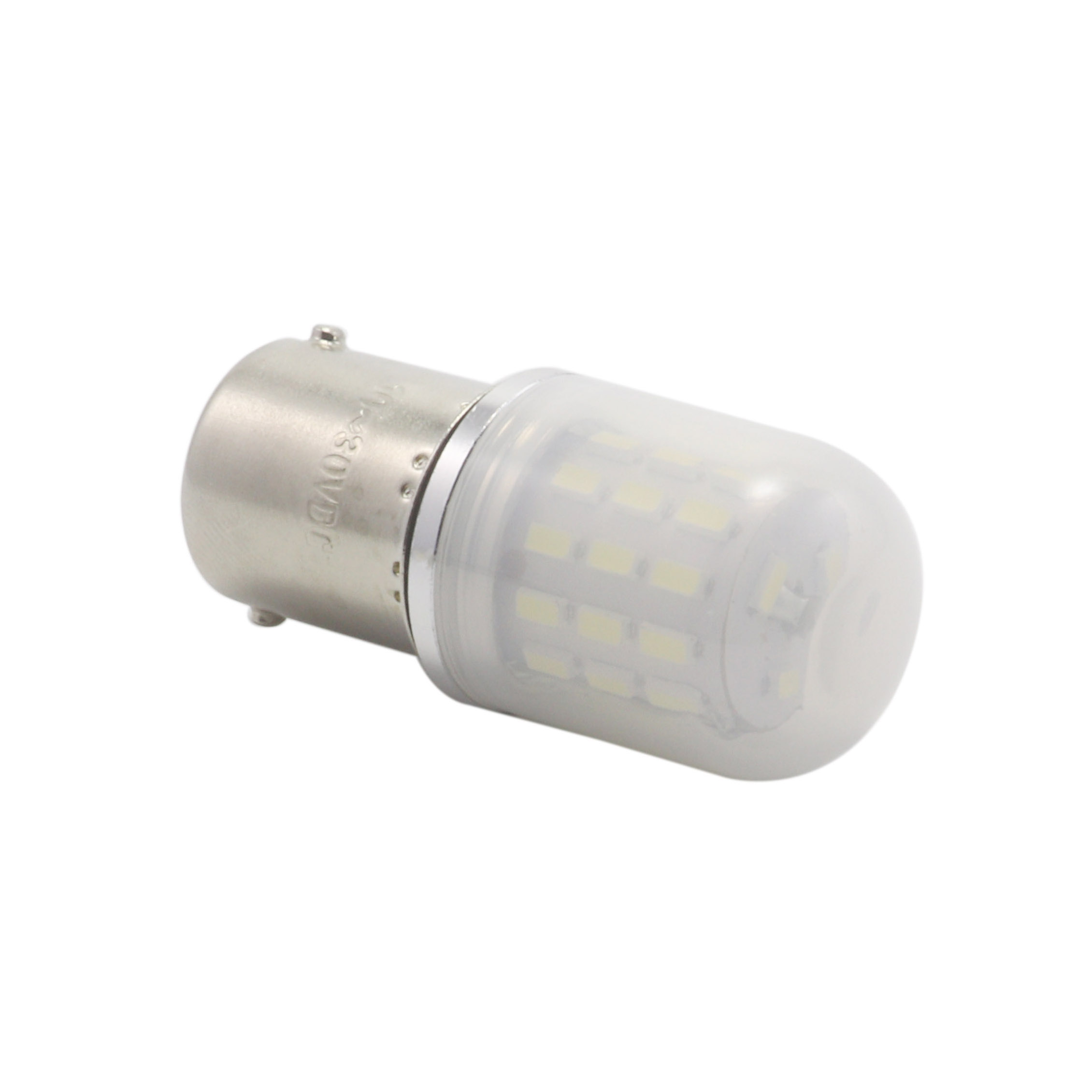

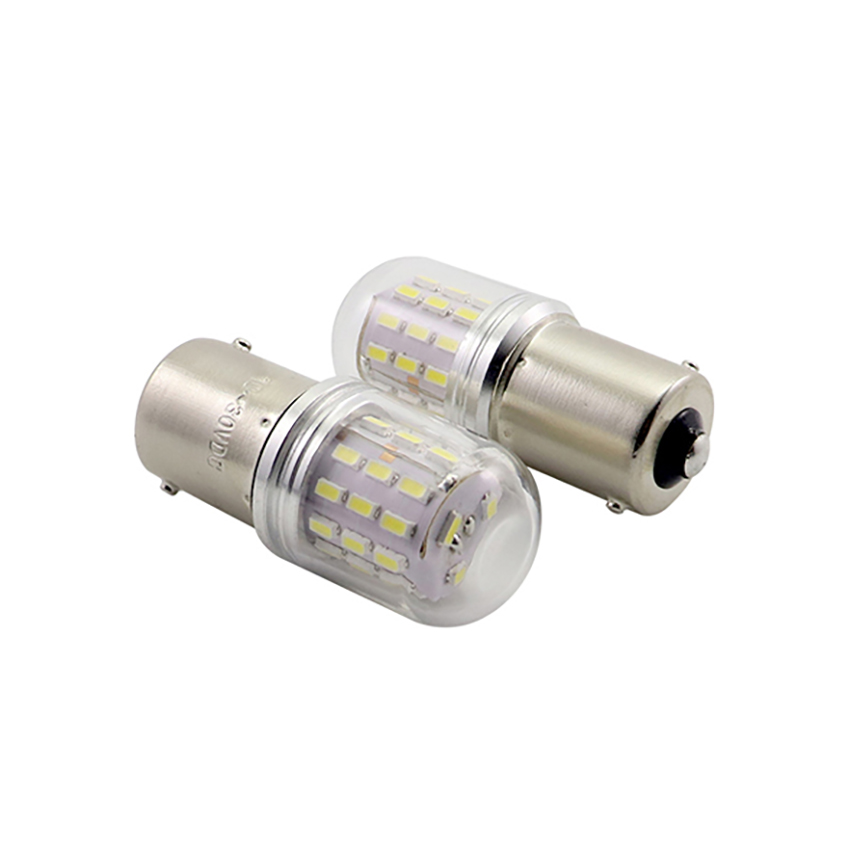

The G18C-39L incorporates 39 surface-mounted SMD 3014 LEDs arranged in a cylindrical radial formation with top-firing emitters. This configuration replicates the focal filament geometry of conventional incandescent bulbs, ensuring full 360-degree light distribution without blind spots or harsh shadowing. A high-clarity polycarbonate (PC) enclosure completely seals the internal electronics against dust, road spray, vibration, and mechanical shock. For diffuse illumination requirements, an anti-glare frosted PC lens option is readily available upon request.
Discrete Voltage Platforms for Multi-Industry Deployments
Rather than relying on vulnerable broad-range drivers that generate excess heat, MIDCARS engineers discrete electrical configurations optimized for maximum efficiency, thermal stability, and prolonged service life:
- 6-15V DC Automotive & Powersports: Calibrated for 12V automotive marker lights, motorcycle tail lamps, and license plate illuminators.
- 10-36V DC Commercial Fleet & Marine: Equipped with active spike protection to withstand electrical transients in 24V heavy-duty trucks, trailers, buses, and marine 12V/24V battery systems.
- 48-80V DC Industrial & Material Handling: Specifically engineered for electric forklifts, reach trucks, and warehouse utility vehicles running high-voltage DC battery packs.
Comprehensive Factory Customization & OEM Services
We support standard product orders starting from 5 pairs for laboratory testing and market evaluation. For full custom-branded packaging (color boxes or blister cards), the minimum packaging material print run is 5,000 units. Clients can pre-fund the packaging inventory, which is held in our warehouse and drawn down across subsequent repeat orders, allowing flexible smaller production batches without repackaging overhead. Custom laser etching on metal bayonet bases, private label blister cards, and tailored color temperature binning are available upon request.
Frequently Asked Questions
Q1: How does the 2.8W G18C-39L prevent low-power bulb-out warnings on European vehicles?
Standard low-wattage LED bulbs (1.0W-1.5W) draw insufficient electrical current, causing sensitive on-board computer (OBC) CANBus systems to falsely report burned-out R10W bulbs. The G18C-39L operates at an optimized 2.8W with 39 high-density LEDs, generating sufficient circuit load to satisfy current-sensing circuits in most European marker and license plate systems without requiring external splice-in load resistors.
Q2: What is the difference between BA15s, BA15d, and BAY15d base options?
BA15s features a single center bottom contact and 180° parallel pins for standard automotive R5W/R10W sockets. BA15d has dual bottom contacts with 180° parallel pins, widely specified in marine 12V/24V navigation fixtures (GE #90, #1004, #1142). BAY15d has dual contacts with offset height indexing pins (1157 / P21/5W) for dual-function automotive brake/tail lamps or marine masthead lights. Please verify socket pin geometry prior to ordering.
Q3: Can this bulb operate safely on 24V commercial trucks and 48V electric forklifts?
Yes. Unlike generic broad-range drivers that overheat under continuous loads, MIDCARS manufactures discrete voltage architectures. Order the 10-36V DC version for commercial 24V fleet trucks and marine battery banks (with integrated transient voltage spike suppression), or the dedicated 48-80V DC version specifically engineered for electric warehouse forklifts and utility equipment.
Q4: What are the sample MOQ and custom packaging policies for B2B distributors?
We support standard sample evaluation orders starting from 5 pairs. For customized retail packaging (OEM blister cards or full-color boxes), the minimum packaging print run is 5,000 pieces. Clients can pre-fund the packaging inventory, which is warehoused at our facility and drawn down across smaller scheduled repeat bulb production runs without repackaging setup surcharges.
