G18 BA15S BAU15S Dual-Color Switchback LED Bulb (54-SMD 3014, Replaces R5W R10W RY10W for Motorcycle & Car)
<
G18 BA15S BAU15S Dual-Color Switchback LED Bulb Front View
G18X-54L14 Compact LED Bulb for Motorcycle R5W R10W RY10W
G18 Dual Color LED Bulb 54-SMD 3014 LEDs and Aluminum Core
G18 LED Bulb Dual Base Pins and 60cm ACC Power Lead Wire
G18 Motorcycle LED Switchback Bulb with T1 Wire Tap Connector
G18X-54L14 Sealed Waterproof Silicone Gasket and Socket Detail
>
Cross Reference / Direct Replacement
R5W / R10W (BA15S 180° Parallel Pins)
RY10W (BAU15S 150° Offset Pins)

G18 BA15S BAU15S Dual-Color Switchback LED Bulb (54-SMD 3014, Replaces R5W R10W RY10W for Motorcycle & Car)

The MIDCARS G18X-54L14 is a compact G18 BA15S/BAU15S switchback dual-color LED bulb with external ACC power wire and 54x SMD 3014 LEDs. It delivers 200 LM 6500K Pure White DRL and 300 LM Amber turn signals across DC 12-24V, with weatherproof aviation-grade aluminum body. Direct replacement for R5W/R10W/RY10W motorcycle turn signals.
Product ModelG18X-54L14
Socket / BaseBA15S (R5W / R10W 180° Parallel Pins) & BAU15S (RY10W 150° Offset Pins). White DRL via external 60cm ACC wire, Amber turn via socket contact. Aftermarket/retrofit installation. Base Selection: Available in BA15S (180° Parallel Pins) or BAU15S (150° Offset Pins) — Please specify when ordering.
Operating VoltageDC 12-24V (Wide Voltage)
Rated PowerWhite DRL: 2.0W | Amber LED: ~3W
Luminous Flux200 LM (DRL White) / 300 LM (Signal Amber)
Color TemperatureWhite: 6500K | Turn Signal Amber: 595-600nm Automotive Amber
LED Emitter54x SMD 3014 LEDs
Waterproof & BodyAviation-Grade Aluminum Substrate + Molded Weatherproof Silicone Gasket Seal
Color OptionsWhite + Amber (Standard), Warm White + Amber, Red + Amber, Dual Amber
Wiring & LogicPlug-and-play bayonet socket for turn signal + 60cm ACC wire with T1 quick wire-tap connector for DRL. Switchback logic: DRL White ON → Turn Amber flashes (White OFF) → Signal OFF (White restores after 1.0s delay)
Quality & WarrantyCE (EMC Compliant), RoHS | 2 Years Factory Warranty
Inquire Now Next Product
×
🔍+ 🔍- 100% 💡 Scroll to Zoom | Drag to Move | Double-Click to Reset | Press ESC to Exit
  • Product Details

Product Overview: G18X-54L14 G18 BA15S / BAU15S Switchback Dual-Color LED Bulb

The MIDCARS&reg; G18X-54L14 is an ultra-compact, high-performance dual-color LED signal bulb specifically engineered for motorcycles and specialty automotive lighting. Built with 54 pieces of high-density SMD 3014 LEDs on an aviation-grade aluminum substrate with molded weatherproof silicone gasket seal to prevent moisture entering the lamp housing, this bulb provides intense 360-degree illumination while drawing ultra-low power.

Designed to directly replace conventional single-contact mini bayonet bulbs (R5W, R10W, RY10W, G18, 5007, 5008), the G18X-54L14 upgrades factory front or rear turn signal housings into a modern synchronized Daytime Running Light (6500K Pure White) and Direction Indicator (595-600nm Signal Amber ) configuration without generating excessive heat.

Official Product Video Demonstration



Real Illumination & Dual-Color Light Pattern

MIDCARS G18X-54L14 Real Illumination 6500K Pure White and Signal Amber Dual Color Pattern

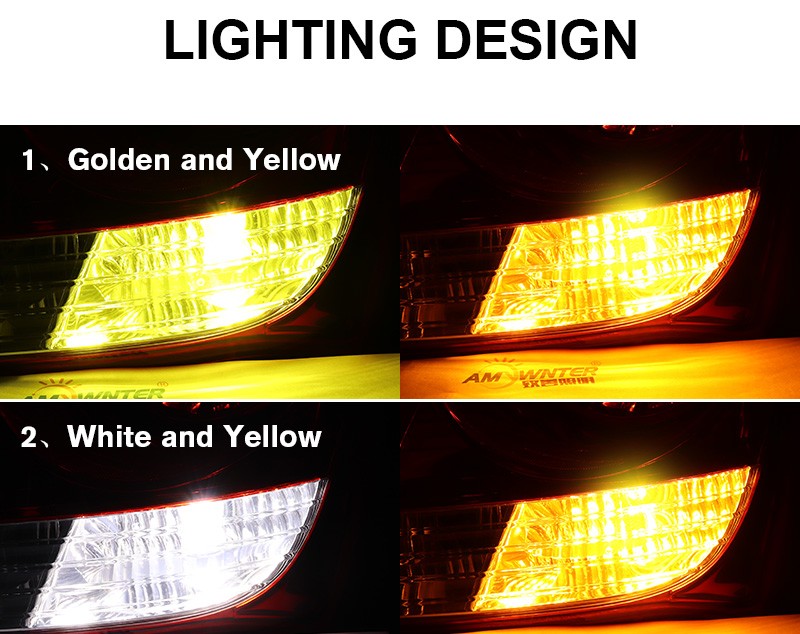

MIDCARS G18X-54L14 White and Yellow Dual-Color Combination

Precision Dimensional Blueprint & Socket Configuration

MIDCARS G18X-54L14 Dimensional Blueprint

Smart Dual-Mode Switchback Illumination Logic

  • Daytime Running Mode (DRL): When ignition or parking lights are switched ON, the external power wire energizes the 54-SMD array in 6500K Pure White for clean, continuous daytime visibility.

  • Turn Signal Activated: When the turn indicator or hazard switch is toggled, the internal circuit immediately suppresses the white light and flashes in 595-600nm Signal Amber at the standard vehicle flash rate.

  • Turn Signal Cancelled: Once the turn signal cancels, the bulb seamlessly restores back to 6500K Pure White DRL after an engineered 1.0-second delay, ensuring complete compliance and modern lighting aesthetics.

⚠ Anti-Hyper Flash Recommendation (Load Resistor):
For motorcycles or vehicles equipped with thermal or mechanical flasher relays that experience hyper-flashing due to the low power draw of LED bulbs, adding an external load resistor is recommended to restore factory-standard flash rates:
 &bull; 12V Systems: Add an external 5W 100 Ohm gold aluminum load resistor (or replace with an electronic flasher relay).
 &bull; 24V Systems: Add an external 5W 300 Ohm gold aluminum load resistor.
 Note: The load resistor must be wired exclusively across the Turn Signal circuit and ground. Never connect a load resistor to the continuously-lit DRL circuit!

Target Applications & Vehicle Compatibility

• Motorcycle Upgrades (Primary Focus)

Ideal for adventure bikes, street bikes, cruisers, and maxi-scooters . Fits models such as BMW® Motorrad (F800, R1200, S1000RR), KTM® Duke & Adventure series, Ducati® Monster & Scrambler, Triumph, Honda, Yamaha.

• Automotive & Commercial Vehicles

Direct replacement for side indicator repeaters, rear auxiliary lamps, and utility lighting in classic European passenger cars, light commercial vans (Fiat, Renault, Iveco), trailers, and heavy equipment.

OEM & B2B Manufacturing Capabilities

  • Laser Marking & Branding: High-precision laser etching of customer brand logo, custom model codes, and batch tracking serials directly on the aluminum base.

  • Packaging Customization: Anti-static bulk blister packs, custom printed color boxes, retail double-blister cards, or white-box OEM wholesale packing.

  • Flexible MOQ: Standard stock configurations supported from 5 pairs; full custom packaging MOQ starts at 2500 pairs.

  • Electrical Customization: Tailored working voltages (e.g., 6V for vintage bikes or 24V for commercial fleet trucks) upon request.

  • Sample Lead Time: Standard stock evaluation samples dispatch within 2&ndash;3 business days; custom prototype batches dispatch within 5&ndash;7 business days.

Compliance Note: CE (EMC) & RoHS certified. Intended for off-road, track, show, or custom retrofit applications. Check your local road regulations regarding dual-color auxiliary lighting before on-road use.

Frequently Asked Questions

What sockets does the G18X-54L14 bulb fit?
It fits BA15S (R5W / R10W, 180° parallel pins) and BAU15S (RY10W, 150° offset pins) mini bayonet sockets, ideal for motorcycle turn signals and car side indicator repeaters.
Does this bulb require external wiring for switchback operation?
It uses a plug-and-play bayonet socket for the turn signal plus a 60cm ACC wire with T1 quick-tap connector that feeds ignition power for the white DRL.
What is the operating voltage range?
DC 12-24V wide voltage, covering both 12V motorcycle / car systems and 24V commercial systems.
What should I do if the turn signal hyper-flashes?
This bulb has no built-in resistor. On thermal / mechanical flasher-relay vehicles, add an external load resistor across the amber turn signal circuit (12V: 5W 100Ω; 24V: 5W 300Ω), or upgrade to an electronic LED flasher relay.
