Product Overview: Low Voltage A60 / G60 LED Bulb with 360-Degree Cross-Type Optical Design

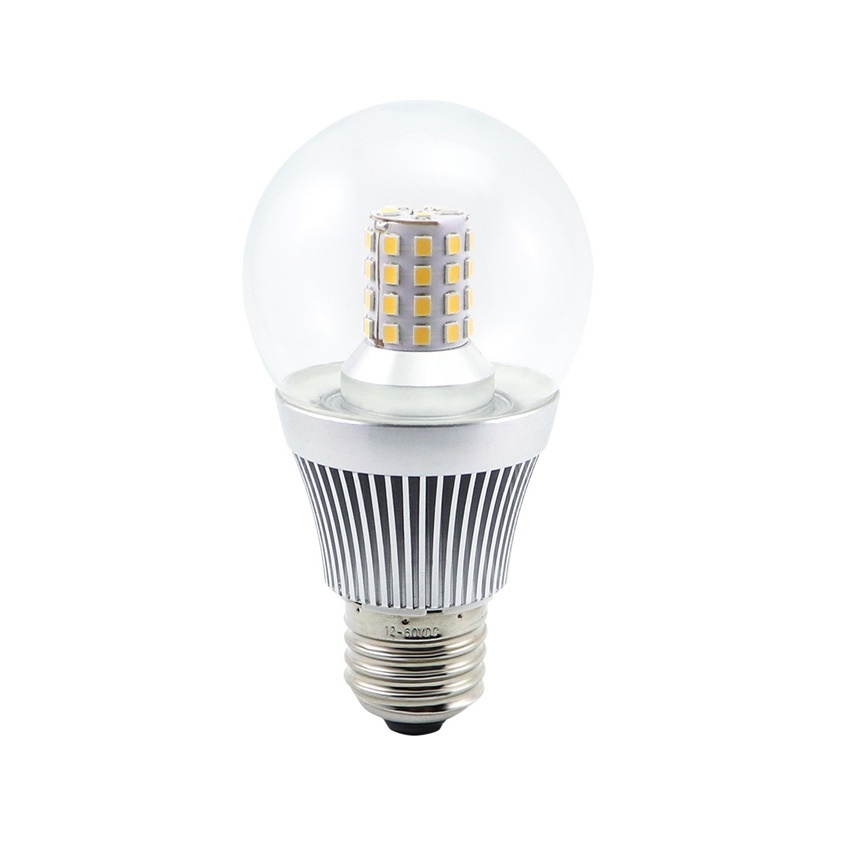

The MIDCARS G60-45L is an industrial-grade low-voltage A60 / G60 LED bulb engineered for demanding battery-powered applications, renewable solar energy systems, agricultural pest management, and industrial electric equipment. Available with standard E27 Edison screw and B22 bayonet cap bases, this heavy-duty bulb draws 9 watts to generate 800 lumens of continuous, omni-directional 360-degree illumination.

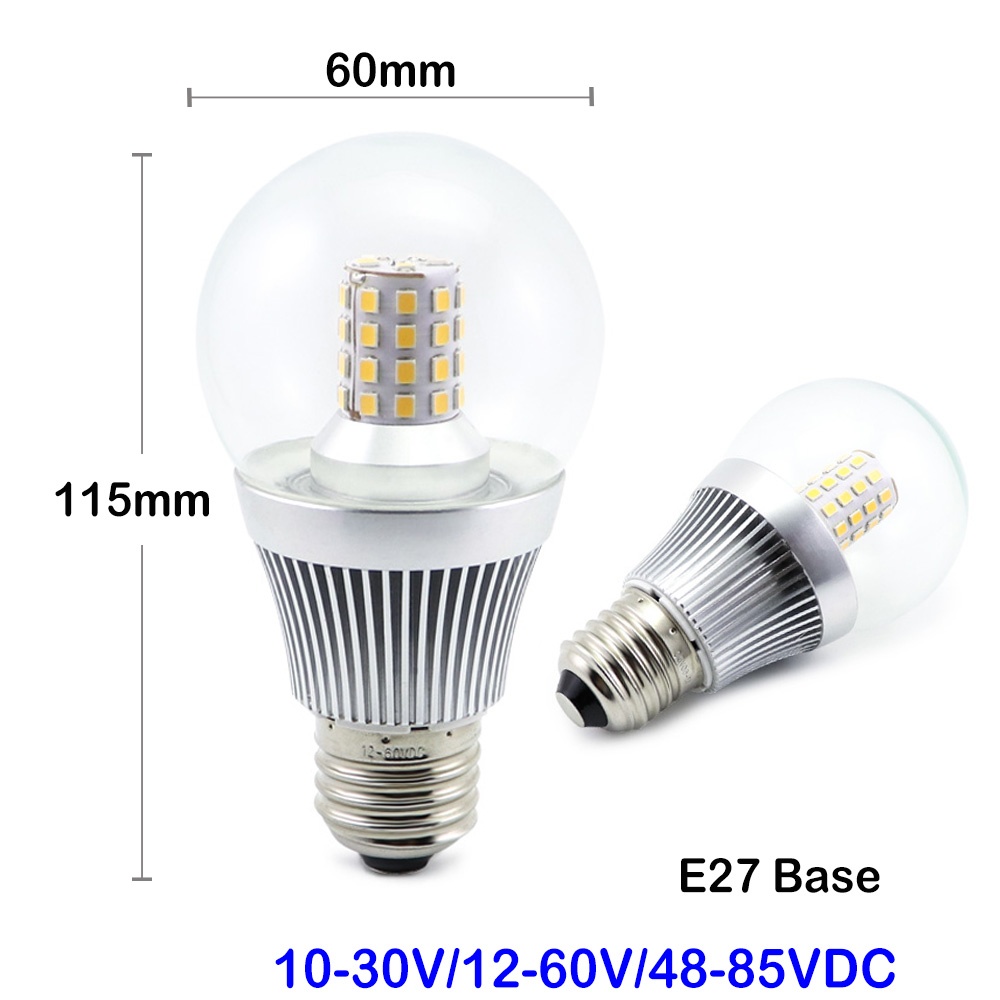

Engineered with a fluted aviation-grade 6063 aluminum heat-dissipating core fused to a high-transmittance clear glass envelope, the G60-45L protects an array of 45 pieces of high-performance SMD 2835 LEDs. The internal solid-state driver is manufactured in two discrete DC voltage configurations: 10–36VDC (optimized for 12V/24V solar, marine, and RV battery banks) and 48–80VDC (engineered for telecom -48V base stations, data center DC power plants, and high-voltage solar storage battery loops).
Optical Engineering & Specialized Applications: 360° Cross Design & Solar Bug Zapper Trapping
Unlike standard directional LED bulbs that cast harsh forward shadows, the G60-45L utilizes a patented cross-type cylindrical pillar architecture that radiates luminous energy uniformly in a complete 360-degree sphere. In addition to commercial pure white (6500K) and warm white (3000K), this model is custom-produced with a specialized UV pest-attraction wavelength specifically designed as the primary lighting core for outdoor solar-powered bug zapper traps in agricultural orchards and rural pest control setups.
Key Optical & Thermal Engineering Advantages
- Full-Sphere 360-Degree Radiation: 45 pieces of high-flux SMD 2835 LEDs are arranged on multi-planar vertical PCB faces, eliminating blind spots and replicating traditional incandescent globe output.
- Dual Discrete Voltage Ranges: 10-36VDC version supports 12V and 24V solar/marine loops; 48-80VDC version handles voltage spikes across 48V telecom base stations, data center DC power plants, and high-voltage solar storage battery banks without driver burnout.
- Fluted Aviation Aluminum Base: Precision-extruded fluted cooling fins maximize convective air cooling, keeping internal diode junction temperatures well below 65°C during 24/7 continuous operation.
- Protective Clear Glass Globe: Sealed against airborne dust, insects, and atmospheric humidity, ensuring long-term optical clarity in outdoor agricultural traps and damp marine engine compartments.
Multi-Sector Industrial & Agricultural Applications
Solar Bug Zappers & Pest Traps
Fitted inside outdoor solar insect-killing grid lanterns, orchard light traps, and tea plantation biological pest control units with specialized UV spectrum emitters.
Off-Grid Solar & Renewable Storage
Direct connection to 12V or 24V solar charge controllers, battery sheds, remote mountain cabins, and off-grid residential living quarters without power inverters.
Telecom & Data Center Power Systems (48V)
Engineered for -48V telecom base stations, data center DC power plants, and high-voltage solar storage battery loops.
Marine Vessels & Low-Voltage Task Lights
Commercial fishing vessels, tugboats, battery-powered workbench desk lamps, and mine tunnel maintenance lamps.
B2B OEM/ODM Customization & Manufacturing Services
As an integrated LED bulb manufacturer in Dongguan, Dongguan Zhishan Electronics provides tailored OEM and private-label customization for lighting distributors, agricultural equipment brands, and solar system integrators:

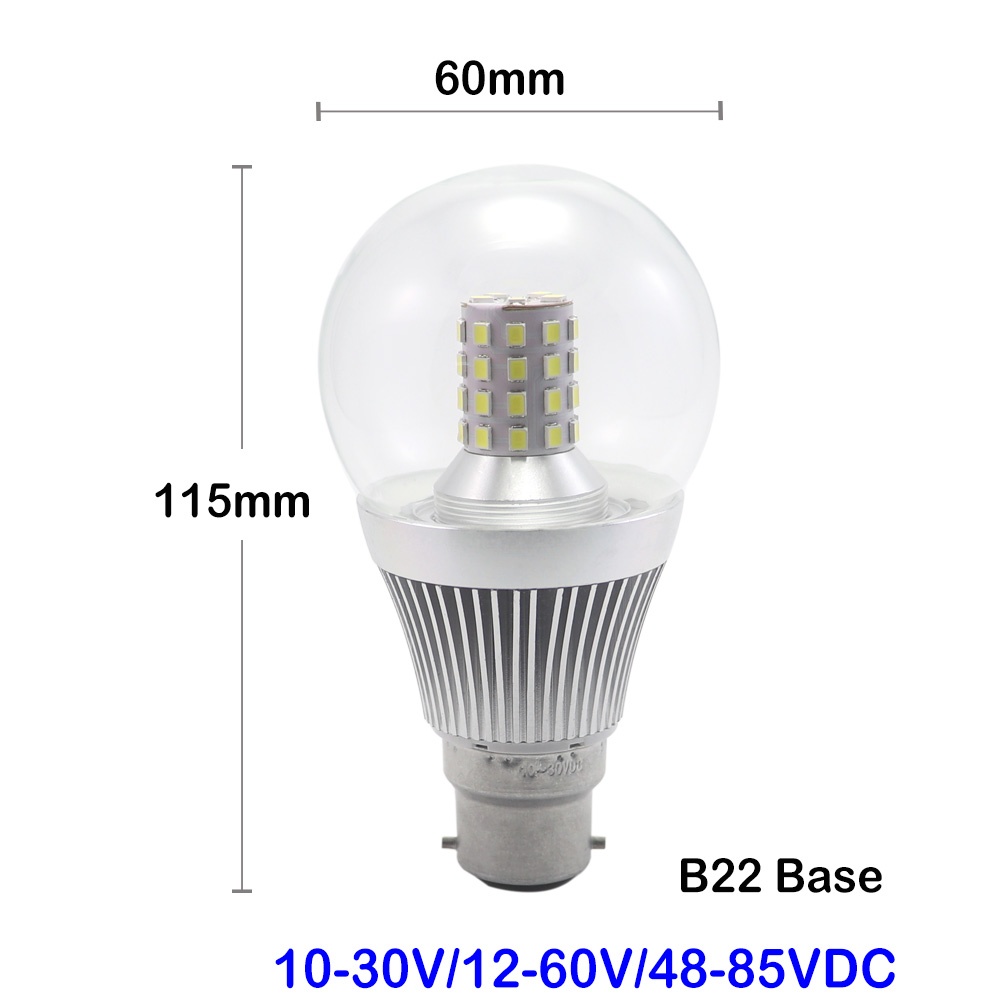

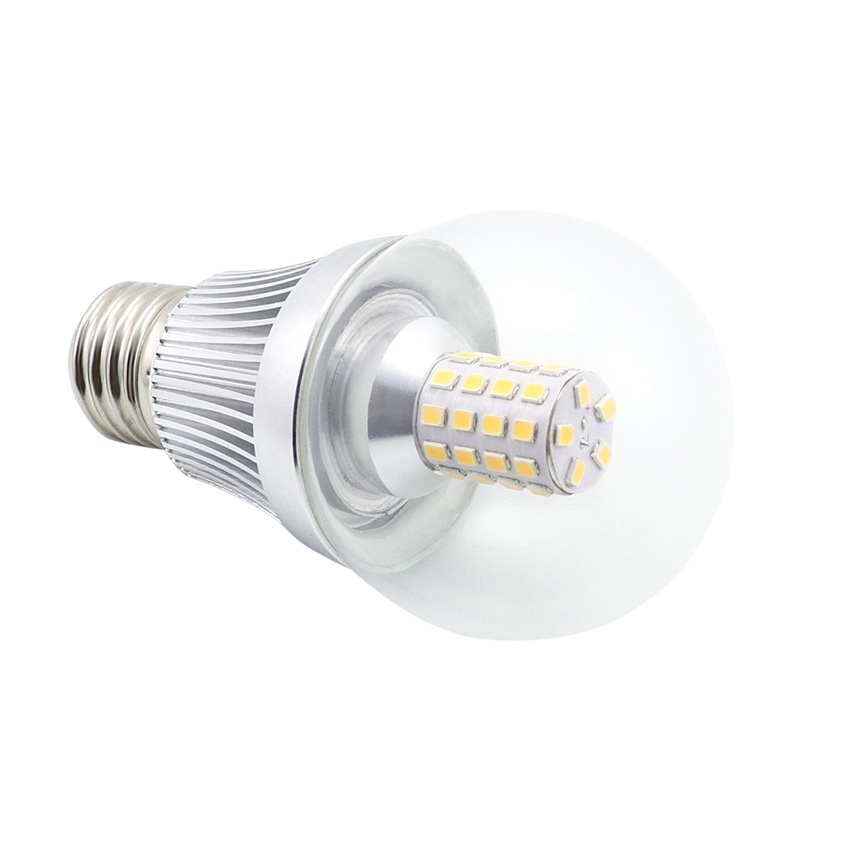

- Base Configurations: E27 standard Edison screw or B22 double-contact bayonet cap.
- Custom Voltage Versions: Factory-tuned DC constant-current boards for discrete 10-36V, 24-48V, 48-80V, or specialized AC low-voltage systems.
- Wavelength & CCT: Specialized UV wavelengths (365nm / 395nm) for bug attraction, 3000K warm white, 4000K neutral white, and 6500K daylight white.
- Wholesale MOQ & Packaging: Standard neutral packaging available from 5 pairs for evaluation. Private-label custom color packaging requires 5,000 pcs packaging run MOQ (pre-funded and drawn down across repeat orders).
Frequently Asked Questions (FAQ)
ABSOLUTELY NOT. This is strictly an industrial low-voltage LED bulb manufactured for 10-36VDC or 48-80VDC power systems. Connecting this bulb to 110V, 120V, 220V, or 230V mains power will instantly burn the internal driver and destroy the unit. Always check your operating circuit voltage prior to installation.
The 10-36VDC version is optimized for 12V and 24V lead-acid or lithium battery systems used in solar off-grid setups, boats, and RV campers. The 48-80VDC version features heavy-duty power components designed to absorb regenerative voltage surges on 48V telecom base stations, data center DC power plants, and high-voltage solar storage battery banks (for stationary telecom & solar storage installations).
The UV-wavelength version utilizes specialized 365nm-395nm SMD chips that emit optical frequencies highly visible to agricultural phototactic pests (mosquitoes, moths, beetles). The 360-degree omni-directional radiation attracts insects from all angles toward the electrified grid for effective chemical-free pest control.
Standard neutral factory packaging is available from 5 pairs for evaluation testing. For private-label custom branding (custom blister card or four-color retail box), the minimum initial packaging print run is 5,000 pieces, which is pre-funded and stored in our warehouse, then drawn down across repeat production batches.
