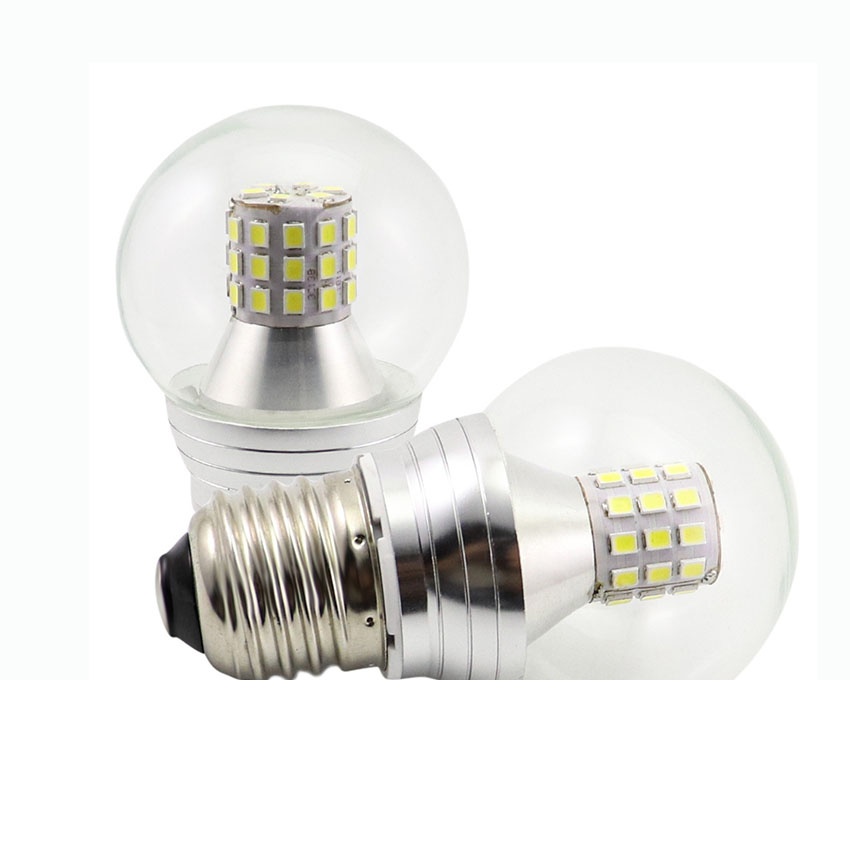

G50 low voltage LED globe bulb 5W 500LM with E27 screw base studio product showcase
<
G50 A50 LED globe bulb standing front perspective with clear glass cover and E27 base
G50 globe LED replacement lamp standing profile with B22 bayonet dual pin base
G50 LED globe lamp horizontal perspective highlighting aviation aluminum collar and glass dome
G50 LED bulb top view showing 39 SMD 2835 radial cylindrical array
G50 LED bulb bottom terminal contact detail with standard E27 screw thread
G50 LED bulb B22 bayonet base bottom terminal view displaying dual parallel locking pins
>
Cross Reference / Direct Replacement
G50 / A50 Globe Retrofit
40W - 50W Incandescent Equiv
G16.5 / G16 Decorative Lamp
E26 / E27 Edison Screw Compatible
B22d Dual-Pin Marine Bayonet
12V - 48V Off-Grid Solar System

G50 / A50 Low Voltage LED Globe Bulb 5W 500LM - E27 / B22 (12V / 24V / 48-80V)

B2B factory G50/A50 low-voltage LED globe bulb (5W, 500LM) featuring 39x SMD 2835 LEDs, 360-degree omnidirectional output, E27/B22 bases, and discrete 6-12V, 10-36V, 48-80V DC options for off-grid solar, marine cabin, desk lamp, and UV inspection.
Product ModelG50-39L35
Socket / BaseE27 Edison Screw Base / B22 Bayonet Double Contact Base
Bulb ProfileStandard G50 Globe / A50 Classic Tear-Drop Silhouette (Φ50mm × 88mm)
Operating Voltage6-12VDC / 10-36VDC / 48-80VDC (Discrete Low-Voltage Architectures)
Power Consumption5.0W (+/-0.2W Continuous-Duty Output)
Luminous Flux500 LM (High-Efficiency 360-Degree Omnidirectional Dispersion)
Color Temperature / Wavelength6500K Xenon White / 3000K Warm White / UV (365nm & 395nm Custom Wavelengths)
LED Emitters39x High-Efficiency SMD 2835 LEDs (Radial Cylindrical Tower Array)
Enclosure / GlobeHigh-Thermal Aviation Aluminum Heat Sink + Optical Clear Glass Dome (Optional Frosted Diffuser)
Primary UsesOff-Grid Solar Battery Systems, Marine Cabin Downlights, Low-Voltage Desk Lamps, UV Inspection & Curing
Quality & WarrantyCE (EMC Compliant), RoHS | 2 Years Factory Warranty
Factory B2B TermsStandard: from 5 pairs | Custom Packaging: Packaging run MOQ 5,000 pcs (pre-funded and drawn down across repeat orders)
Inquire Now Next Product
×
🔍+ 🔍- 100% 💡 Scroll to Zoom | Drag to Move | Double-Click to Reset | Press ESC to Exit
  • Product Details

Engineering Architecture & Low-Voltage Design

The G50-39L35 series is a heavy-duty low-voltage LED globe lamp specifically designed for off-grid direct current (DC) installations where conventional mains voltage (110V/220V) cannot be deployed. Featuring a classic G50/A50 rounded envelope (Φ50mm × 88mm), this bulb delivers 500 lumens of continuous, flicker-free illumination at an ultra-low energy consumption of just 5.0 watts.

The thermal foundation combines an aviation-grade aluminum collar with a robust optical glass dome. An internal radial tower chassis supports 39 precision-binned SMD 2835 LEDs, producing true 360-degree omnidirectional light distribution without dark zones, making it ideal for table fixtures, ceiling fixtures, and marine interior compartments.

Dimensional Blueprints & Illumination Showcase (1 Row × 4 Cards)

Explore our precision engineering blueprints for both E27 and B22 base options alongside real-world lab light distribution and optical beam performance:

G50 LED bulb E27 Edison screw base precision dimensional blueprint D50x88mm

E27 Edison Screw Base

Φ50mm globe diameter × 88mm total height with standardized 27mm Edison screw thread base.

G50 LED bulb B22 bayonet dual pin base precision dimensional blueprint D50x88mm

B22 Bayonet Dual Pin Base

Φ50mm globe diameter × 88mm overall height with 22mm dual parallel locking pin bayonet base.

G50 low-voltage LED bulb benchtop test showing clean 360 degree white light distribution

Omnidirectional Light Beam

Balanced 360-degree radial optical output delivering uniform 500 LM illumination across workspaces.

G50 LED globe lamp laboratory sphere test measuring color rendering and luminous efficiency

Lab Photometric Testing

Integrating sphere verified color consistency (CRI ≥ 80) in 6500K Cool White and 3000K Warm White.

Specialized Low-Voltage Power Domains & Applications

Engineered for extreme reliability, the G50-39L35 provides discrete voltage configurations optimized for distinct industrial and off-grid power ecosystems:

  • 6-12VDC Range: Tailored for portable emergency battery kits, low-voltage inspection desk lamps, and small off-grid setups.
  • 10-36VDC Range: Universal compatibility for 12V and 24V marine boat cabins, living quarters, solar battery banks, and remote telecommunication cabins.
  • 48-80VDC Range: Industrial grade power input suited for telecom base stations, data center emergency backup systems, and specialized high-voltage DC networks.
  • Specialized UV Spectrum: Available in targeted ultraviolet wavelengths for specialized curing, counterfeit detection, and industrial fluorescence inspection.

Frequently Asked Questions

Can this G50 LED bulb be connected to standard 110V or 220V AC household mains power?
NO. This is strictly a low-voltage DC bulb designed for 6-12V, 10-36V, or 48-80V DC power systems. Connecting this bulb directly to standard 110V/220V AC mains electricity will cause immediate electrical damage and voids the warranty. Always verify your circuit voltage before installation.
What is the mechanical difference between the E27 and B22 base options?
E27 is a 27mm Edison screw base where the bulb threads into the socket clockwise. B22 is a 22mm bayonet cap base featuring two opposite locking pins that push and twist into place. Both share the exact same Φ50mm × 88mm glass globe dimensions and internal driver specs.
What off-grid and industrial systems are suitable for the 48-80VDC configuration?
The 48-80VDC version is engineered specifically for stationary industrial applications including -48V telecommunication central offices, mobile base station shelters, off-grid solar energy storage battery rooms, and data center DC backup lighting circuits requiring high-reliability low-voltage globe lamps.
What is the factory minimum order quantity (MOQ) and custom packaging policy?
Standard stock configurations are available from 5 pairs for evaluation and distributor sample testing. For custom branded packaging (such as printed color retail boxes or blister packaging), the printing MOQ is 5,000 units. The client pre-funds the custom packaging, which is warehoused in our Dongguan plant and drawn down across recurring orders.
