Home > Products > E12 E14 LED Bulb > T30 E14 Tubular LED Bulb 5W 500LM | E27 B22 BA15D 100-240V

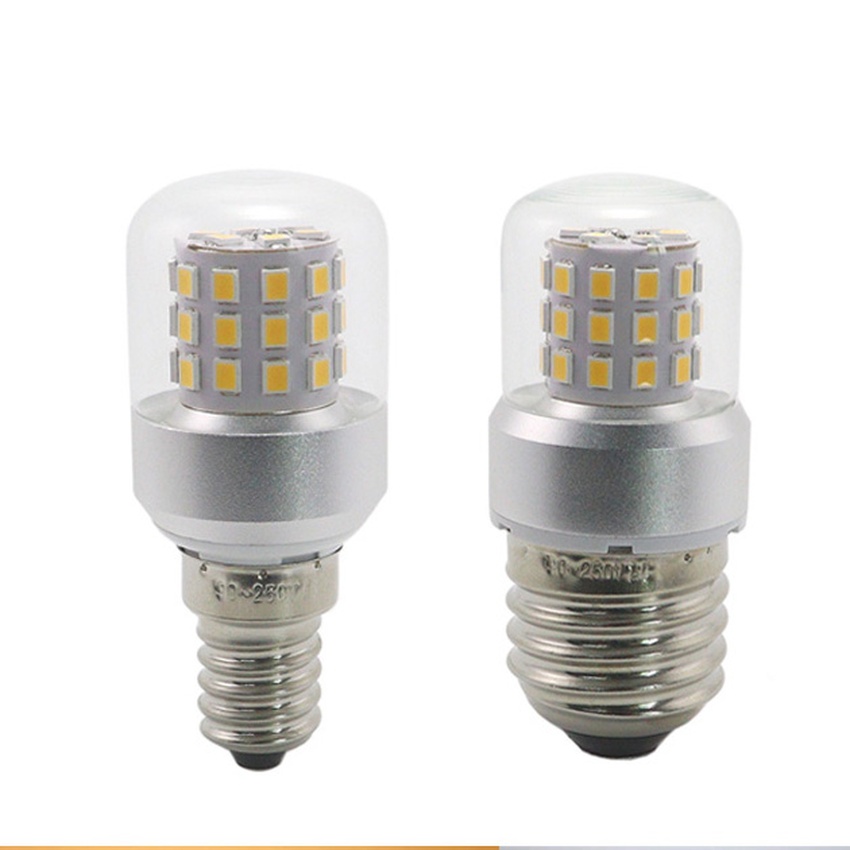

T30 tubular LED appliance replacement bulb 5W 500LM studio showcase
<
T30 tubular LED bulb standing front perspective with E14 base and clear PC dome

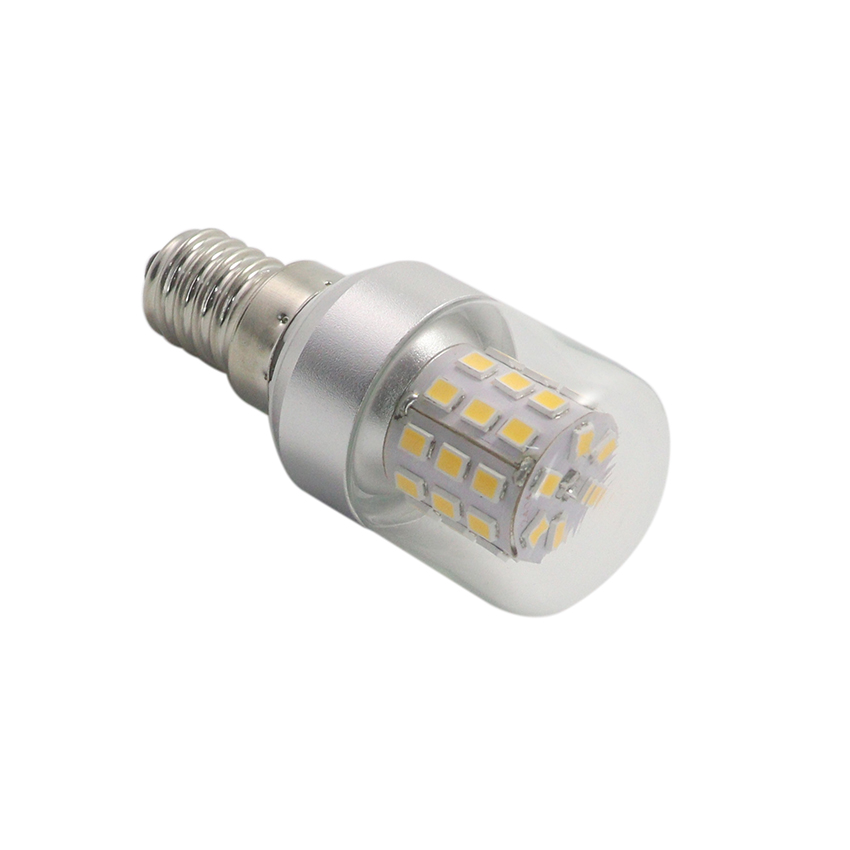

T30 tubular LED replacement lamp standing profile with aluminum heat sink body

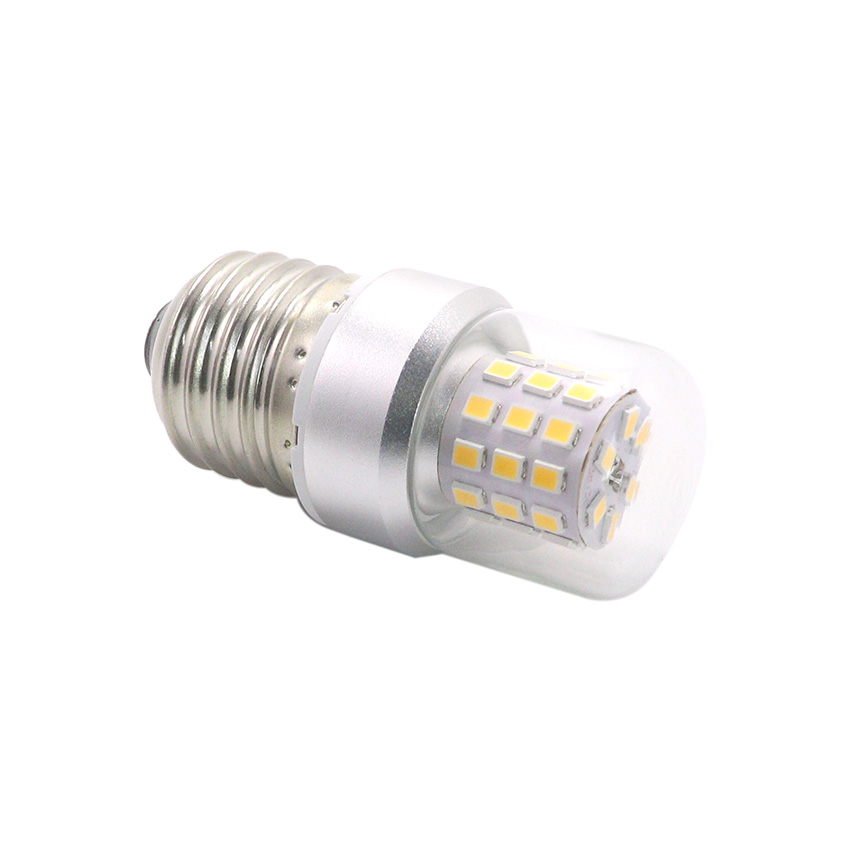

T30 LED appliance bulb illuminated showing 360-degree cylindrical light dispersion

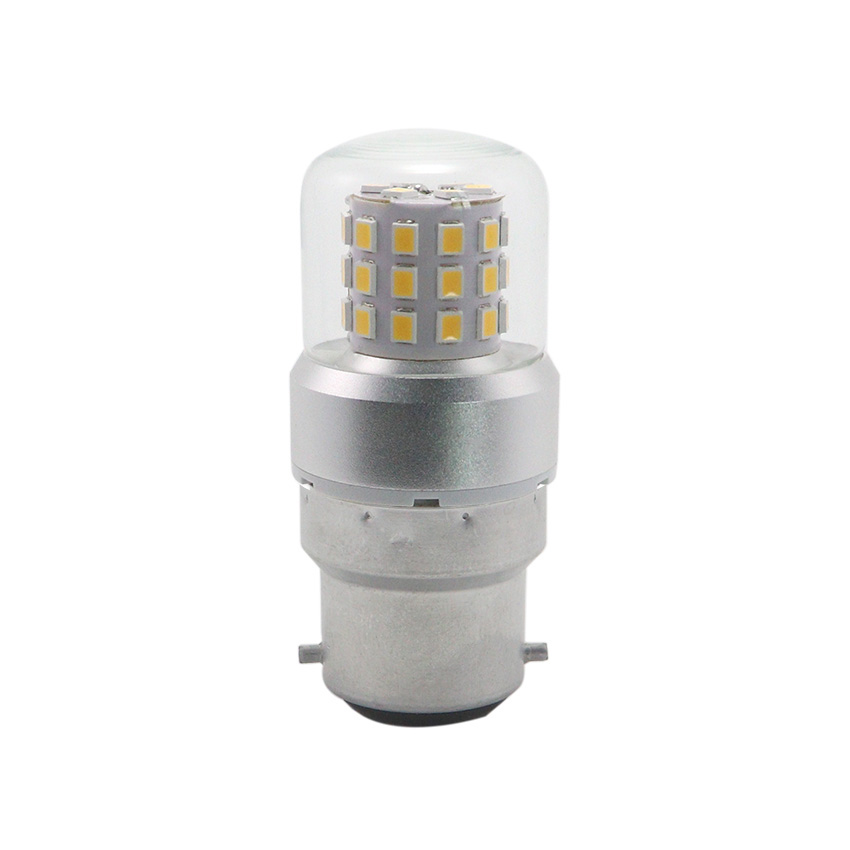

T30 LED tubular lamp internal 39 SMD 2835 radial emitter array and aluminum core
>
Cross Reference / Direct Replacement
40W E14 / E27 Incandescent
50W Halogen Appliance Bulb
T30 Tubular Retrofit Lamp
E14 Refrigerator & Fridge Lamp
B22 / BA15D Appliance Fixture
100-240V Universal Mains Light

T30 Tubular Appliance LED Bulb 5W 500LM - E14 / E27 / B22 / BA15D (100-240V) | T30-E14-39L

Factory-direct T30 tubular LED appliance bulb 5W 500LM replacing 40W-50W incandescent lamps. Features Φ27x66mm compact envelope with E14, E27, B22, and BA15D base options and 100-240VDC-AC input.
Product Model: T30-E14-39L
Socket / Base: E14 / E27 / B22 / BA15D Multi-Base Options
Bulb Dimensions: Φ27mm - Φ30mm Diameter × 66mm Length (T27 / T30 Tubular Profile)
Operating Voltage: 100-240VDC-AC (Universal Worldwide Compatibility)
Power Consumption: 5.0W High-Output (40W - 50W Incandescent Equivalent)
Luminous Flux: 500 LM (360° Omnidirectional Uniform Distribution)
Color Temperature: 6500K Xenon White / 3000K Warm White / 4500K Neutral White
LED Emitters: 39× SMD 2835 LEDs (Ra ≥ 80 High Color Rendering Index)
Enclosure / Body: Aviation Aluminum Heat Sink Core + Optical Polycarbonate (PC) Dome
Primary Uses: Domestic Refrigerators, Microwave Range Hoods, Extractor Fans, Showcases
Quality & Warranty: CE (EMC Compliant), RoHS | 2 Years Factory Warranty
Factory B2B Terms: Standard: from 5 pairs | Custom Packaging: Packaging run MOQ 5,000 pcs (pre-funded and drawn down across repeat orders)
Inquire Now Next Product
×
🔍+ 🔍- 100% 💡 Scroll to Zoom | Drag to Move | Double-Click to Reset | Press ESC to Exit
  • Product Details

Market Positioning & High-Output Appliance Applications

The T30-E14-39L is a higher-output, commercial-grade tubular LED specialty bulb designed for demanding appliance applications where compact dimensions must be paired with high luminous efficacy. Generating a punchy 500 lumens at just 5.0W power consumption, it directly replaces traditional 40W to 50W heat-generating incandescent and halogen appliance bulbs, cutting energy consumption by up to 90% while keeping interior compartments cool.

With a standardized slim cylindrical envelope of Φ27mm in outer diameter and 66mm in length, it solves the acute physical interference problems commonly encountered in high-end domestic and commercial appliances:

  • Kitchen Extractor Hoods & Over-The-Range Microwaves: Withstands heavy steam, oil vapor, and continuous cooking vibrations while casting brilliant daylight illumination over cooktop working zones.
  • Large Capacity Refrigerators & Freezers: Fits recessed glass-shielded light channels in double-door French refrigerators, upright commercial freezers, and beverage display chillers without creating hotspots.
  • Industrial Sewing & Textile Equipment: Provides non-flickering, Ra ≥ 80 high-fidelity illumination directly over high-speed needle zones and precision worktables.
  • Commercial Showcase & Bakery Displays: Emits pure 500 LM light without harmful infrared heat radiation, protecting refrigerated pastries, meats, and fresh produce from heat spoilage.

Dual-Base Flexibility & Aviation Aluminum Thermal Architecture

To dissipate heat efficiently during continuous 5W operation, the T30-E14-39L features an integrated aviation aluminum core heat sink that directly conducts heat away from the 39 radial SMD 2835 LEDs. The robust clear optical polycarbonate (PC) outer dome protects the electrical emitters from kitchen grease, water splashes, and physical contact.

Available with four standardized base configurations, OEMs and facility managers can deploy this single high-output platform across diverse legacy and modern fixtures worldwide: E14 Small Edison Screw, E27 Medium Edison Screw, B22 Dual-Pin Bayonet, and BA15D Parallel-Pin Double-Contact Base.

Dimensional Specifications Across 4 Base Options

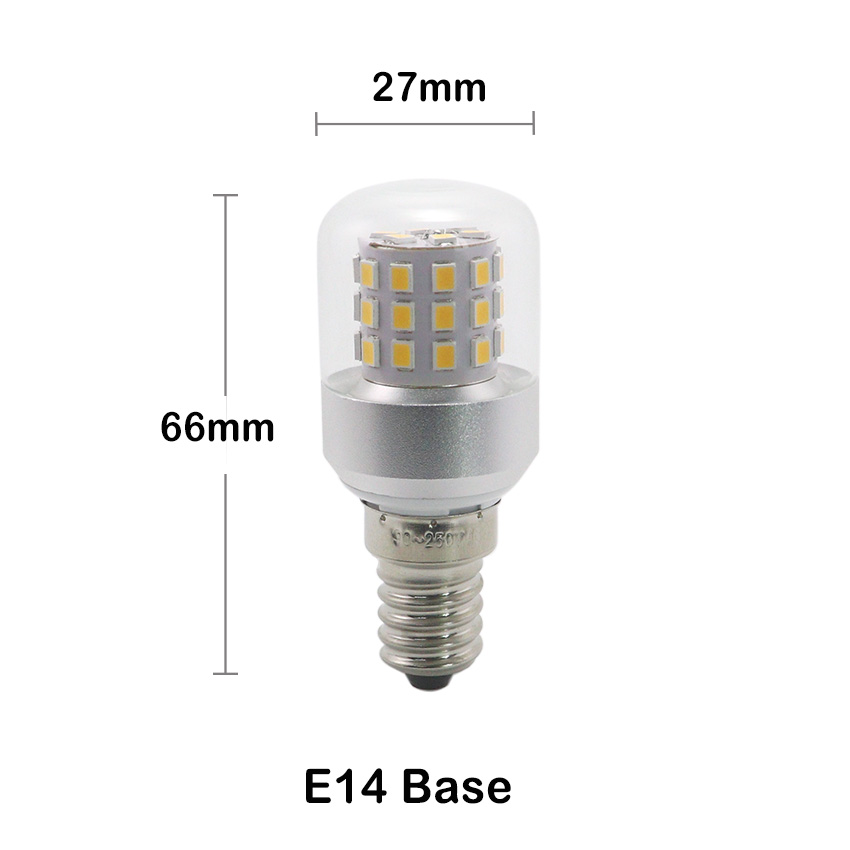

T30 E14 LED bulb dimensional blueprint showing D27x66mm with E14 small Edison screw

E14 Small Edison Base

Φ27mm × 66mm overall profile for standard European appliance sockets.

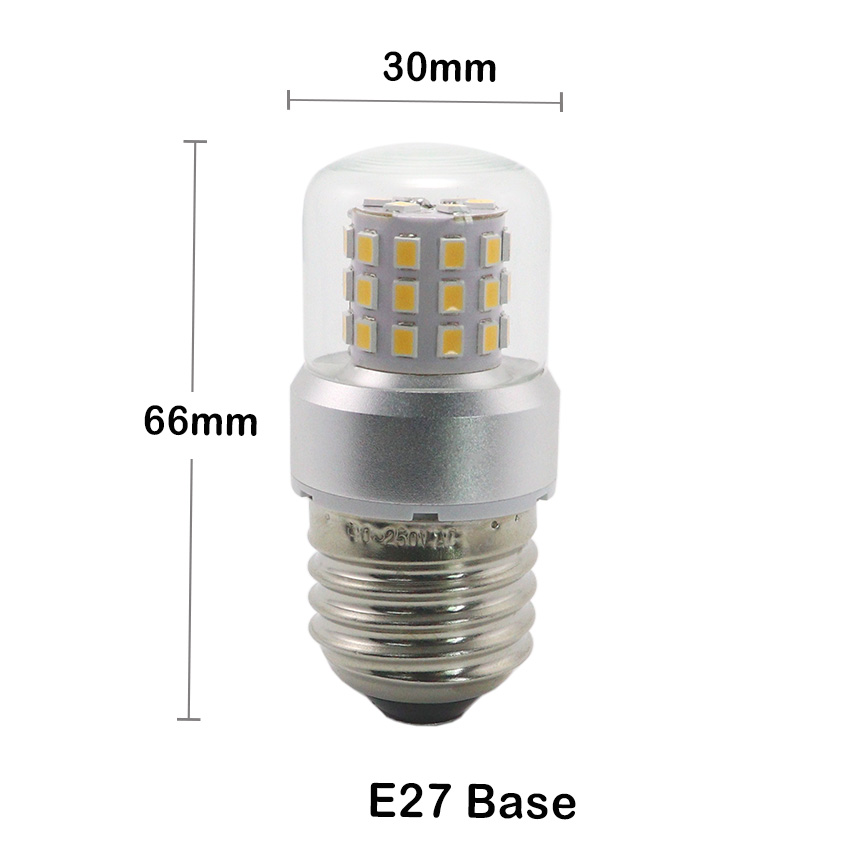

T30 E27 LED bulb dimensional blueprint showing D27x66mm with E27 medium Edison screw

E27 Medium Screw Base

Φ30mm × 66mm profile for standard full-size domestic appliance fittings.

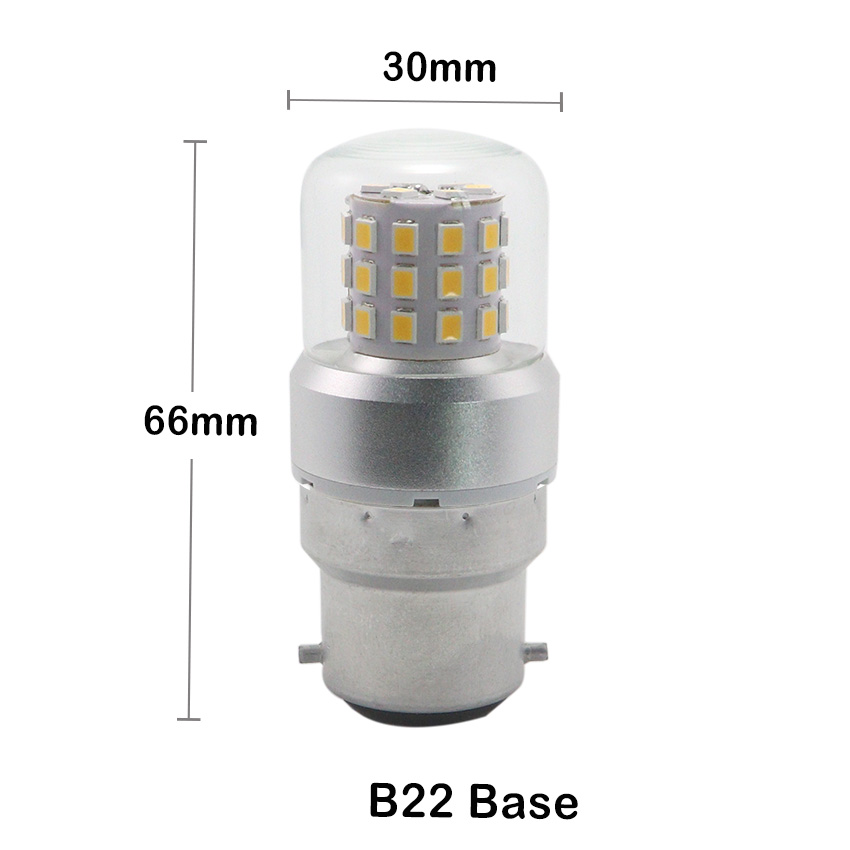

T30 B22 LED bulb dimensional blueprint showing D27x66mm with B22 dual locking pins

B22 Bayonet Dual Pin

Φ30mm × 66mm profile for British, Australian, and marine bayonet fittings.

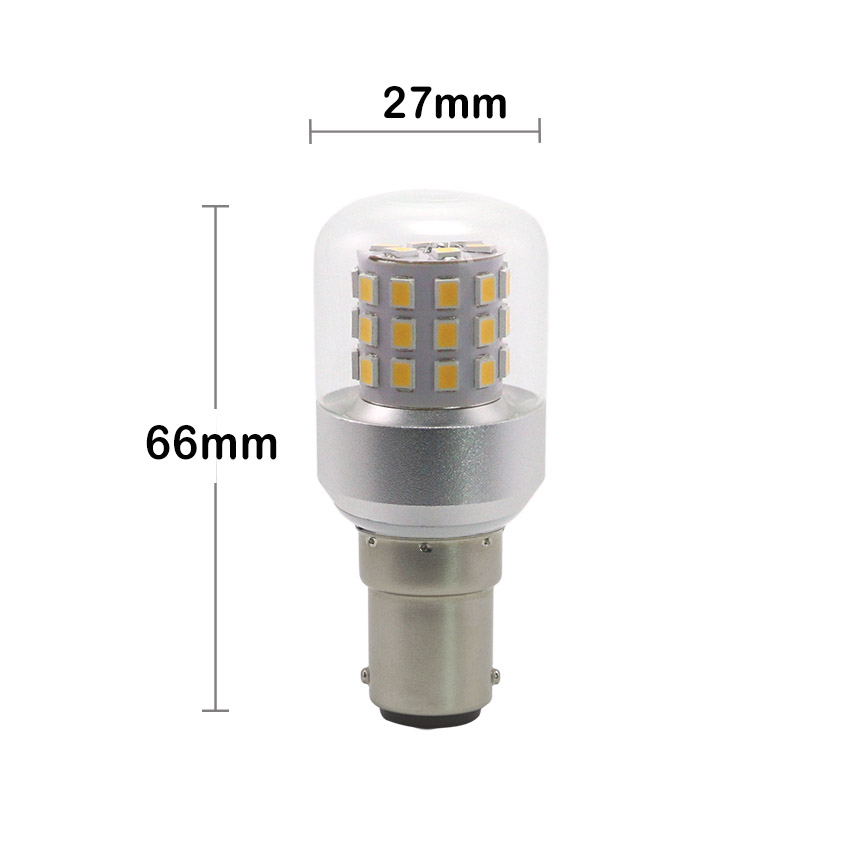

T30 BA15D LED bulb dimensional blueprint showing D27x66mm with BA15D dual contact base

BA15D Dual Contact Base

Φ27mm × 66mm profile for industrial sewing and machinery indicator sockets.

Photometric Uniformity & Optical Clarity

The 39 radial SMD 2835 LEDs provide complete 360-degree optical coverage without directional dark spots. The high CRI (Ra ≥ 80) ensures crystal-clear visibility, natural food color rendering in kitchen appliances, and fatigue-free illumination for precision workstation operators.

Frequently Asked Questions

Why is 5W output significant for tubular appliance LED bulbs?
Most miniature appliance LED bulbs produce only 1W to 2W (80-160 lumens), which is sufficient for small freezer compartments but inadequate for over-the-range microwave cooktop lights, kitchen range hoods, and large commercial display refrigerators. Delivering a genuine 500 lumens at 5.0W, the T30-E14-39L provides full 40W-50W incandescent equivalent brightness without dangerous heat accumulation.
Which base options are interchangeable and how do I select the right one?
Our factory manufactures the T30-39L platform across four distinct base fittings: E14 (14mm European small screw), E27 (27mm standard Edison screw), B22 (22mm British bayonet dual pin), and BA15D (15mm double-contact parallel pin). All variants share the identical Φ27mm optical head and 5W driver architecture, allowing OEM brands to offer a unified aesthetic across different international regional standards.
Can this bulb operate under continuous cooking heat and high vibration in range hoods?
Yes. The internal aviation aluminum core efficiently draws heat away from the LED semiconductors and dissipates it through the base. Furthermore, the solid-state SMD 2835 emitters and durable polycarbonate dome eliminate fragile tungsten filaments and glass envelopes, making it immune to continuous motor vibration from kitchen exhaust blowers.
What is the minimum order quantity (MOQ) and packaging policy for wholesale export?
Standard stock configurations are available with a sample trial MOQ from 5 pairs. For customized retail packaging (blister cards, double blister, or bespoke branded color boxes), our packaging print run MOQ is 5,000 pcs. The client pre-funds the custom packaging batch, which is safely stored in our warehouse and drawn down across rolling repeat production orders.
