OEM Project Showcase & Custom Engineering Background

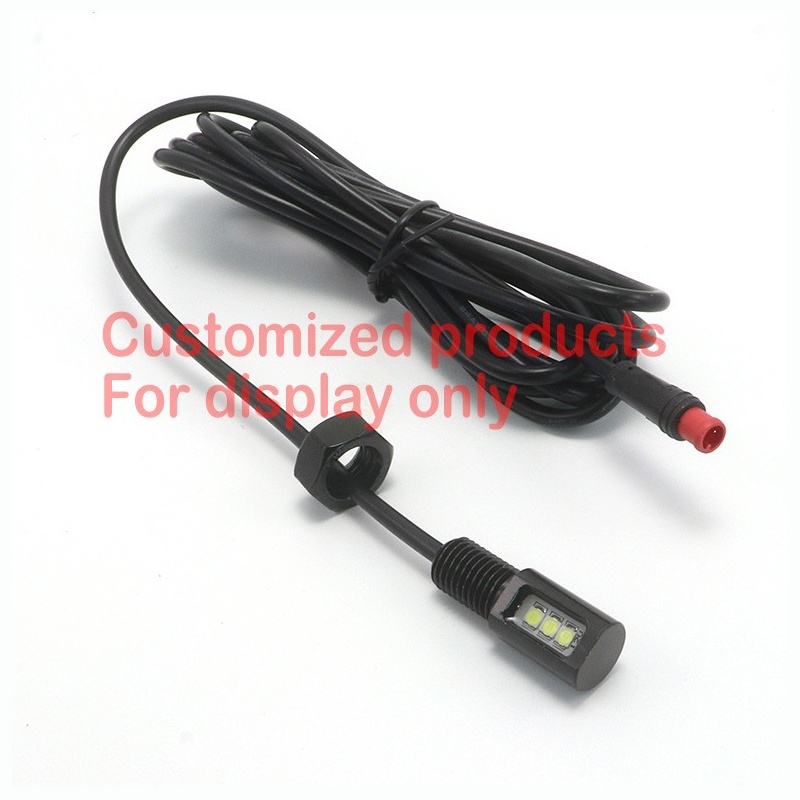

The MIDCARS Custom Bolt-On Miniature LED Light (ZS-BOLT-3L) represents our specialized OEM/ODM contract manufacturing capabilities for exterior automotive and motorcycle auxiliary lighting. Engineered to meet client-specific mounting constraints and harsh environmental requirements, this assembly integrates a compact threaded stud body with a lateral optical window and a 1-meter submersible-grade wire harness terminated with a quick-disconnect sealed waterproof connector.
Notice: This product is an exclusive client project showcase displayed solely to demonstrate our custom manufacturing and tooling capabilities. To protect proprietary client designs under non-disclosure agreements (NDA), specific proprietary dimensions and internal circuitry are confidential. MIDCARS offers custom tooling, electrical engineering, and harness assembly for new client-commissioned projects.
Customizable Engineering Dimensions & Specifications
As a direct LED automotive lighting manufacturer, MIDCARS tailors every structural and electrical aspect to match your project bill of materials (BOM):
1. Mechanical & Thread Sizing
Threaded stud length, bolt diameter (M6, M8, M10, or UNC threads), and hex locknut dimensions tailored to fit various bumper, fender, or bracket mounting thicknesses.
2. Operating Voltage & Circuitry
Internal constant-current regulation configurable for 6V vintage systems, 12V automotive circuits, or 24VDC heavy-vehicle electrical platforms with surge suppression.
3. Optical & Color Configuration
Available in 6500K Xenon White (license plate illumination), 3000K Warm White, Brilliant Red (rear marker / brake auxiliary), and Amber Yellow (turn indicator).
4. Harness Length & Waterproofing
Standard 1-meter cable or customized lengths (from 30cm to 3m). Terminations available with sealed quick-disconnect plugs, pin terminals, or tinned bare leads.
Industrial Sealing & Harsh Environment Reliability
To ensure zero field failures under exposed automotive road spray and off-road vibration, the bolt-on miniature light undergoes rigorous environmental protection:
- Full Solid-State Encapsulation: The internal PCB and solder joints are 100% potted with automotive-grade optical epoxy resin, providing complete IP67/IP68 ingress protection against high-pressure washdowns and road salt immersion.
- Corrosion-Resistant Metal Housing: CNC-machined metal housing finished with protective black anodizing to prevent galvanic corrosion when fastened against steel or aluminum vehicle panels.
- Vibration-Proof Stud Mounting: The threaded stud and matching hex nut provide positive mechanical retention that will not loosen under heavy engine or terrain vibration.
OEM / ODM Collaboration & Production Workflow
MIDCARS provides complete turnkey manufacturing support from preliminary sketch to container shipment:
- Requirements & Technical Alignment: Share your mechanical constraints, target voltage, wire length, and connector interface.
- Rapid Prototyping & Tooling: Fast-turnaround 3D CAD modeling, CNC sample machining, and electrical verification samples delivered in 7–14 days.
- Environmental & Life Testing: Salt spray corrosion testing, IP67 waterproof chamber testing, and 100% burn-in aging prior to production approval.
- Scalable Mass Manufacturing: In-house SMT assembly, automated cable cutting/crimping, and ultrasonic/epoxy sealing backed by our 2-year warranty.
Strict B2B Policy & Confidentiality Guarantee
We strictly enforce client intellectual property protection. Dedicated custom tooling, proprietary housing profiles, and client-specific mold inserts are never sold or shared with third-party buyers. Contact our engineering sales team to initiate a confidential OEM/ODM inquiry.
