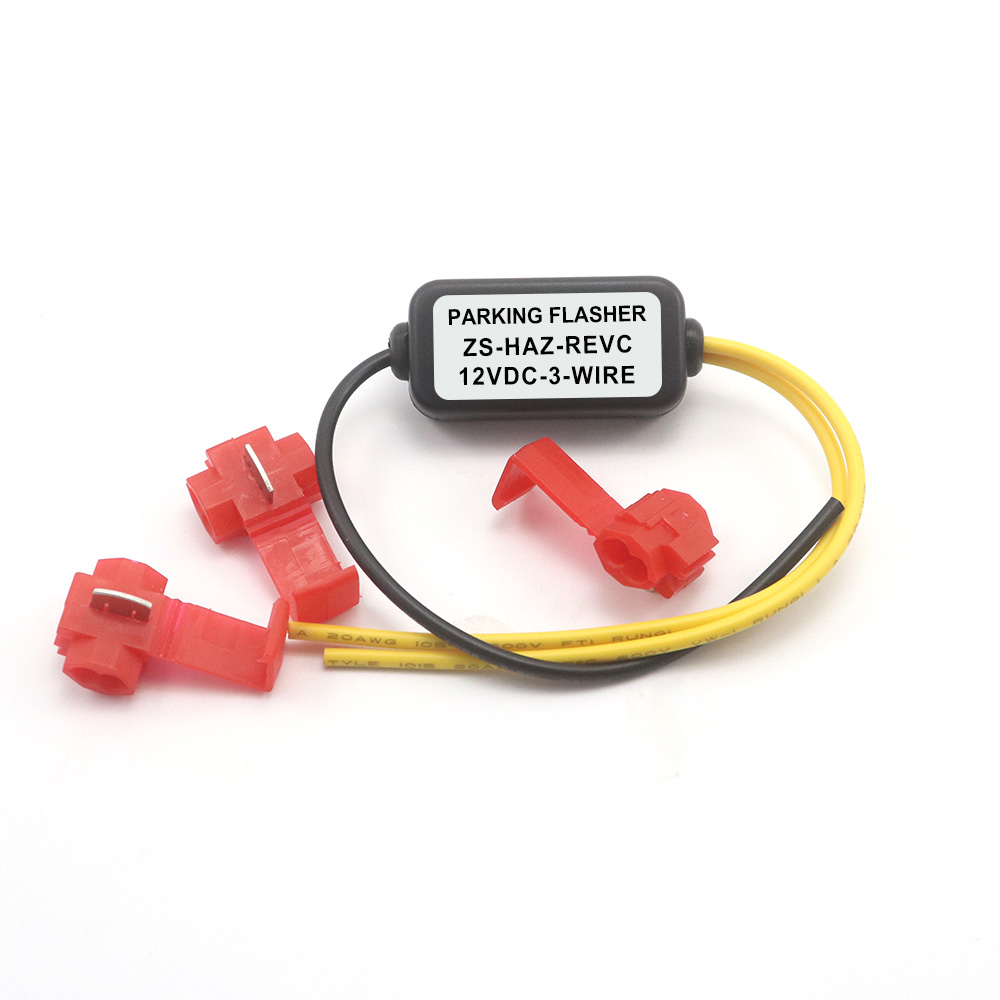

Product Overview: ZS-HAZ-REVC Parking Flasher Controller
The MIDCARS ZS-HAZ-REVC is a universal parking flasher controller that adds a 4-way hazard (double flash) function to your motorcycle LED turn signals — without cutting a single wire. Switch left then right (or right then left) within 1 second and all 4 turn signal lamps flash together; press the center cancel button to stop.

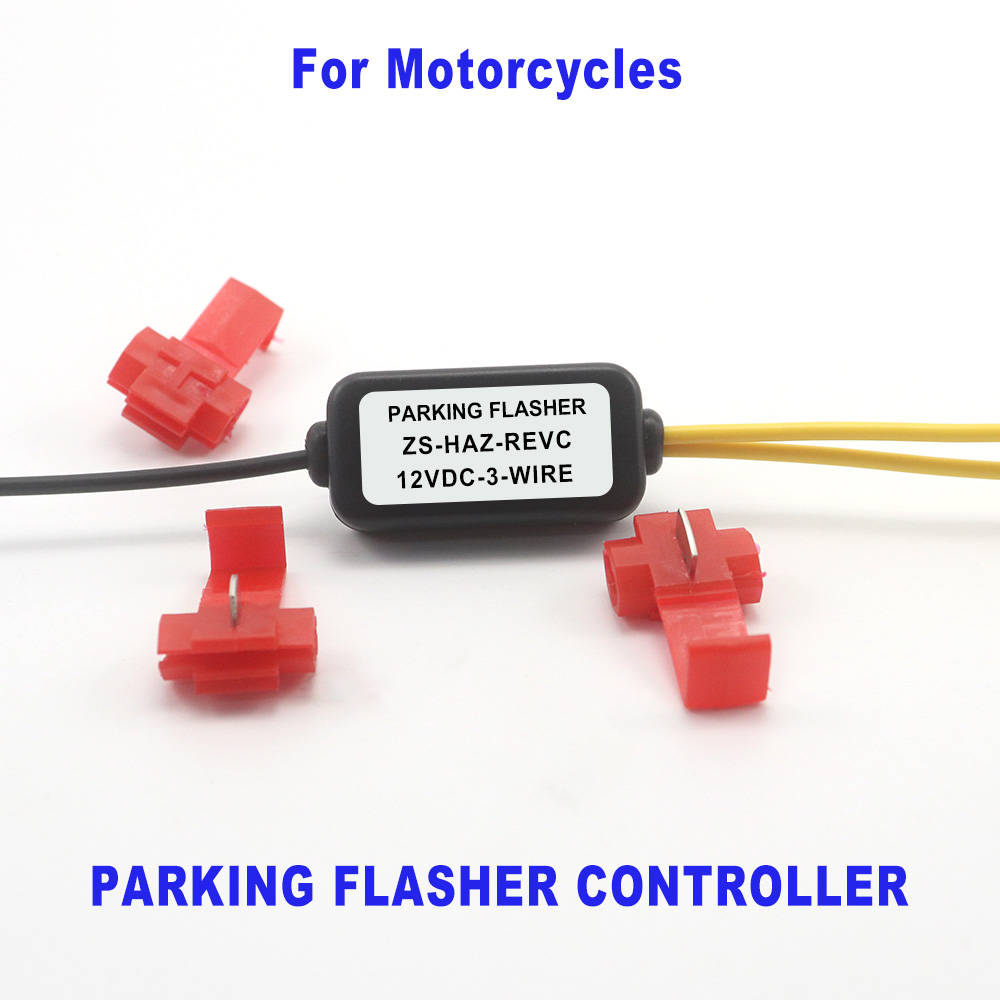

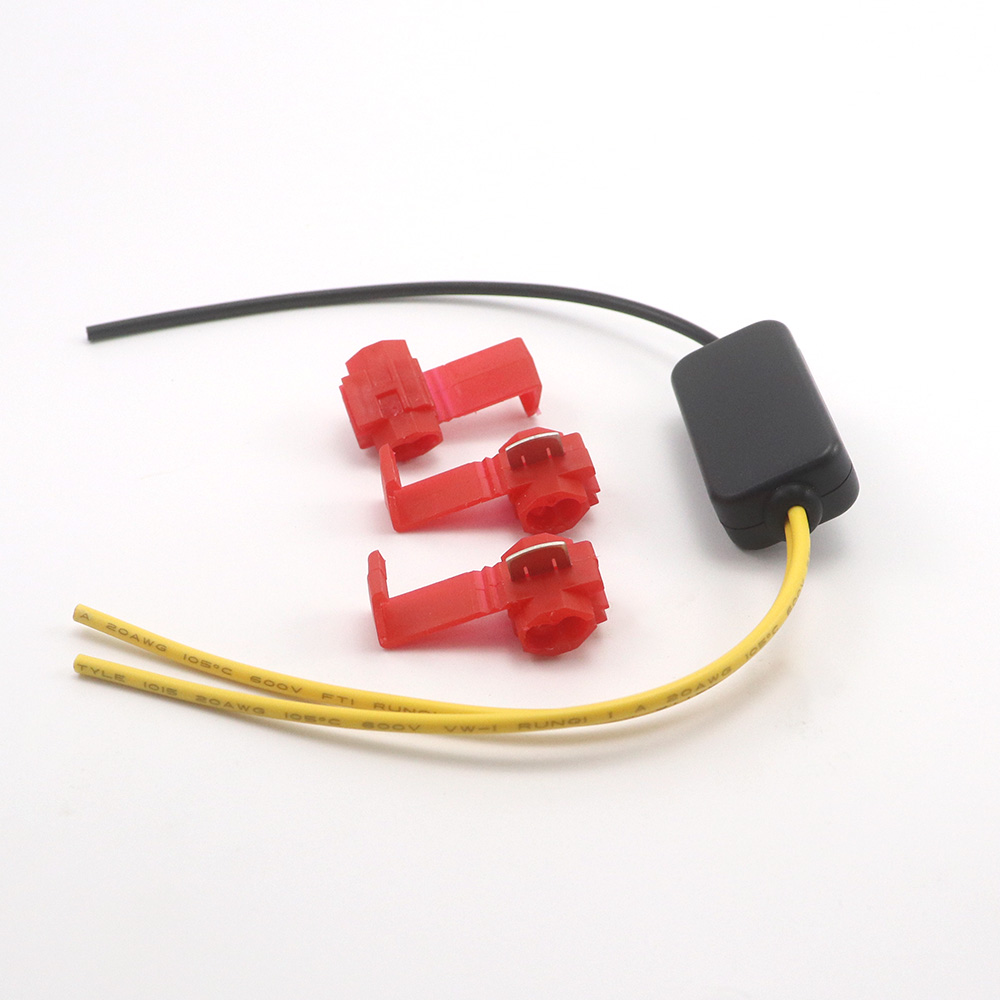

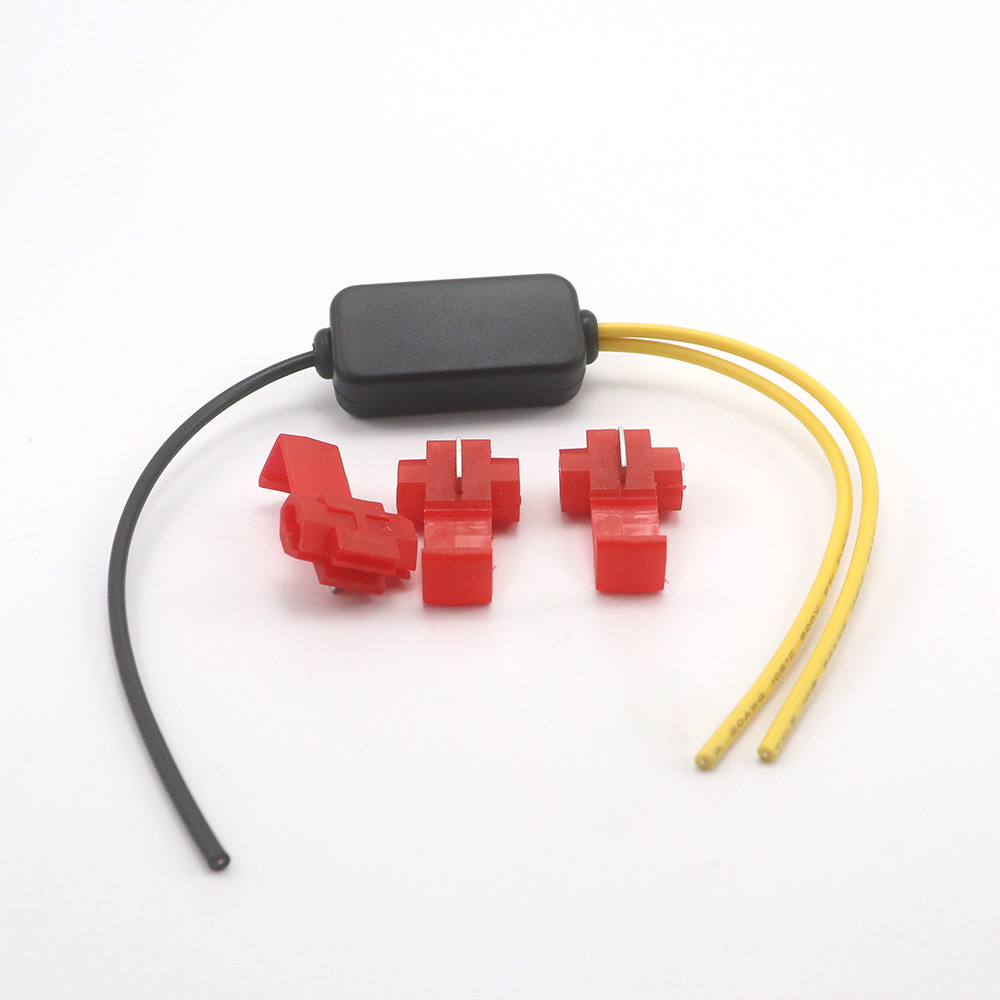

Fully non-polarity (both yellow wires are interchangeable), zero standby drain (0 mA), and IP67 waterproof thanks to epoxy resin potting. Compact 43 × 22 × 12 mm body with a 3-wire harness and red T-tap connectors.

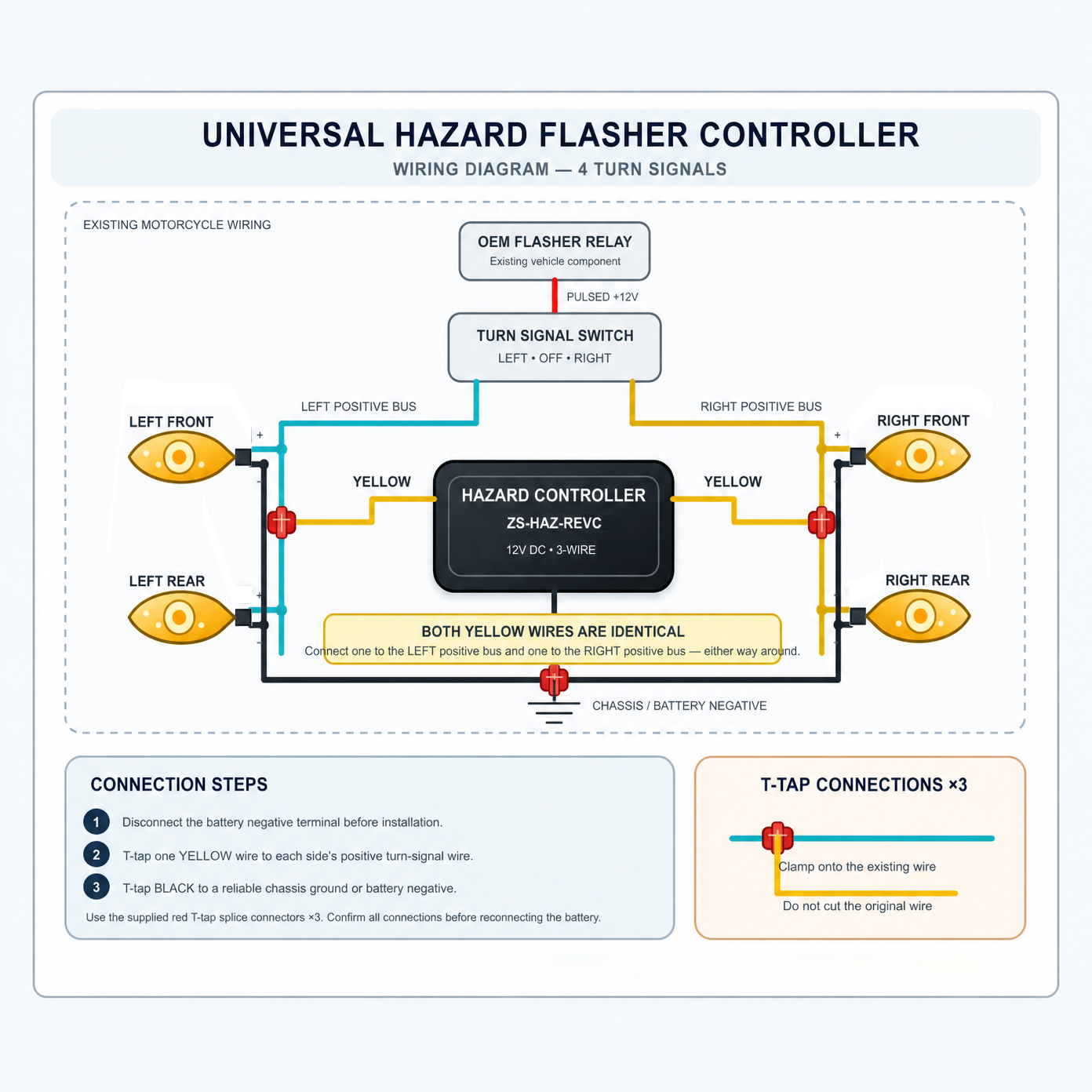

Easy 3-Wire Installation (No Wire Cutting)
Two yellow wires go to the left and right turn signal positives (either way around), one black wire to ground. Red T-tap connectors snap onto the existing wires in minutes:
- Yellow → Left turn signal (+)
- Yellow → Right turn signal (+)
- Black → Ground / battery (−)
How to Operate
- Turn ON hazard: switch LEFT → RIGHT (or RIGHT → LEFT) within 1.0 second — all 4 indicators flash together
- Turn OFF: press the center cancel button (auto-resets in 1–2s)
- Normal use: factory turn signals work exactly as before
Key Features & Typical Applications
- Non-polarity design — no wrong way to wire
- Zero standby drain (0 mA when off)
- IP67 waterproof — epoxy resin potting
- Supports LED turn signal lamps up to 4 × 12W
Applications: motorcycles, scooters, ATVs, UTVs with LED turn signals.
